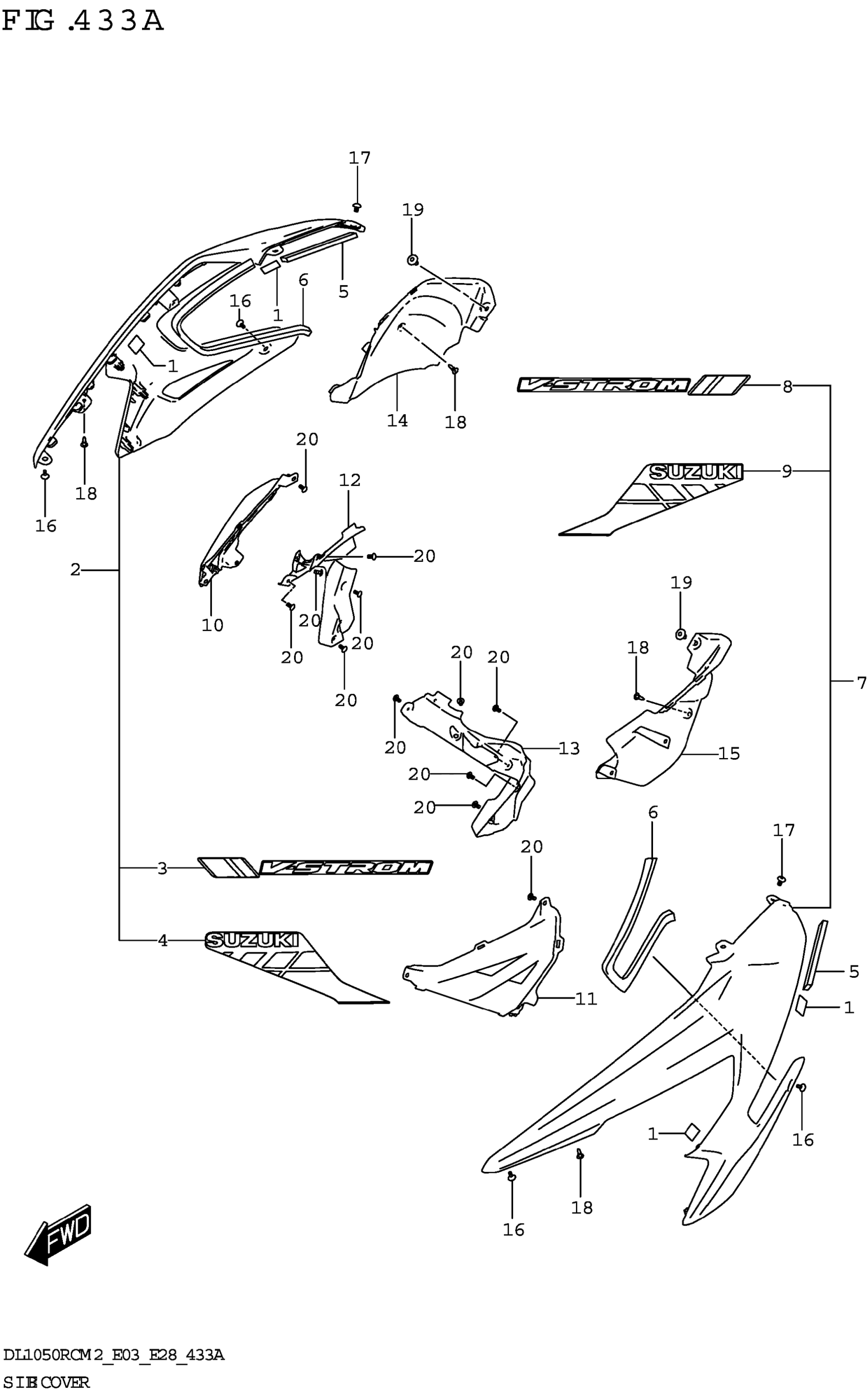

Suzuki DL1050RCM2 (2022) SIDE COVER (DL1050RC) Diagram

#

Description
Price

1

.FASTENER (33X25) | )

44572-13G10

$17.38

2-1

COVER,SIDE RH (BLACK) | BODY COLOR:YVB

94420-06L00-6UX

$240.15

2-2

COVER,SIDE RH (ORANGE) | BODY COLOR:B1F

94420-06L00-QRE

$256.37

2-3

COVER,SIDE RH (GRAY) | FOR BD7 BODY COLOR:BD7

94420-06L00-QEB

$240.15

2-4

COVER,SIDE RH (YELLOW) | FOR BT1 BODY COLOR:BT1

94420-06L00-ZFX

$240.15

3-1

.EMBLEM,SIDE COVER RH (YELLOW | GRAY,BLACK) BODY COLOR:YVB

68271-06L00-B8Z

$23.45

3-2

.EMBLEM,SIDE COVER RH (GRAY,B | ACK,WHITE,ORANGE) BODY COLOR:B1F

68271-06L00-B4M

$24.33

3-3

.EMBLEM,SIDE COVER RH (BLUE,B | ACK,GRAY) FOR BD7 BODY COLOR:BD7

68271-06L00-B81

$23.45

3-4

.EMBLEM,SIDE COVER RH (BLUE,G | AY,BLACK,YELLOW) FOR BT1 BODY COLOR:BT1

68271-06L00-B82

$23.45

4-1

.TAPE,COVER SIDE RH (YELLOW,G | AY,BLACK) BODY COLOR:YVB

68275-06L00-B8Z

$50.20

4-2

.TAPE,COVER SIDE RH (GRAY,BLA | K,WHITE,ORANGE) BODY COLOR:B1F

68275-06L00-B4M

$55.87

4-3

.TAPE,COVER SIDE RH (BLUE,BLA | K,GRAY) FOR BD7 BODY COLOR:BD7

68275-06L00-B81

$50.20

4-4

.TAPE,COVER SIDE RH (BLUE,GRA | ,BLACK,YELLOW) FOR BT1 BODY COLOR:BT1

68275-06L00-B82

$50.20

5

CUSHION,SIDE COVER NO.1

94425-06L00

$6.82

6

CUSHION,SIDE COVER NO.2

94426-06L00

$8.21

7-1

COVER,SIDE LH (BLACK) | BODY COLOR:YVB

94430-06L00-6UX

$246.97

7-2

COVER,SIDE LH (ORANGE) | BODY COLOR:B1F

94430-06L00-QRE

$263.65

7-3

COVER,SIDE LH (GRAY) | FOR BD7 BODY COLOR:BD7

94430-06L00-QEB

$246.97

7-4

COVER,SIDE LH (YELLOW) | FOR BT1 BODY COLOR:BT1

94430-06L00-ZFX

$246.97

8-1

.EMBLEM,SIDE COVER LH (YELLOW | GRAY,BLACK) BODY COLOR:YVB

68281-06L00-B8Z

$23.45

8-2

.EMBLEM,SIDE COVER LH (GRAY,B | ACK,WHITE,ORANGE) BODY COLOR:B1F

68281-06L00-B4M

$24.33

8-3

.EMBLEM,SIDE COVER LH (BLUE,B | ACK,GRAY) FOR BD7 BODY COLOR:BD7

68281-06L00-B81

$23.45

8-4

.EMBLEM,SIDE COVER LH (BLUE,G | AY,BLACK,YELLOW) FOR BT1 BODY COLOR:BT1

68281-06L00-B82

$23.45

9-1

.TAPE,COVER SIDE (YELLOW,GRAY | BLACK) BODY COLOR:YVB

68285-06L00-B8Z

$50.20

9-2

.TAPE,COVER SIDE LH (GRAY,BLA | K,WHITE,ORANGE) BODY COLOR:B1F

68285-06L00-B4M

$55.87

9-3

.TAPE,COVER SIDE (BLUE,BLACK, | RAY) FOR BD7 BODY COLOR:BD7

68285-06L00-B81

$50.20

9-4

.TAPE,COVER SIDE (BLUE,GRAY,B | ACK,YELLOW) FOR BT1 BODY COLOR:BT1

68285-06L00-B82

$50.20

10

COVER,SIDE NO.2 RH

94441-06L00

$33.87

11

COVER,SIDE NO.2 LH

94451-06L00

$36.56

12

COVER,SIDE INNER LWR RH

94463-06L00

$50.92

13

COVER,SIDE INNER LWR LH

94464-06L00

$50.92

14

COVER,SIDE INNER UPR RH

94471-06L00

$24.42

15

COVER,SIDE INNER UPR LH

94481-06L00

$24.42

16

SCREW (5X13)

09139-05091

$2.01

17

SCREW (6X10)

09139-06172

$2.80

18

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

19

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

20

SCREW

03541-0512B

$1.77
