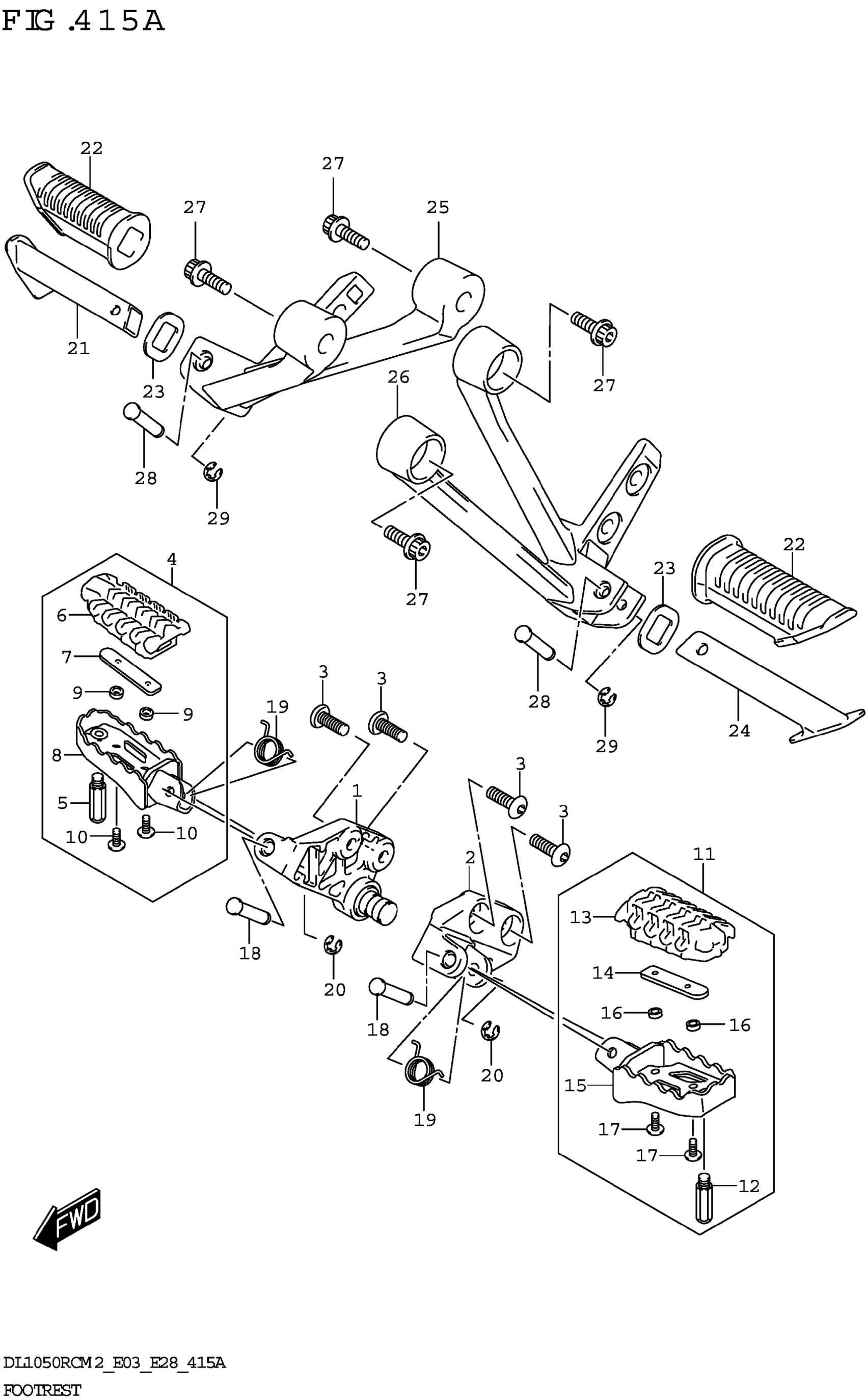

Suzuki DL1050RCM2 (2022) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST RH (BLACK

43510-06G10-YAP

$89.14

2

BRACKET,FR FOOTREST,L (BLACK) This part replaces 43521-06G10-YAP.

43521-06G11-YAP

$44.94

3

BOLT (8X23)

09106-08200

$2.34

4

FOOTREST ASSY,FRONT RH

43501-06L00

$196.52

5

BOLT,BANK SENSOR

43576-48B40

$10.39

6

.RUBBER,FR FOOTREST

43551-06L00

$23.22

7

.PLATE,FR FOOTREST RUBBER

43552-06L00

$11.85

8

.BAR,FRONT FOOTREST RH

43530-06L00

$145.60

9

.SPACER,FR FOOTREST RUBBER

47512-28K00

$4.17

10

BOLT

07120-0512A

$2.29

11

FOOTREST ASSY,FRONT LH

43502-06L00

$151.22

12

BOLT,BANK SENSOR

43576-48B40

$10.39

13

.RUBBER,FR FOOTREST

43551-06L00

$23.22

14

.PLATE,FR FOOTREST RUBBER

43552-06L00

$11.85

15

.BAR,FRONT FOOTREST LH

43540-06L00

$145.60

16

.SPACER,FR FOOTREST RUBBER

47512-28K00

$4.17

17

BOLT

07120-0512A

$2.29

18

PIN,FRONT FOOTREST

09208-08023

$2.80

19

SPRING,FRONT FOOTREST

09448-18037

$5.30

20

E-RING

08332-1106B

$1.98

21

BAR, PILLION FOOTREST RH

43610-34A60

$73.87

22

RUBBER, PILLION FOOTREST

43612-33G30

$7.68

23

WASHER,FOOTREST RUBBER

43631-34A01

$4.26

24

BAR, PILLION FOOTREST LH

43710-34A60

$70.48

25

BRKT,PILLION FOOTREST RH (BLA | K)

43811-31J00-YAP

$157.05

26

BRKT,PILLION FOOTREST LH (BLA | K)

43821-31J00-YAP

$157.05

27

BOLT (8X30)

09106-08131

$4.53

28

PIN,PILLION FOOTREST

09208-06010

$2.75

29

E-RING

08332-1104B

$1.80
