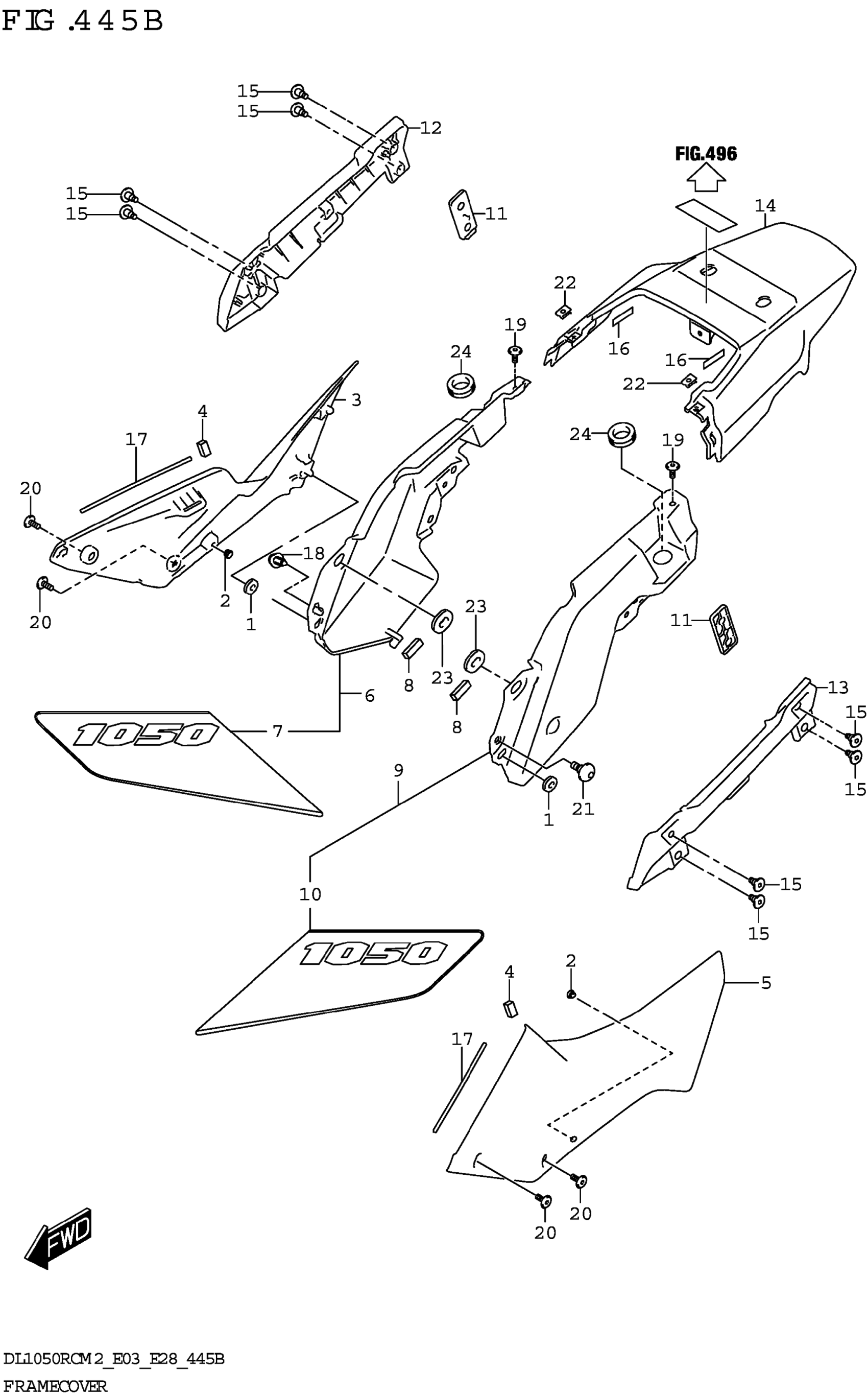

Suzuki DL1050RCM2 (2022) FRAME COVER (DL1050RQ) Diagram

#

Description
Price

1

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$3.92

2

CUSHION,SEAT MOUNT

45148-27J00

$19.43

3

COVER,FRAME FRONT RH

47111-06L10

$105.72

4

CUSHION,FRAME COVER FR RR

47131-06L00

$6.62

5

COVER,FRAME FRONT LH

47211-06L10

$111.37

6-1

COVER,FRAME,R (BLACK) | FOR YVB BODY COLOR:YVB

47310-06L10-B4X

Unavailable

6-2

COVER,FRAME,R (BLACK) | FOR AV4 BODY COLOR:AV4

47310-06L10-B5X

$186.57

7-1

.TAPE,FRAME COVER RH | BODY COLOR:YVB

68135-06L10-B4Q

$32.97

7-2

.TAPE,FRAME COVER,R | BODY COLOR:AV4

68135-06L10-B83

Unavailable

8

CUSHION,FRM COV SIDE NO.5

47312-06L00

$7.02

9-1

COVER,FRAME,L (BLACK) | BODY COLOR:YVB

47350-06L10-B4X

Unavailable

9-2

COVER,FRAME,L (BLACK) | BODY COLOR:AV4

47350-06L10-B5X

$141.63

10-1

.TAPE,FRAME COVER LH | BODY COLOR:YVB

68145-06L10-B4Q

$32.97

10-2

.TAPE,FRAME COVER,L | BODY COLOR:AV4

68145-06L10-B83

$29.65

11

SPACER,FRAME COVER

47510-28K00

$20.00

12

COVER,FRAME REAR RH

47511-06L10

$46.83

13

COVER,FRAME REAR LH

47611-06L10

$51.70

14

COVER,FRAME CENTER (BLACK)

47711-06L10-YGS

$94.60

15

SCREW

47913-06L00

$1.80

16

TAPE,ABS UNIT HOLDER

94415-40F00

$3.75

17

CUSHION,FRAME COVER

94417-24F00

$6.53

18

CLIP

94479-35F00

$5.14

19

SCREW (5X13)

09139-05091

$2.01

20

SCREW (5X13)

09139-05091

$2.01

21

SCREW (6X16)

09139-06169

$2.80

22

NUT (M5)

09148-05052

$3.04

23

CUSHION

09320-08029

$2.51

24

CUSHION (20X32X9)

09320-20011

$2.71
