Description

Price

1

BAR,ACCESSORY

94210-06L00

$581.30

2

BRACKET,ACCESSORY BAR RH

94230-06L00

$129.42

3

BRACKET,ACCESSORY BAR LH

94240-06L00

$129.42

4

COVER,UNDER RH

94251-06L00

$157.37

5

COVER,UNDER LH

94261-06L00

$157.37

6

SPACER,FR RH

94272-06L00

$23.82

7

SPACER,FR LH

94273-06L00

$26.23

8

SPACER,RR RH

94274-06L00

$24.50

9

SPACER,RR LH

94275-06L00

$15.68

10

BOLT,ACCESSORY BAR UPR

09106-08207

$7.38

11

BOLT,WITH WASHER

09116-06527

$2.23

12

WASHER (8.5X28X1.6)

09160-08157

$3.30

13

WASHER,ACCESSORY BAR LWR

09160-08177

$2.23

14

SPACER (8.6X12X24.2)

09180-08152

$5.26

15

SPACER,ACCESSORY BAR LWR

09180-08230

$9.03

16

CUSHION (12X30X24)

09320-12048

$4.62

17

CUSHION (12X22X9.5)

09320-12068

$3.25

18

BOLT

01550-0830B

$4.58

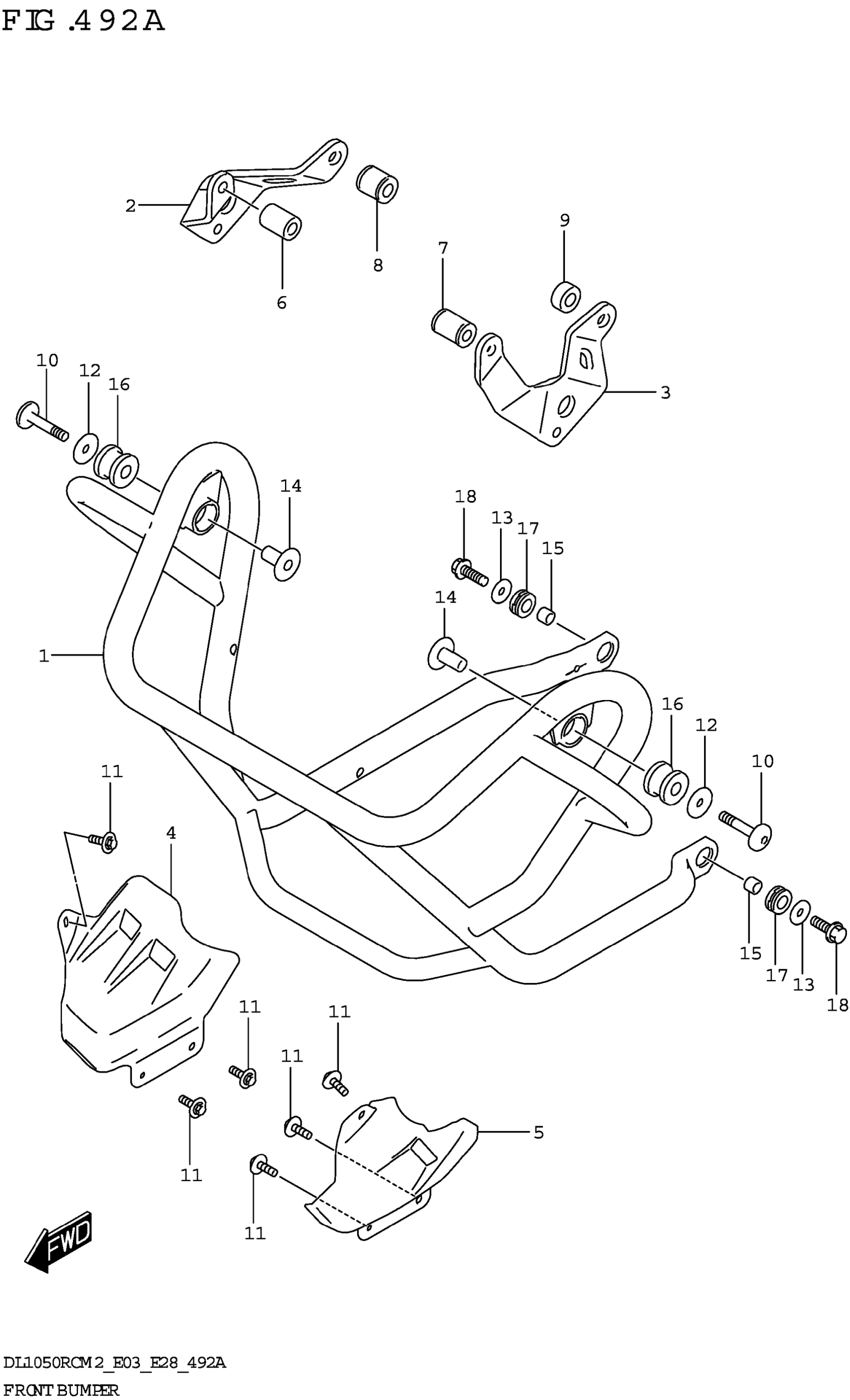

Suzuki DL1050RCM2 (2022) FRONT BUMPER (DL1050RC) Diagram
