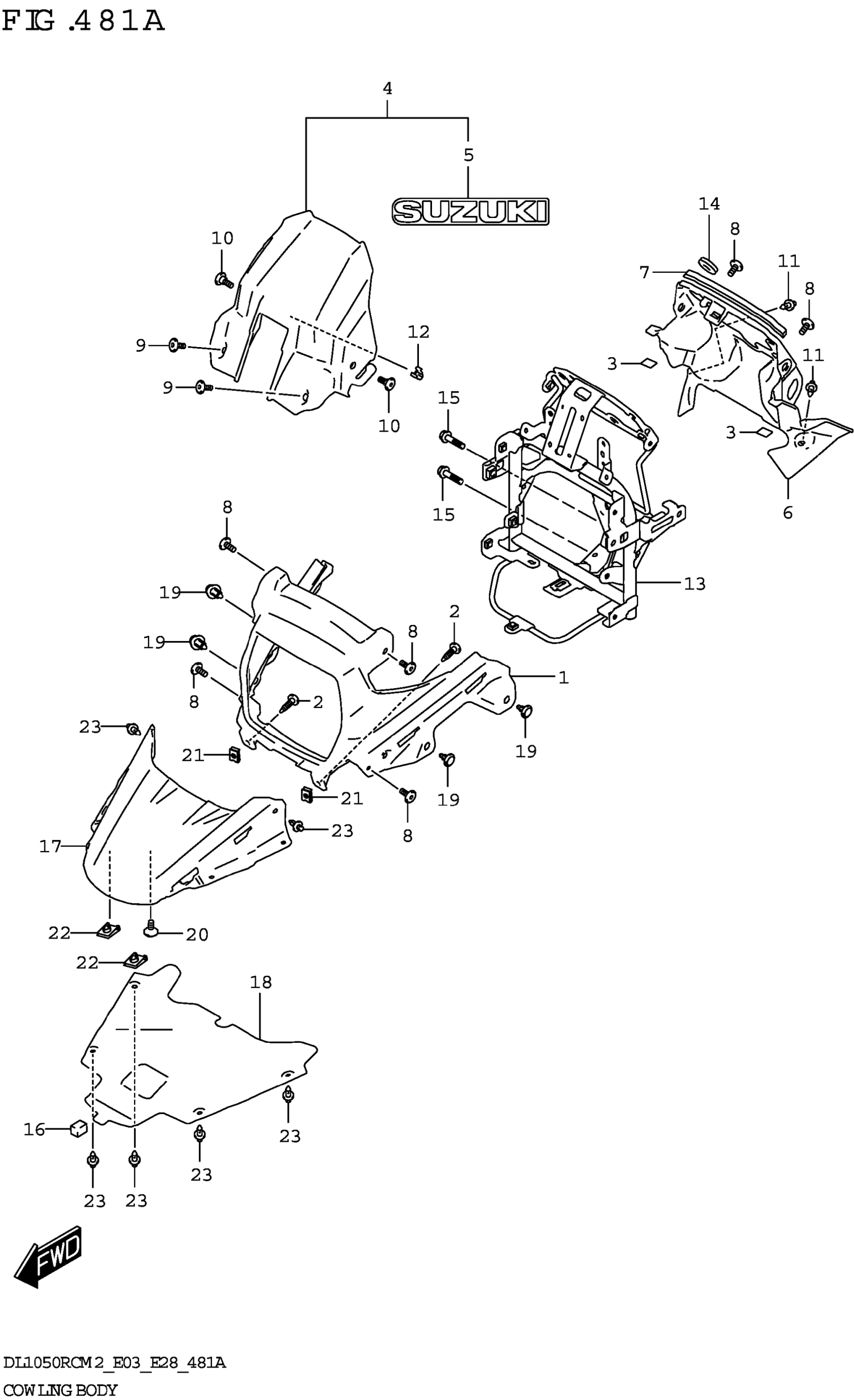

Suzuki DL1050RCM2 (2022) COWLING BODY Diagram

#

Description
Price

1

COWLING,BODY

94411-06L00

$167.87

2

SCREW

03541-0516A

$1.37

3

CUSHION (10X10X1)

63115-37H00

$3.42

4

PANEL,METER FRONT (GRAY,BLACK

94630-06L00-B5J

$82.76

5

.EMBLEM,"SUZUKI" (GRAY,BLACK)

68721-13E00-B5J

$12.20

6

PANEL,METER REAR

94632-06L00

$37.83

7

CUSHION,METER PANEL REAR

94633-06L00

$3.68

8

SCREW (5X13)

09139-05091

$2.01

9

SCREW (5X13)

09139-05091

$2.01

10

SCREW (5X18)

09139-05094

$3.95

11

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

12

CLIP (10.5X14.3)

09409-08326

$2.45

13

BRACE,COWLING

94510-06L00

$326.32

14

CUSHION (8X26X7)

48169-12JA0

Unavailable

15

BOLT

01550-0820B

$2.80

16

CUSHION,RR LAMP (17X17X12)

33652-05G20

$2.87

17

COWLING,BODY CTR (BLACK)

94413-06L00-YKV

$120.25

18

COWLING,BODY CTR LWR

94414-06L00

$26.58

19

CLIP

94479-35F00

$5.14

20

SCREW (5X13)

09139-05091

$2.01

21

NUT (M5)

09148-05038

$1.97

22

NUT (M5)

09148-05052

$3.04

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80
