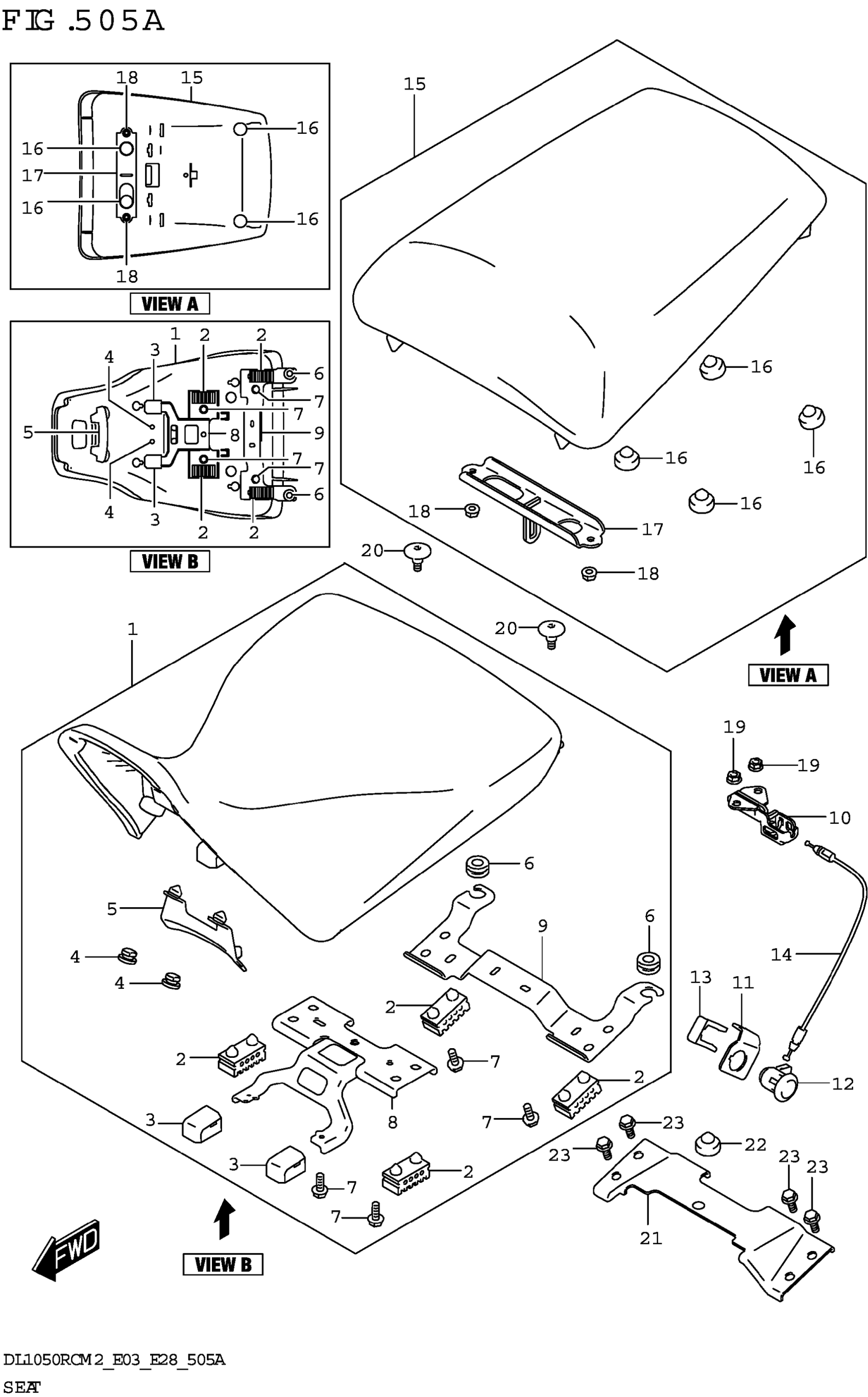

Suzuki DL1050RCM2 (2022) SEAT (DL1050RQ) Diagram

#

Description
Price

1

SEAT ASSY (GRAY,BLACK)

45100-06L01-B03

$541.32

2

.CUSHION,SEAT (40X20X15)

45149-31300

$3.41

3

.CUSHION,SEAT HOOK

45141-06L00

$6.97

4

CUSHION,SEAT MOUNT

45148-27J00

$19.43

5

.CUSHION,SEAT MOUNT

45154-06L00

$12.25

6

.CUSHION

09320-10069

$1.99

7

BOLT

01550-0616A

$2.01

8

.FRAME,SEAT NO.2

45452-06L00

$51.38

9

.FRAME,SEAT

45451-06L00

$37.10

10

BRACKET,STRIKER SUPPORT

45220-04K20

$35.98

11

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.14

12

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$102.14

13

PLATE,SEAT LOCK ASSY

45289-11F00

$5.93

14

CABLE,SEAT LOCK

45280-06L00

$11.78

15

SEAT ASSY,PILLION (GRAY,BLACK

45300-06L00-B03

$214.90

16

CUSHION

09321-10012

$2.80

17

.STRIKER,SEAT LOCK

45290-17K00

$43.82

18

NUT (6X12)

08316-1006A

$2.25

19

NUT (6X12)

08316-1006A

$2.25

20

SCREW (6X20)

09139-06193

$3.93

21

BRIDGE,SEAT

45121-06L00

$25.50

22

CUSHION

09321-10012

$2.80

23

BOLT

01550-0616A

$2.01
