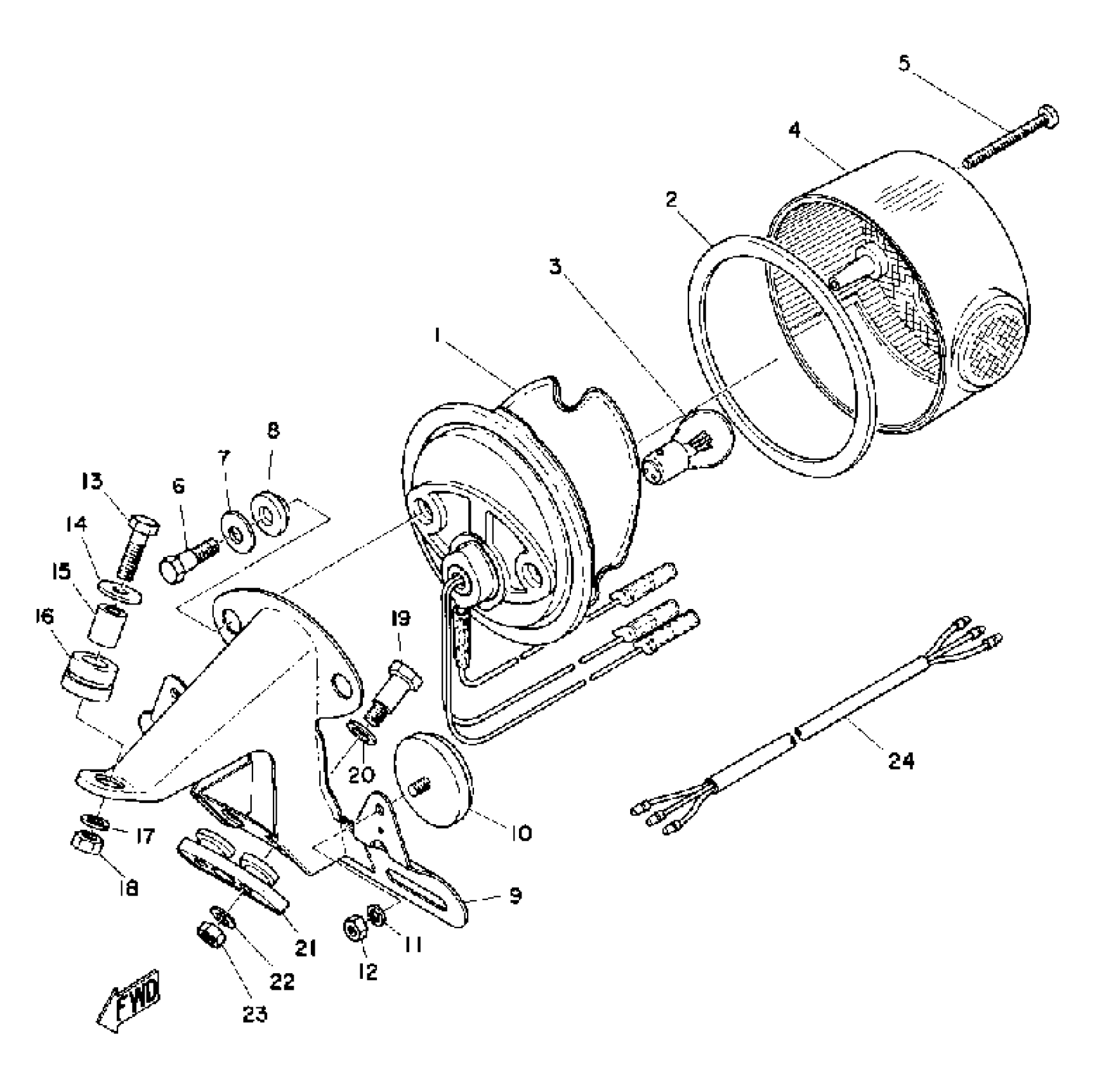

Find the part on the Tail Lamp diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha CS5 (CS5) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

256-84710-61-00

1
Out of stock

1

BASE, TAILLIGHT

(275-84511-61-00)

1
Out of stock

2

. GASKET, LENS

275-84523-60-00

1
Out of stock

3

1

$10.02

In stock

4

LENS, TAILLIGHT

(275-84521-60-00)

1
Out of stock

5

SCREW, PAN HEAD

98507-04050-00

1

$2.12

In stock

6

SCREW

(479-84526-00-00)

1
Out of stock

7

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

8

. DAMPER

275-84527-60-00

1
Out of stock

9

DAMPER

237-83523-00-00

1

$8.70

In stock

10

WASHER 214835240000

90209-05029-00

1

$6.86

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

14

WASHER

90209-06012-00

1

$4.71

In stock

15

COLLAR (J10)

90387-06026-00

—

$6.91

In stock

16

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

BOLT 337847520000

90109-06005-00

—

$6.29

In stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

DAMPER

(337-84753-00-00)

1
Out of stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

24

CORD, TAILLIGHT

(214-84517-00-00)

1
Out of stock
