1972 Yamaha CS5 (CS5) Starter Generator Diagram

← All diagrams

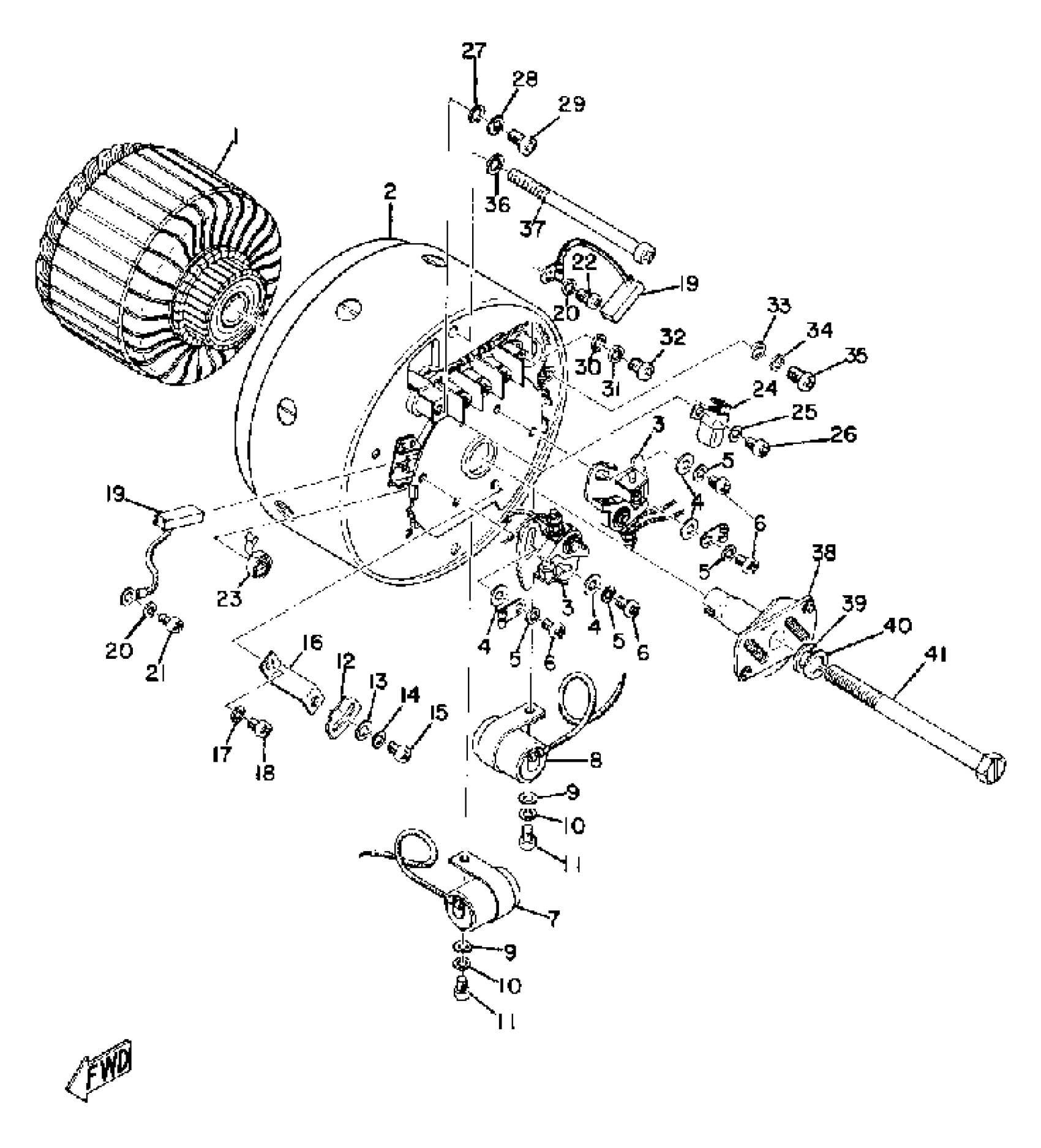

Find the part on the Starter Generator diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha CS5 (CS5) Starter Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ARMATURE

(173-81155-10-00)

1
Out of stock

1

STARTER GEN ASSEMBLY

(193-81100-20-00)

1
Out of stock

2

STATOR ASSEMBLY

(193-81110-10-00)

1
Out of stock

3

.. CONTACT BRKR ASSEMBLY

132-81221-10-00

1
Out of stock

4

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

7

CNDSR 2

278-81625-91-00

1
Out of stock

8

CNDSR 2

278-81625-91-00

1
Out of stock

9

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

12

PLATE, TIMING

(133-81132-10-00)

1
Out of stock

13

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

15

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

16

FIXTURE, TMNG PLATE

(199-81133-10-00)

1
Out of stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

18

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

19

.. BRUSH

173-81111-10-00

1
Out of stock

20

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

21

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

22

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

23

. SPRING, BRUSH

141-81113-10-00

1
Out of stock

24

LUBRICATOR

(132-81231-10-00)

1
Out of stock

25

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

26

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

27

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

28

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

29

SCREW 2

(193-81146-20-00)

1
Out of stock

30

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

31

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

32

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

33

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

34

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

35

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

36

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

37

SCREW, STATOR

(183-81435-10-00)

1
Out of stock

38

. GOVERNOR ASSEMBLY

173-81153-10-00

1
Out of stock

39

WASHER, PLAIN

(173-81162-10-00)

1
Out of stock

40

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

41

BOLT

(141-81152-10-00)

1
Out of stock
