1972 Yamaha CS5 (CS5) Electrical Diagram

← All diagrams

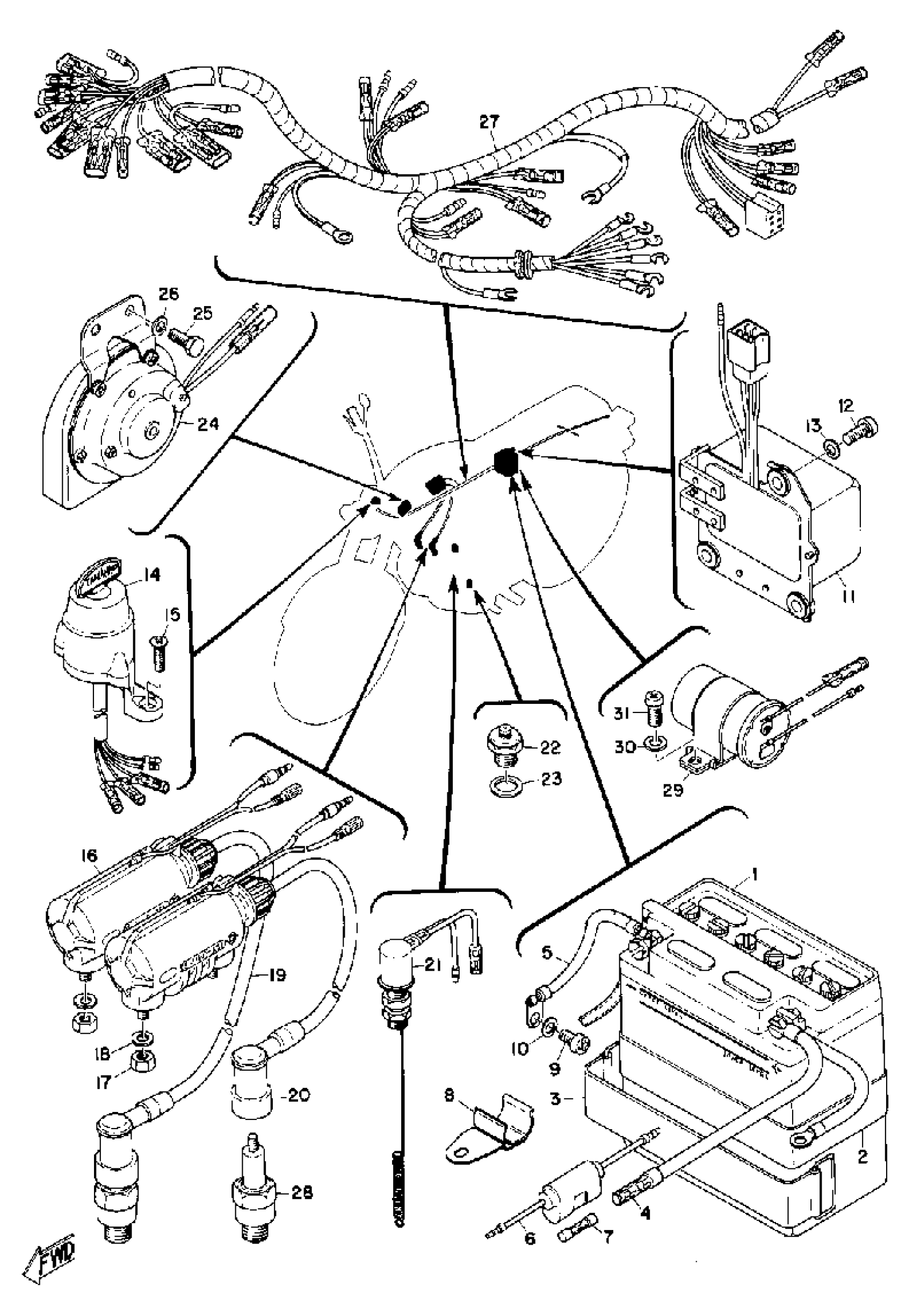

Find the part on the Electrical diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha CS5 (CS5) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, BATTERY

(104-82111-20-00)

1
Out of stock

1

12N9-3A-1 GS BATTERY

12N-93A10-00-00

1
Out of stock

2

BAND, BATTERY

1UA-82124-00-00

1
Out of stock

3

BAND, BATTERY

337-82131-00-00

1
Out of stock

4

WIRE, PLUS LEAD

(337-82115-00-00)

1
Out of stock

5

WIRE, MINUS LEAD

(337-82116-00-00)

1
Out of stock

6

FUSE HOLDER ASSY

2UJ-82150-02-00

—
Out of stock

7

FUSE

1A0-82161-00-00

1
Out of stock

8

HOLDER, FUSE

(337-82152-00-00)

1
Out of stock

9

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

VOLTAGE REG ASSEMBLY

337-81910-10-00

1
Out of stock

12

SCREW, PAN

98507-06014-00

1

$6.18

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

MAIN SWITCH ASSEMBLY

(337-82508-10-00)

1
Out of stock

15

SCREW, FLAT

98707-05016-00

—

$5.60

In stock

16

IGNITION COIL ASSEMBLY

254-82310-60-00

1
Out of stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

CORD, HIGHT TENSION 1

137-82341-01-00

1
Out of stock

20

PLUG CAP ASSY

56J-82370-00-00

—

$56.63

In stock

21

STOP SWITCH ASSY

307-82530-09-00

1
Out of stock

22

NEUTRAL SWITCH ASSY

136-82540-03-00

—

$26.20

In stock

23

WASHER, PLATE

90201-12790-00

—

$6.85

In stock

24

HORN

(183-83371-21-00)

1
Out of stock

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

WIRE HARNESS ASSEMBLY

(337-82590-10-00)

1
Out of stock

28

BR9HS NGK 10PK

BR9-HS000-00-00

1
Out of stock

29

FLASHER RELAY ASSEMBLY

278-83350-71-00

1
Out of stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

SCREW, PAN

98507-06014-00

1

$6.18

In stock
