1972 Yamaha CS5 (CS5) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

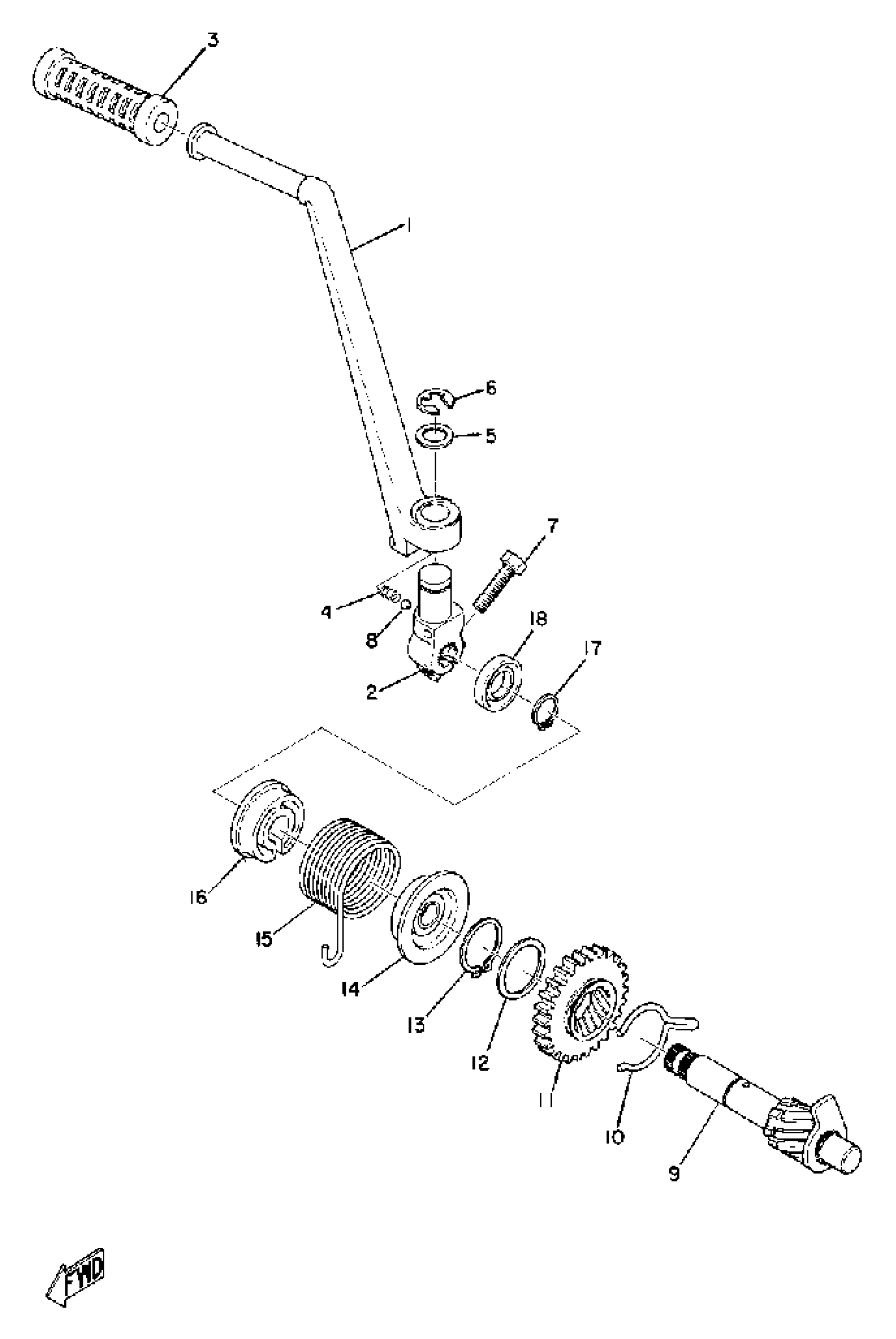

1972 Yamaha CS5 (CS5) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK,KICK

278-15611-00-00

1
Out of stock

2

BOSS, KICK CRANK

337-15621-01-00

1
Out of stock

3

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

4

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

5

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

6

CIRCLIP

99006-10600-00

1

$6.91

In stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

BALL (12R)

93507-32031-00

1
Out of stock

9

KICK AXLE ASSEMBLY

337-15660-00-00

1
Out of stock

10

CLIP 315156870000

90468-26048-00

1
Out of stock

11

GEAR, KICK

251-15641-01-00

1
Out of stock

12

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

13

CIRCLIP (256)

93410-25017-00

1
Out of stock

14

GUIDE, KICK SPRING

132-15664-01-00

1
Out of stock

15

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

16

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

17

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

18

OIL SEAL (15X26X6-102)

93109-15001-00

—

$7.42

In stock
