1972 Yamaha CS5 (CS5) Head Lamp Diagram

← All diagrams

Find the part on the Head Lamp diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

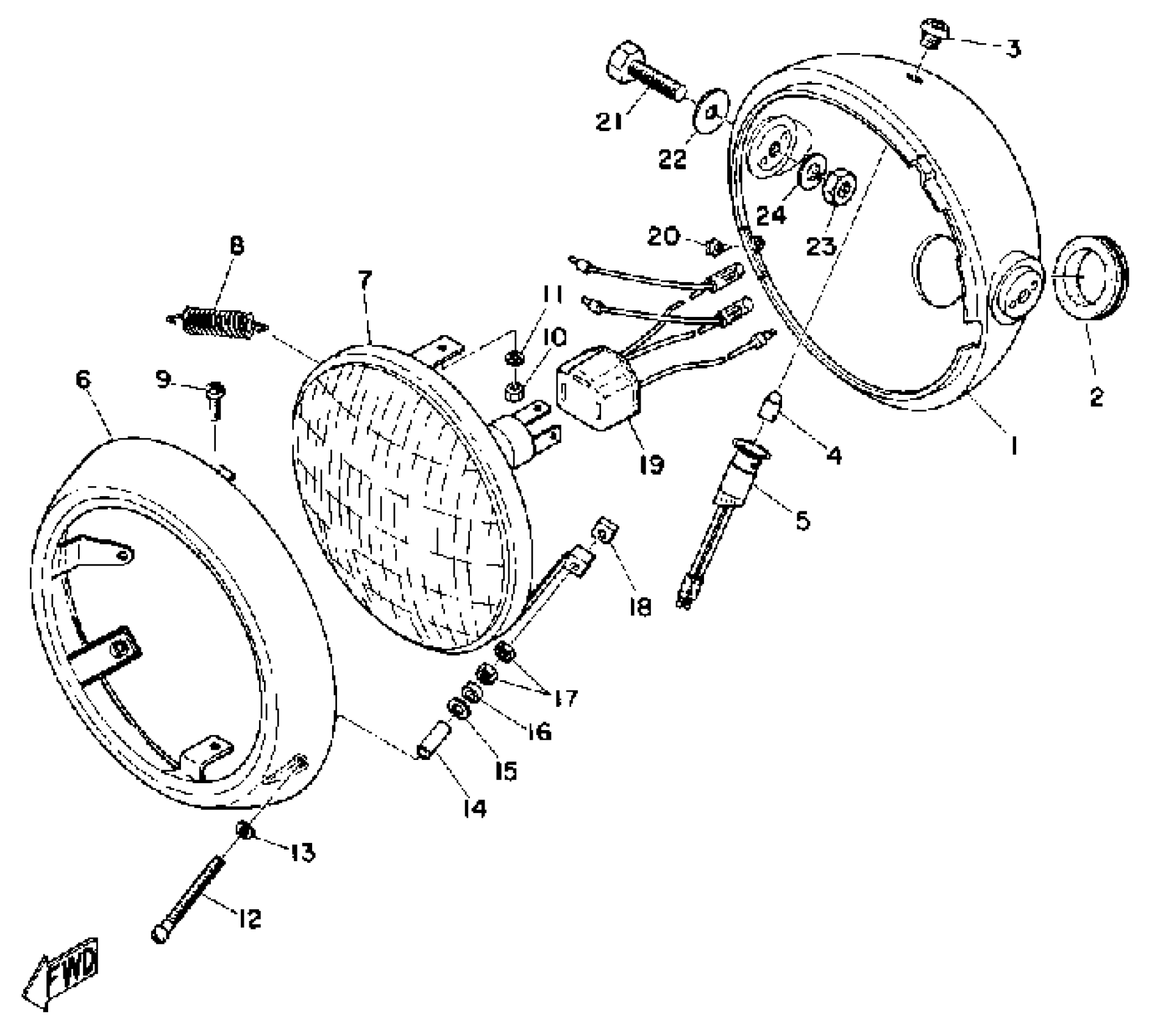

1972 Yamaha CS5 (CS5) Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(237-84330-60-R9)

1
Out of stock

1

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

BODY, PILOT LIGHT

256-84357-61-00

1
Out of stock

4

BULB

256-84347-00-00

1
Out of stock

5

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

6

RIM, HEADLIGHT

233-84115-60-00

1
Out of stock

7

. LENS ASSEMBLY

273-84320-60-00

1
Out of stock

8

SPRING

(132-84335-60-00)

1
Out of stock

9

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

10

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

13

WASHER,SPECIAL

233-84127-60-00

1

$2.78

In stock

14

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

15

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

16

. SPACER

132-84328-60-00

1
Out of stock

17

NUT(6L4)

95380-04700-00

—

$5.62

In stock

18

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

19

SOCKET

246-84312-60-00

1
Out of stock

20

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

21

BOLT (682)

97013-08025-00

—

$6.80

In stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
