1972 Yamaha CS5 (CS5) Handle - Wire Diagram

← All diagrams

Find the part on the Handle - Wire diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

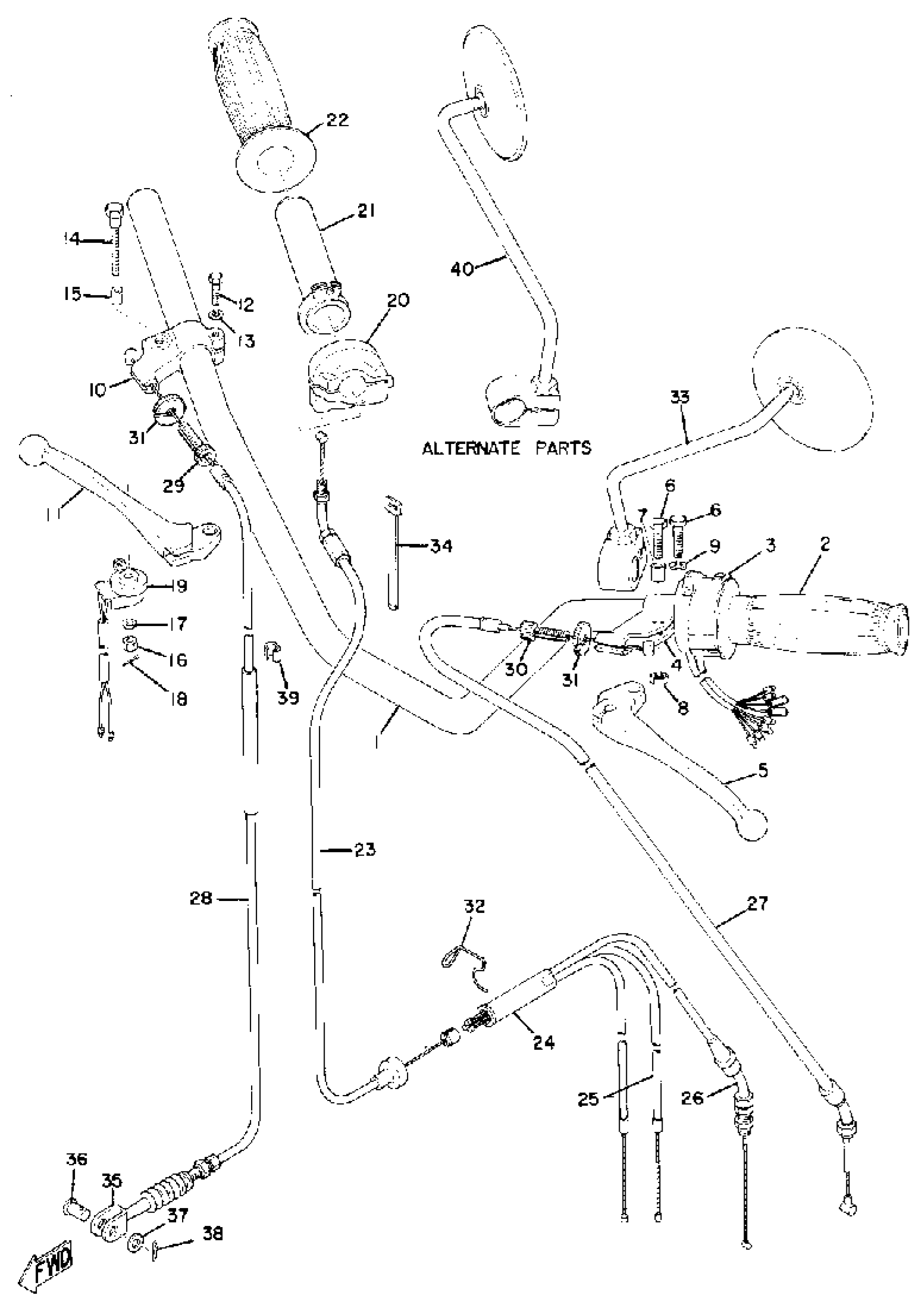

1972 Yamaha CS5 (CS5) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY 1

214-82910-07-00

1
Out of stock

1

HANDLEBAR

(337-26111-00-00)

1
Out of stock

2

LEVER HOLDER ASSY 2

233-82920-32-00

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 4

235-83972-00-94

1
Out of stock

4

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

5

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

6

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

7

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

8

NUT(650)

95380-06700-00

1

$6.17

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

11

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

12

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

. BOLT

90109-05197-00

1
Out of stock

15

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

16

NUT, SLTED

95307-05900-00

1
Out of stock

17

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

18

. PIN, COTTER

91401-12018-00

1
Out of stock

19

FRONT STOP SWITCH ASSY

232-83980-30-00

—

$68.85

In stock

20

SWITCH, HANDLE 1

(337-83976-00-00)

1
Out of stock

21

TUBE, GUIDE

214-26243-00-00

—

$39.75

In stock

22

GRIP RH

(306-26242-10-00)

1
Out of stock

23

CABLE, THROTTLE 1

(337-26311-00-00)

1
Out of stock

24

BOLT

90123-08002-00

—

$8.93

In stock

25

CABLE, THROTTLE 2

(337-26312-00-00)

1
Out of stock

26

CABLE, PUMP

337-26321-00-00

1
Out of stock

27

CABLE, CLUTCH

337-26335-00-00

1
Out of stock

28

CABLE, BRAKE

(337-26341-00-00)

1
Out of stock

29

BOLT

90123-08002-00

—

$8.93

In stock

30

BOLT

90123-08002-00

—

$8.93

In stock

31

NUT

90179-08030-00

—

$3.78

In stock

32

CLIP

(90468-20018-00)

1
Out of stock

33

MIRROR ASSEMBLY LH

253-26290-10-00

1
Out of stock

34

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

35

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

36

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

37

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

38

PIN, COTTER

91490-20025-00

—

$1.31

In stock

39

CLIP, WIRE 2072639100

90468-15009-00

—
Out of stock

40

MIRROR ASY

253-26290-00-00

1
Out of stock
