1991 Kawasaki Concours Swing ARM Diagram

← All diagrams

Find the part on the Swing ARM diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

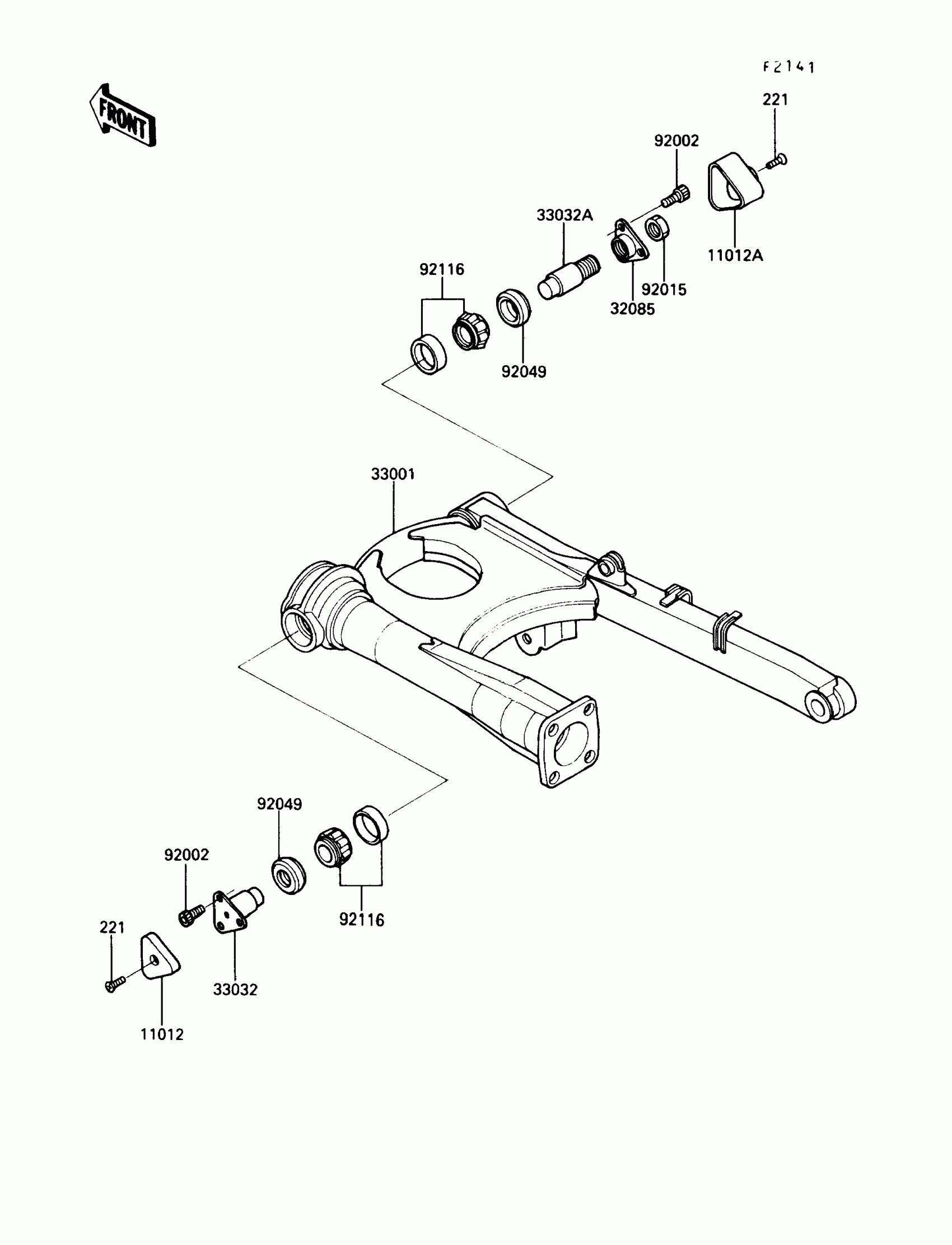

1991 Kawasaki Concours Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM,LH

11012-1512

1
Out of stock

11012A

CAP,SWING ARM,RH

11012-1518

1
Out of stock

32085

STOPPER,SWING ARM SHAFT,RH

32085-1234

1
Out of stock

33001

ARM-COMP-SWING

33001-1267

1
Out of stock

33032

SHAFT-SWING ARM,LH

33032-1122

1
Out of stock

33032A

SHAFT-SWING ARM,RH

33032-1123

1
Out of stock

92002

BOLT,SOCKET,8X20

92002-1178

1
Out of stock

92015

NUT,20MM

92015-1589

1
Out of stock

92049

SEAL-OIL,26X42X6

92049-1256

1
Out of stock

92116

BEARING-ROLLER,H1-CAP 32004JR

92116-1061

1
Out of stock

221

SCREW-CSK-CROS,6X20

221C0620

1
Out of stock
