1991 Kawasaki Concours Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

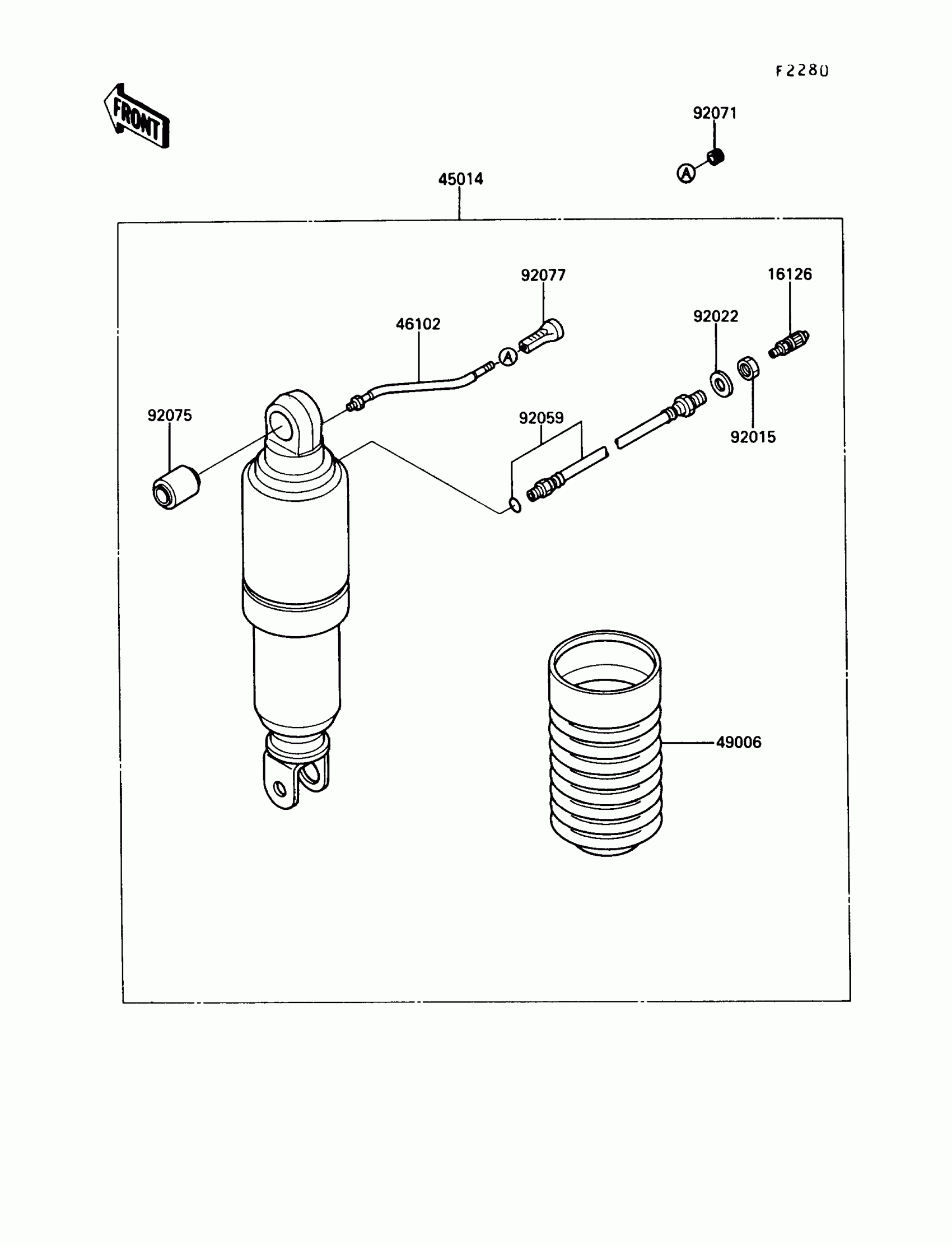

1991 Kawasaki Concours Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,AIR

16126-1143

1
Out of stock

45014

SHOCKABSORBER

45014-1340

1
Out of stock

46102

ROD,SHOCKABSORBER,ADJUST

46102-1192

1
Out of stock

49006

BOOT,SHOCKABSORBER

49006-1201

1
Out of stock

92015

NUT,14MM

92015-1305

1
Out of stock

92022

WASHER

92022-1494

1
Out of stock

92059

TUBE,SHOCKABSORBER

92059-1744

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92075

DAMPER,SHOCKABSORBER

92075-1654

1
Out of stock

92077

KNOB,SHOCKABSORBER,ADJUST

92077-1051

1
Out of stock
