1988 Kawasaki Concours Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

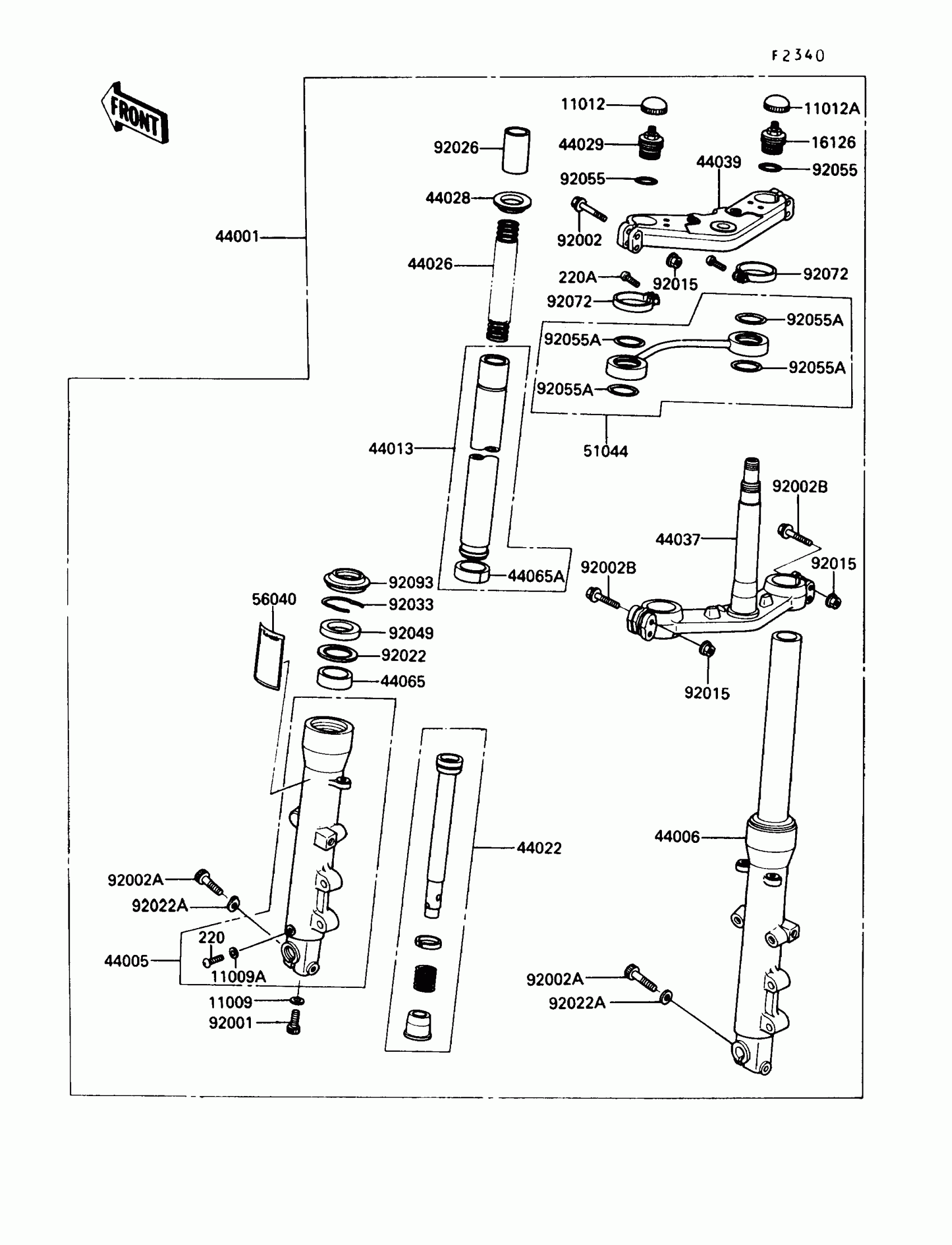

1988 Kawasaki Concours Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.12

In stock

11009A

1

$4.12

In stock

11012

CAP,FORK TOP

11012-1500

1
Out of stock

11012A

CAP,FORK TOP

11012-1501

1
Out of stock

16126

VALVE

16126-1150

1
Out of stock

44001

FORK-FRONT

44001-1623

1

$2,233.61

In stock

44005

1

$438.31

In stock

44006

1

$501.60

In stock

44013

PIPE-FORK INNER

44013-1254

1
Out of stock

44022

CYLINDER-FORK

44022-1197

1
Out of stock

44026

SPRING-FRONT FORK

44026-1340

1

$84.46

In stock

44028

GUIDE-FORK SPRING

44028-1059

1
Out of stock

44029

SEAT-FORK SPRING

44029-1122

1

$59.26

In stock

44037

HOLDER-FORK UNDER

44037-1198

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1135

1

$322.77

In stock

44065

BUSHING-FRONT FORK

44065-1064

1

$34.45

In stock

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1081

1
Out of stock

51044

TUBE-ASSY,FORK,AIR

51044-1083

1

$149.01

In stock

56040

LABEL-WARNING,AIR SUSPENSION

56040-1117

1
Out of stock

92001

BOLT,FORK CYLINDER

92001-1309

1

$6.06

In stock

92002

BOLT,FLANGED,8X55

92002-1158

1

$7.33

In stock

92002A

BOLT,SOCKET,8X45

92002-1847

1
Out of stock

92002B

BOLT,FLANGED,8X50

92002-1848

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1

$4.27

In stock

92022

1

$6.82

In stock

92022A

WASHER

92022-1598

1

$8.20

In stock

92026

SPACER,FORK SPRING

92026-1277

1
Out of stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL,FORK OUTER

92049-1273

1
Out of stock

92055

RING-O,FORK TOP

92055-1052

1
Out of stock

92055A

RING-O,FORK AIR TUBE

92055-1106

1
Out of stock

92072

BAND

92072-1157

1
Out of stock

92093

1

$20.09

In stock

220

SCREW-PAN-CROS,4X8

220E0408

1
Out of stock

220A

SCREW-PAN-CROS

220E0412

1
Out of stock
