1991 Kawasaki Concours Suspension Diagram

← All diagrams

Find the part on the Suspension diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

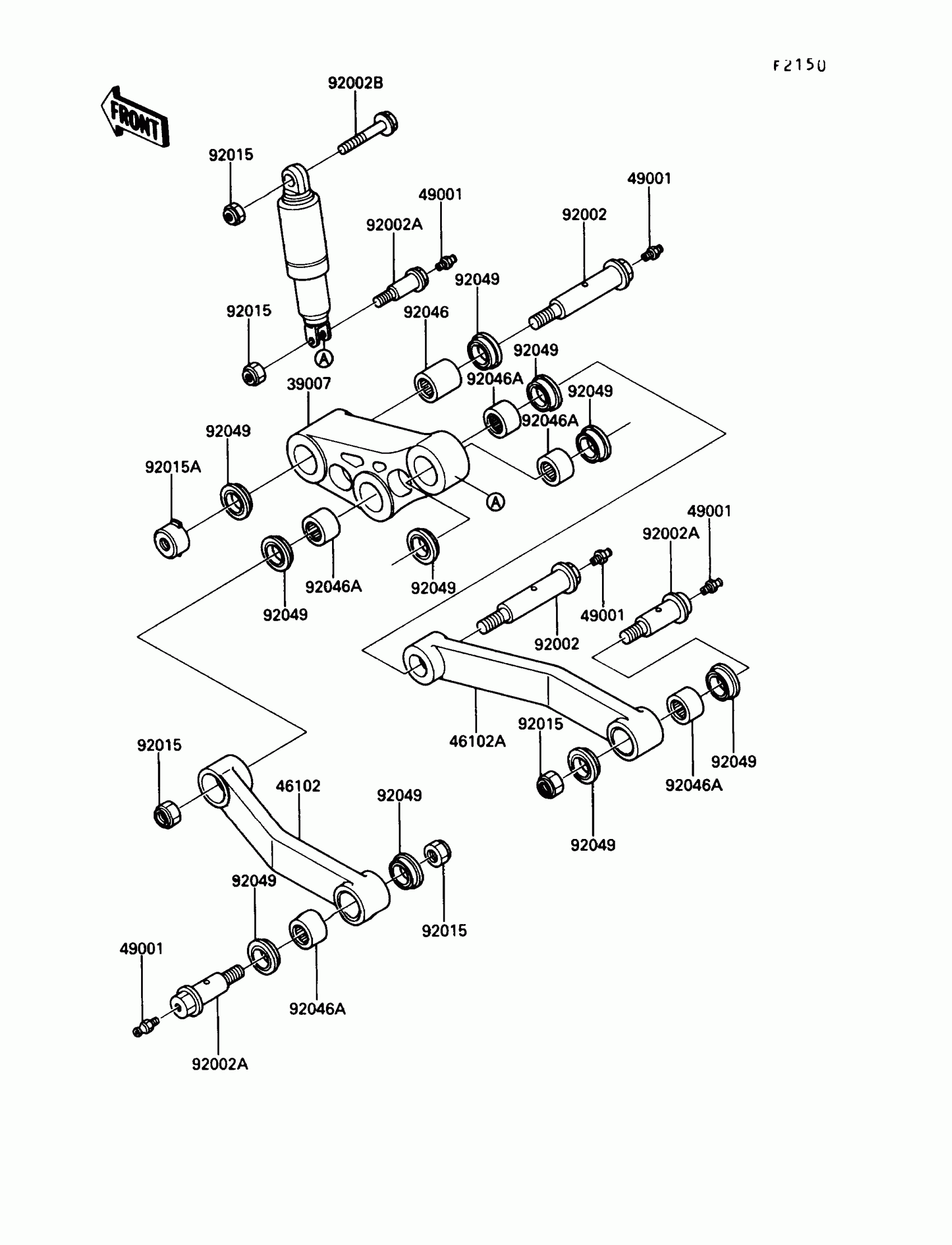

1991 Kawasaki Concours Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1094

1
Out of stock

46102

ROD,SUSPENSION,LH

46102-1175

1
Out of stock

46102A

ROD,SUSPENSION,RH

46102-1176

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1
Out of stock

92002

BOLT,SUSPENSION ARM

92002-1709

1
Out of stock

92002A

BOLT,SUSPENSION ARM

92002-1710

1
Out of stock

92002B

BOLT,FLANGED,12X50

92002-1727

1
Out of stock

92015

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92015A

NUT,12MM

92015-1482

1
Out of stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock
