1991 Kawasaki Concours Rear HUB Diagram

← All diagrams

Find the part on the Rear HUB diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

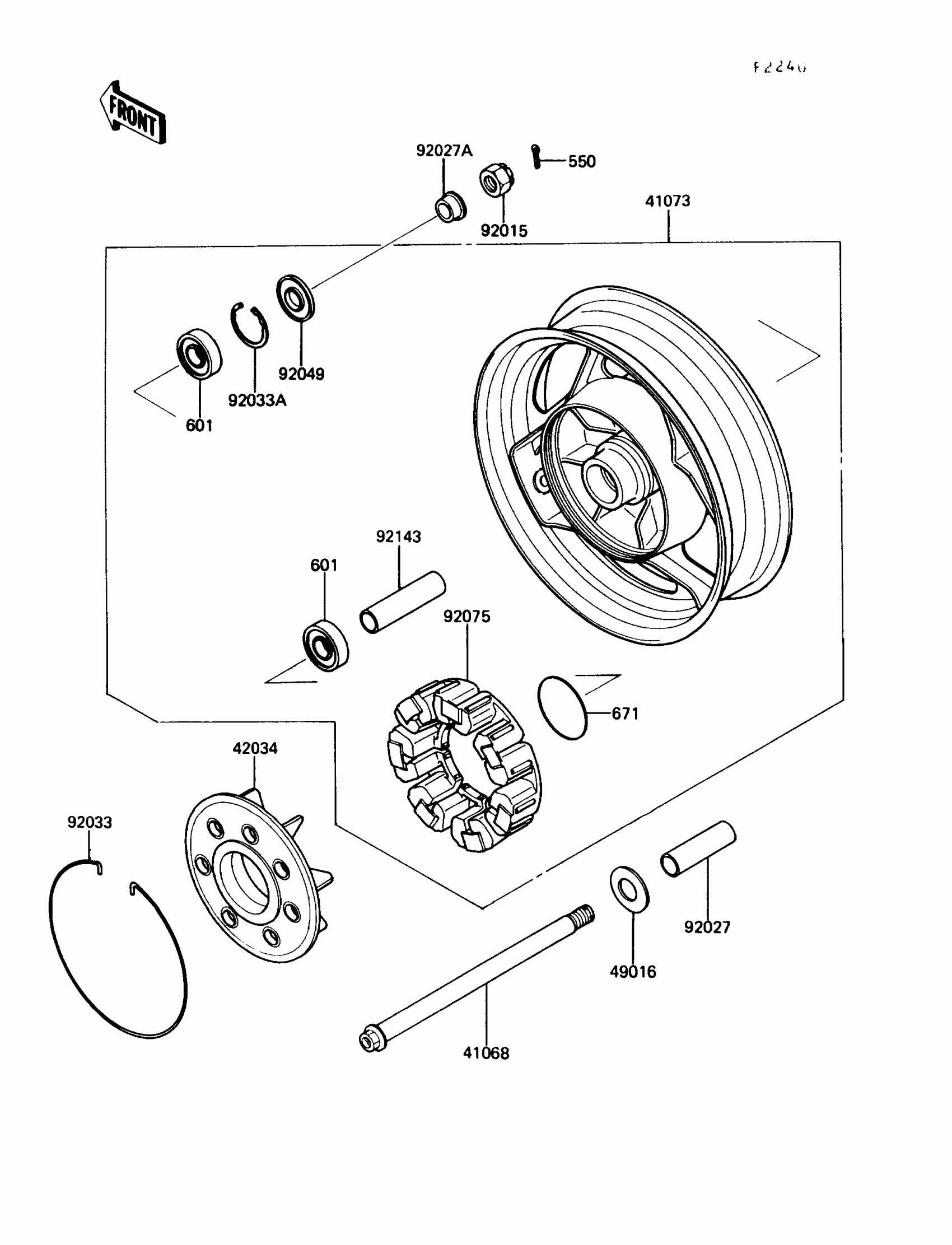

1991 Kawasaki Concours Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR

41068-1197

1
Out of stock

41073

WHEEL-ASSY,RR,SILVER NO.1

41073-1335-CX

1
Out of stock

42034

COUPLING,RR HUB

42034-1011

1
Out of stock

49016

COVER-SEAL

49016-1019

1
Out of stock

92015

NUT,CASTLE,18MM

42045-018

1
Out of stock

92027

COLLAR,20.2X28X89

92027-1553

1
Out of stock

92027A

COLLAR,RR AXLE,L=20

92027-1792

1
Out of stock

92033

RING-SNAP

92033-1019

1
Out of stock

92033A

RING-SNAP,52MM

92033-1043

1
Out of stock

92049

SEAL-OIL,28X52X5

92049-1061

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1121

1
Out of stock

92143

COLLAR,20.2X28X105.5

92143-1048

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6304ZZC3

601B6304ZZ

1
Out of stock

671

O RING,80MM

671B2580

1
Out of stock
