1991 Kawasaki Concours Front HUB Diagram

← All diagrams

Find the part on the Front HUB diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

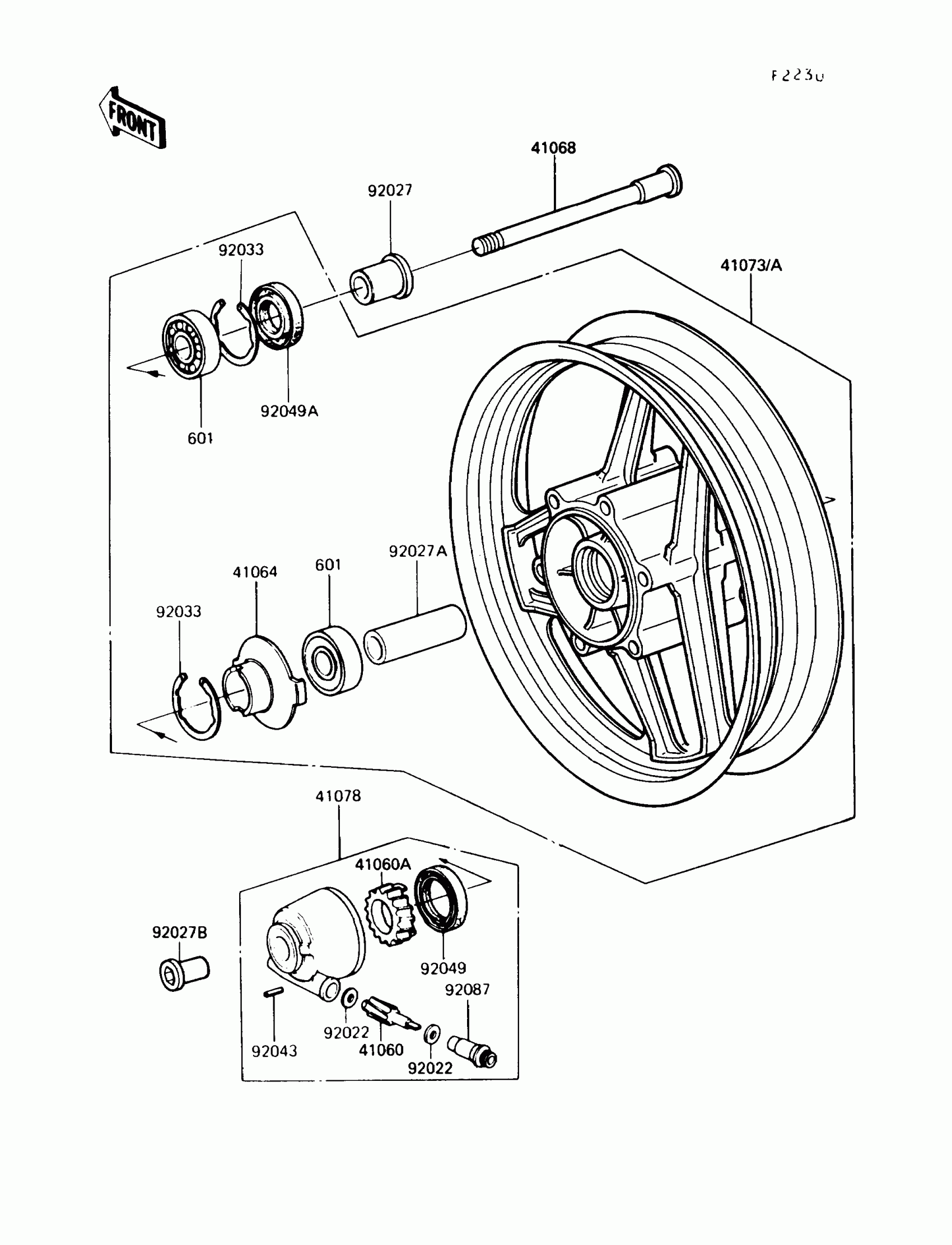

1991 Kawasaki Concours Front HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41060

GEAR-METER SCREW,9T

41060-1016

1
Out of stock

41060A

1

$19.10

In stock

41064

1

$11.81

In stock

41068

AXLE,FR

41068-1164

1
Out of stock

41073A

WHEEL-ASSY,FR,SILVER NO.1

41073-1423-CX

1
Out of stock

41078

CASE-ASSY-METER GEAR

41078-1061

1
Out of stock

92022

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

92027

COLLAR,L=30

92027-1225

1
Out of stock

92027A

COLLAR,L=71

92027-1725

1
Out of stock

92027B

COLLAR,FR AXLE,L=36.5

92027-1726

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92043

PIN,SPRING

41082-001

1
Out of stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92049A

SEAL-OIL,BJN22425

92049-1058

1
Out of stock

92087

BUSHING-METER GEAR

92087-1002

1
Out of stock

601

BEARING-BALL,#6302UG

601B6302UG

1
Out of stock
