1991 Kawasaki Concours Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

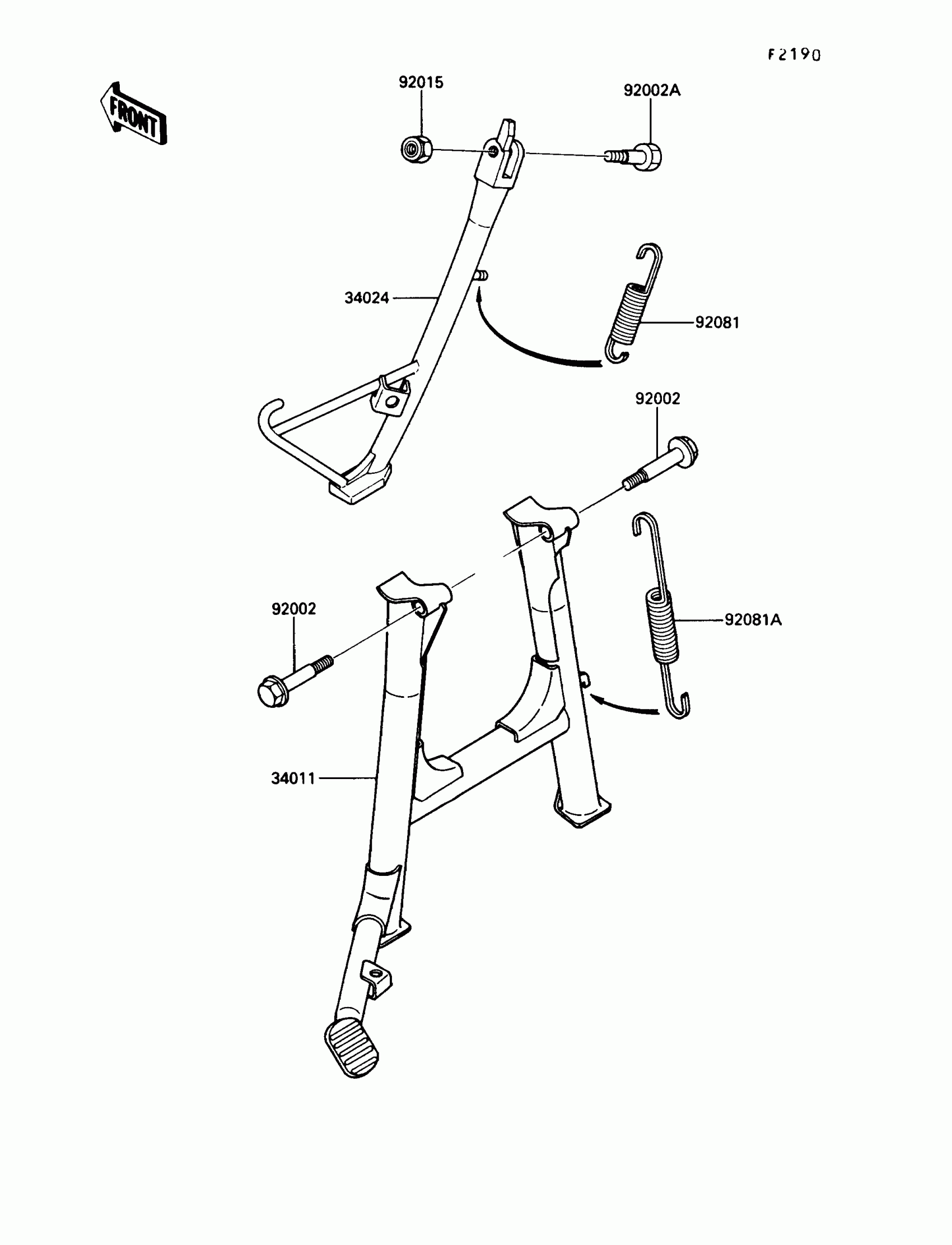

1991 Kawasaki Concours Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34011

STAND-CENTER

34011-1134

1

$185.70

In stock

34024

STAND-SIDE

34024-1208

1

$143.67

In stock

92002

BOLT,CENTER STAND

92001-1880

1
Out of stock

92002A

BOLT,SIDE STAND

92002-1813

1
Out of stock

92015

NUT,LOCK,10MM

92019-021

1
Out of stock

92081

SPRING,SIDE STAND

92081-1676

1
Out of stock

92081A

SPRING,CENTER STAND

92081-1828

1
Out of stock
