1991 Kawasaki Concours OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

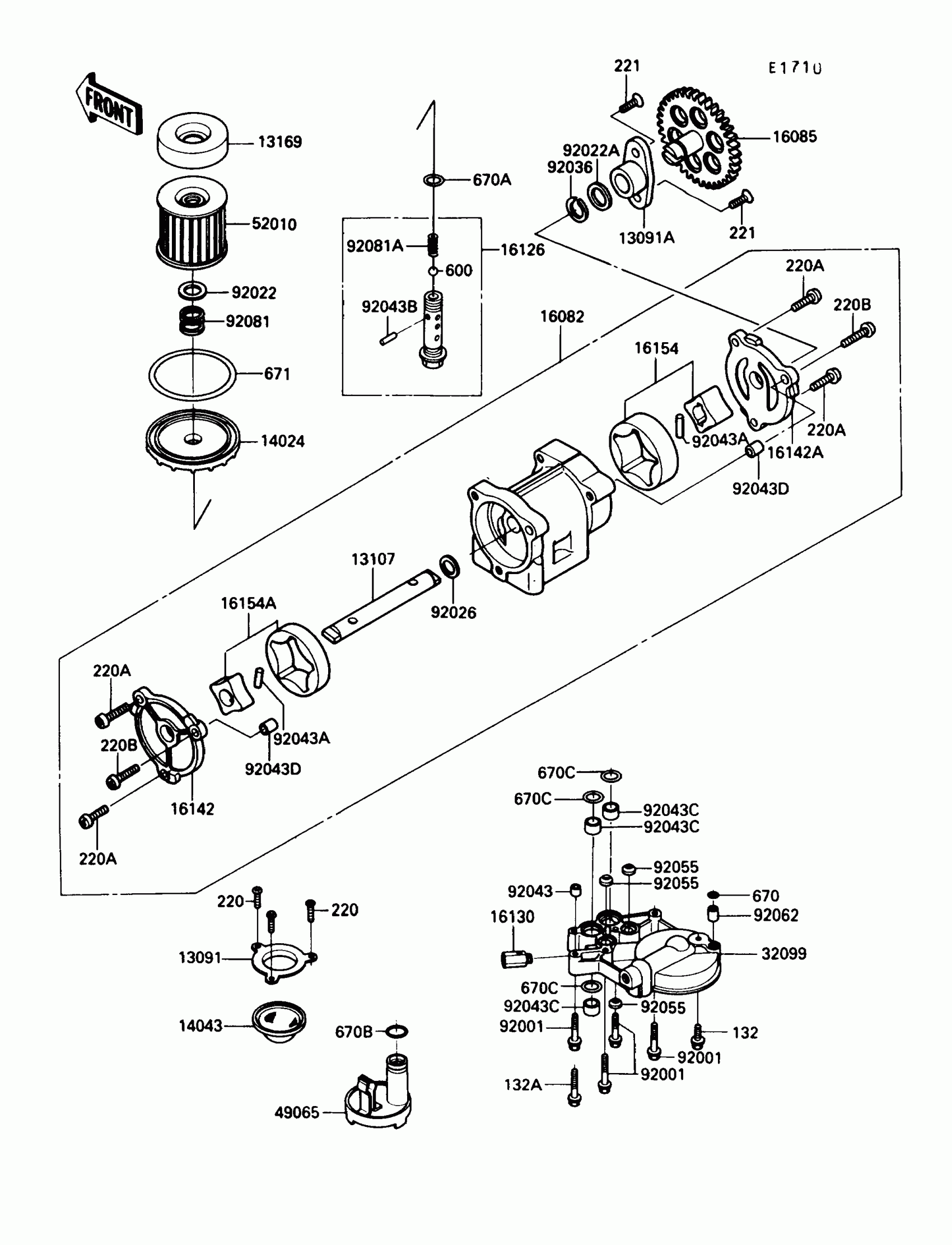

1991 Kawasaki Concours OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,OIL FILTER

13091-1274

1

$13.64

In stock

13091A

HOLDER,PUMP GEAR

13091-1333

1

$32.61

In stock

13107

SHAFT,OIL PUMP

13107-1105

1
Out of stock

13169

PLATE,OIL FILTER

13169-1313

1
Out of stock

14024

1

$40.44

In stock

14043

FILTER,OIL

16111-003

1
Out of stock

16082

PUMP-ASSY-OIL

16082-1060

1
Out of stock

16085

GEAR,OIL PUMP,35T

16085-1103

1
Out of stock

16126

VALVE,OIL FILTER

16126-1108

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1001

1
Out of stock

16142

COVER-PUMP,LH

16142-1052

1
Out of stock

16142A

COVER-PUMP,RH

16142-1054

1
Out of stock

16154

ROTOR-PUMP,SCAVENGE,T=16

16154-1007

1
Out of stock

16154A

ROTOR-PUMP

16154-1053

1
Out of stock

32099

CASE,OIL FILTER

32099-1083

1
Out of stock

49065

FILTER-OIL

49065-1053

1
Out of stock

52010

ELEMENT-OIL FILTER

16099-003

1
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1
Out of stock

92022

WASHER,20.5X30X1

92022-1012

1
Out of stock

92022A

WASHER,14X20X1

92022-1495

1
Out of stock

92026

SPACER,OIL PUMP

92026-1230

1
Out of stock

92036

RING-SNAP,PUMP GEAR

92036-1052

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043A

PIN,DOWEL,5X17.8

92043-1061

1
Out of stock

92043B

PIN,SPRING,2X20

92043-111

1
Out of stock

92043C

PIN,18X20X12

92043-1213

1
Out of stock

92043D

PIN,DOWEL,8X10

92043-1302

1
Out of stock

92055

RING-O,19.5MM

92055-077

1
Out of stock

92062

NOZZLE

92062-1055

1
Out of stock

92081

SPRING,OIL FILTER

92081-1018

1
Out of stock

92081A

SPRING

92081-109

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X45

132G0645

1
Out of stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

220A

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

220B

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

221

SCREW-CSK-CROS,6X16

221B0616

1
Out of stock

600

BALL-STEEL,3/8"

600A1200

1
Out of stock

670

O RING,8MM

670B1508

1
Out of stock

670A

O RING,16MM

670B2016

1
Out of stock

670B

O RING,18MM

670B2018

1
Out of stock

670C

O RING,20MM

670D2020

1
Out of stock

671

O RING,90MM

671B2590

1
Out of stock
