1988 Kawasaki Concours Crankshaft Diagram

← All diagrams

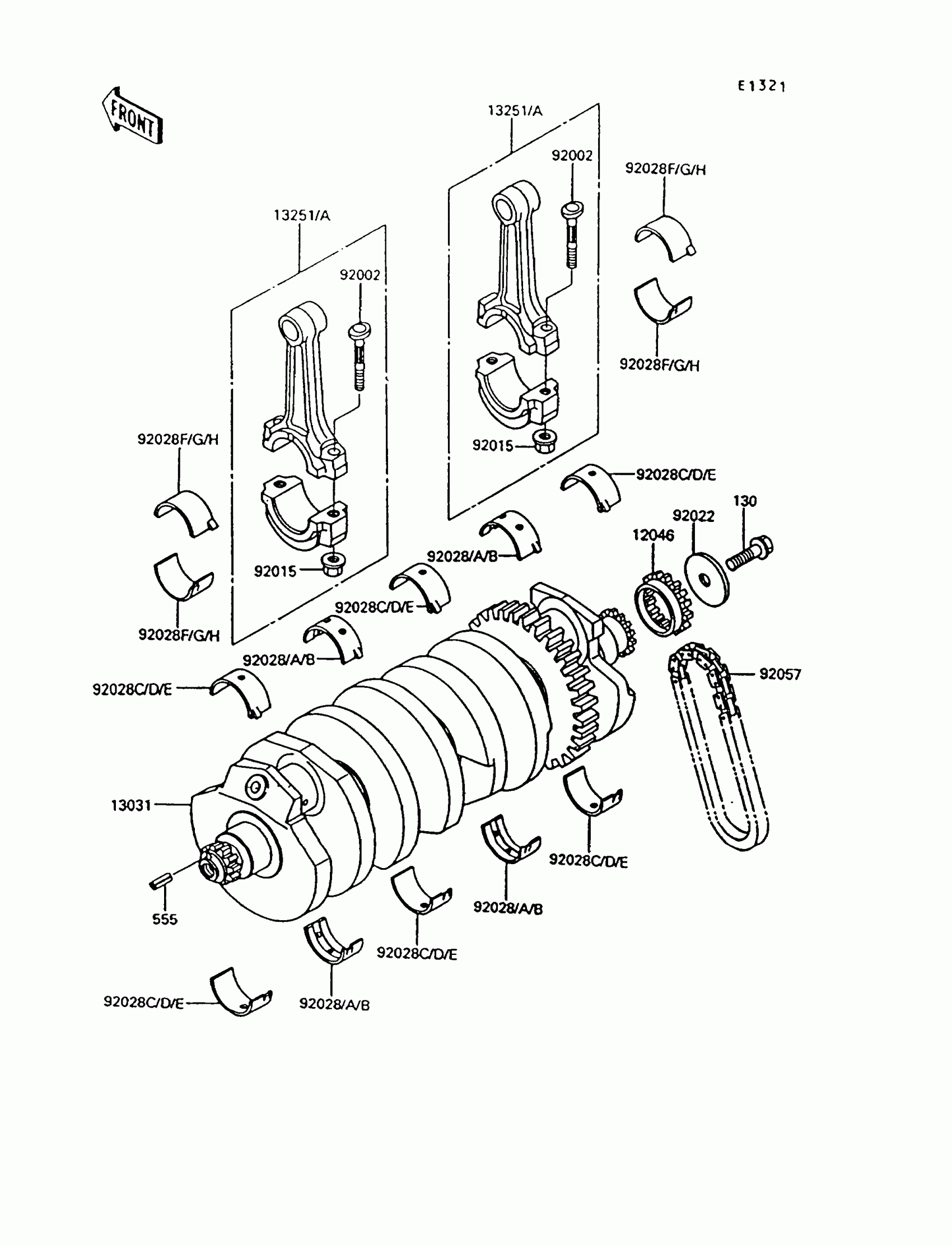

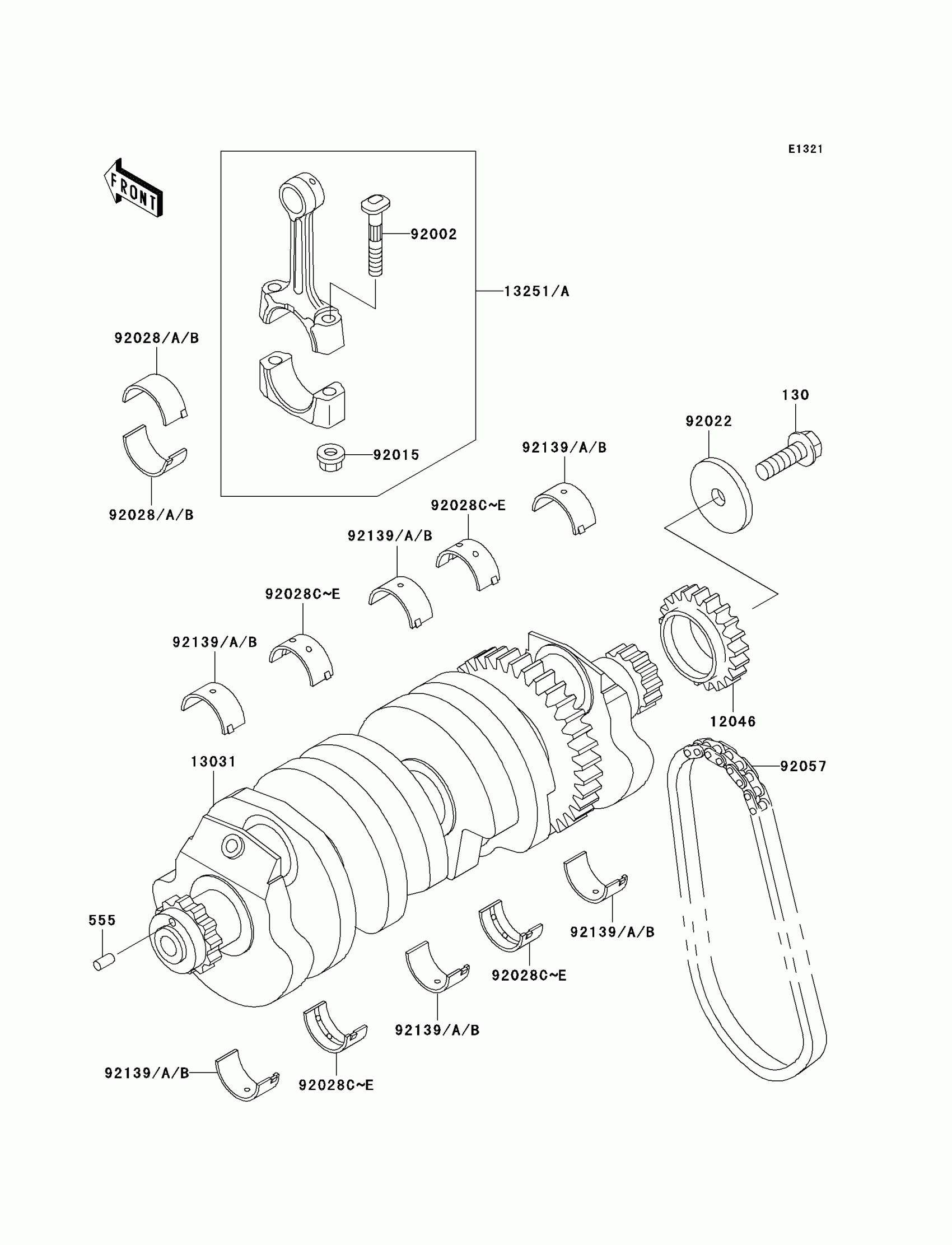

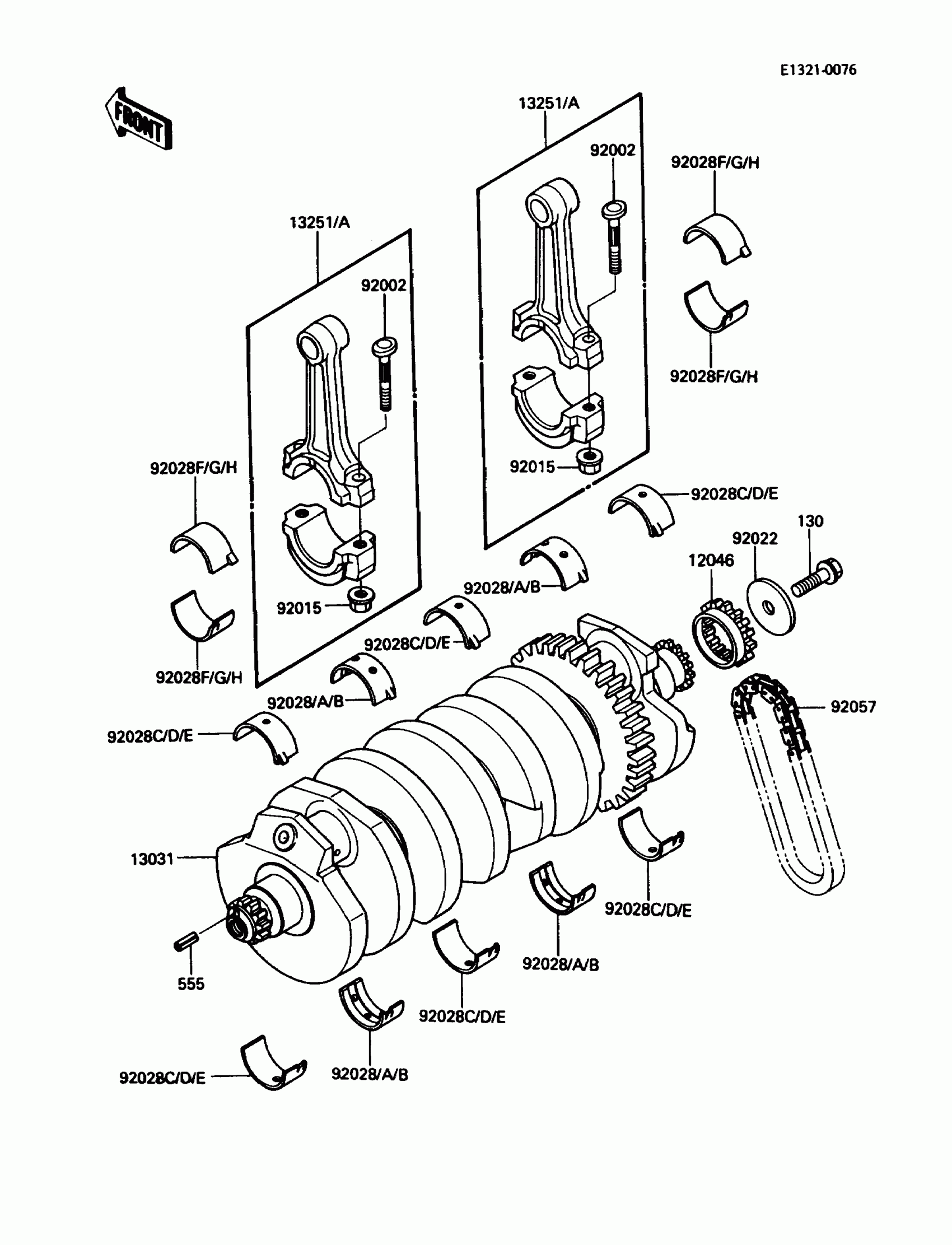

Find the part on the Crankshaft diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Concours Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,21T

12046-1084

1

$71.67

In stock

13031

CRANKSHAFT-COMP

13031-1201

1
Out of stock

13251

ROD-ASSY-CONNECTING,K

13251-1075-KK

1
Out of stock

13251A

ROD-ASSY-CONNECTING,L

13251-1075-LL

1
Out of stock

92002

BOLT,CONNECTING ROD,9MM

92002-1678

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1559

1

$4.93

In stock

92022

WASHER,8.5X36X4

92022-1633

1

$7.56

In stock

92028

—

$13.29

In stock

92028A

—

$13.29

In stock

92028B

—

$13.29

In stock

92028C

—

$24.92

In stock

92028D

—

$23.88

In stock

92028E

—

$23.88

In stock

92028F

—

$20.20

In stock

92028G

—

$19.98

In stock

92028H

—

$20.20

In stock

92057

CHAIN,GENERATOR

92057-1209

1

$69.72

In stock

130

BOLT-FLANGED,8X25

130G0825

1
Out of stock

555

PIN-SPRING

555A0410

1
Out of stock
