1988 Kawasaki Concours Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

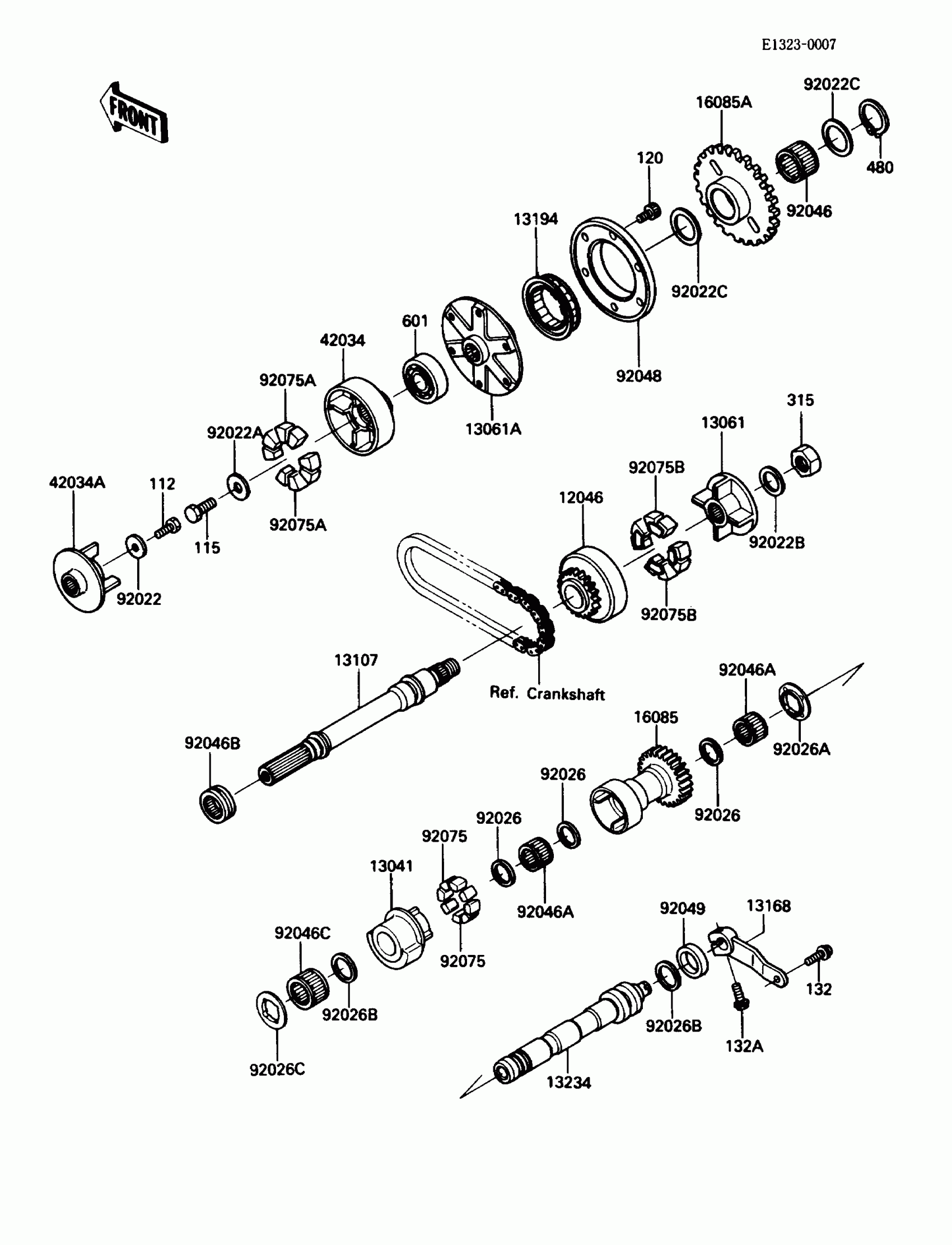

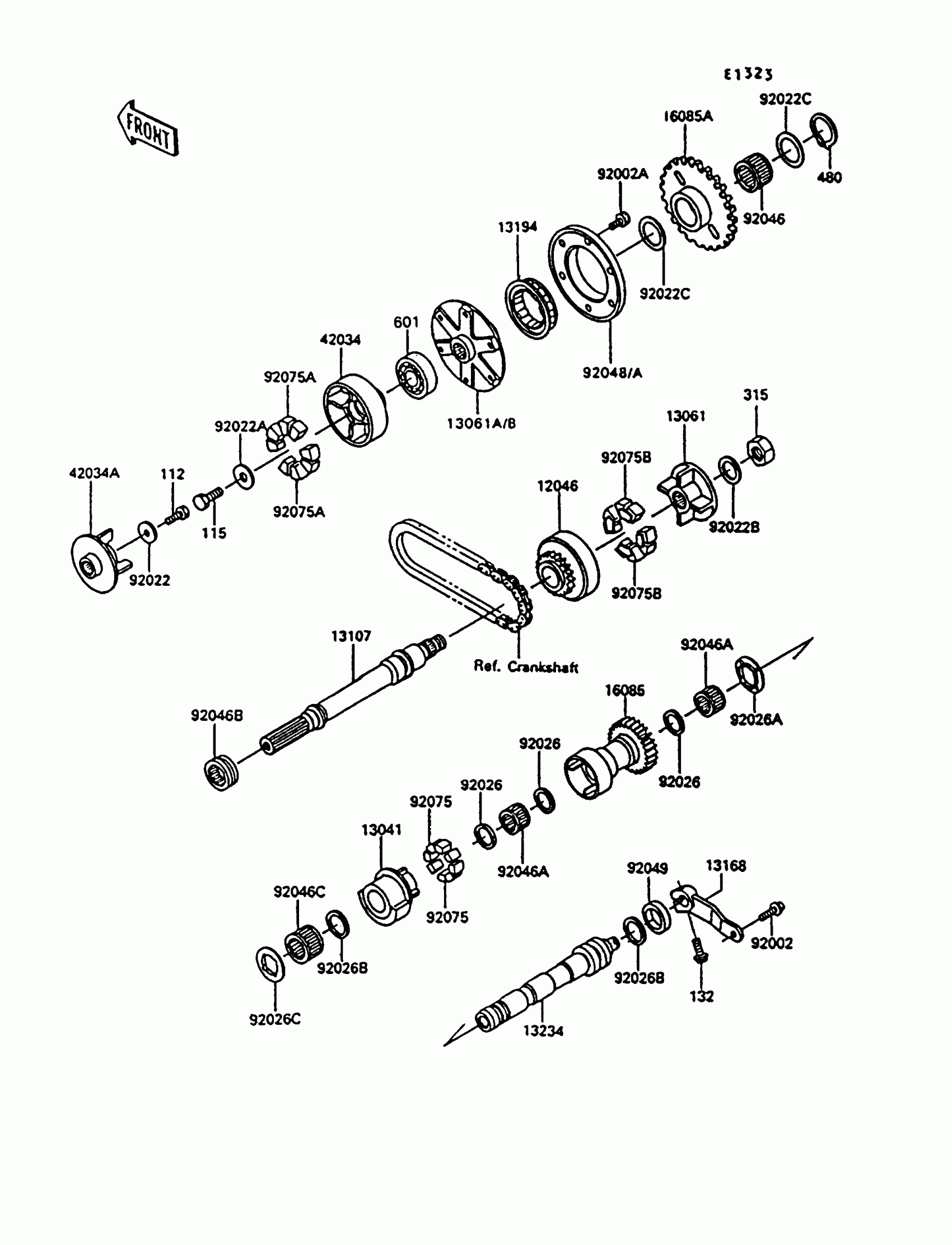

1988 Kawasaki Concours Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,GENERATOR

12046-1083

1
Out of stock

13041

BALANCER

13041-1064

1

$159.72

In stock

13061

BOSS,SPROCKET

13061-1183

1

$75.82

In stock

13061A

BOSS,COUPLING

13061-1191

1
Out of stock

13107

SHAFT

13107-1108

1

$209.04

In stock

13168

LEVER,BALANCER

13168-1236

1

$33.19

In stock

13194

CLUTCH-ONEWAY

13194-1067

1
Out of stock

13234

SHAFT-COMP,BALNCER

13234-1072

1

$209.04

In stock

16085

GEAR,BALANCER

16085-1139

1

$153.99

In stock

16085A

GEAR,ONEWAY CLUTCH

16085-1173

1

$121.35

In stock

42034

COUPLING

42034-1055

1

$84.97

In stock

42034A

COUPLING

42034-1056

1

$77.21

In stock

92022

WASHER,6X19.5X2

92022-1517

1

$1.90

In stock

92022A

WASHER,8X22X3

92022-1518

1

$3.95

In stock

92022B

WASHER,16X26X2

92022-1519

1

$4.90

In stock

92022C

WASHER,25.3X32X0.5

92022-225

1
Out of stock

92026

1

$5.61

In stock

92026A

SPACER,T=1.5

92026-1214

1

$41.65

In stock

92026B

SPACER,21.3X26X1

92026-1223

1

$7.47

In stock

92026C

SPACER

92026-1271

1

$41.65

In stock

92046

BEARING-NEEDLE,K253020S

92046-1022

1
Out of stock

92046A

1

$20.42

In stock

92046B

BEARING-NEEDLE,RNA4903

92046-1109

1
Out of stock

92046C

BEARING-NEEDLE

92046-1155

1
Out of stock

92048

RACE,ONEWAY CLUTCH

92048-1065

1
Out of stock

92049

SEAL-OIL,S192705

92049-1174

1
Out of stock

92075

DAMPER,BALANCER

92075-1709

1

$4.44

In stock

92075A

DAMPER,COUPLING

92075-1790

1

$9.29

In stock

92075B

DAMPER,COUPLING

92075-1810

1

$9.29

In stock

112

BOLT-UPSET,6X16

112G0616

1
Out of stock

115

BOLT,8X20

115G0820

1
Out of stock

120

BOLT-SOCKET,6X12

120P0612

1
Out of stock

132

BOLT-FLANGED-SMALL

132W0616

1
Out of stock

132A

BOLT-FLANGED-SMALL

132W0620

1
Out of stock

315

NUT-HEX-FINE

315G1600

1
Out of stock

480

1

$1.71

In stock

601

1

$11.12

In stock
