1988 Kawasaki Concours Oil Cooler Diagram

← All diagrams

Find the part on the Oil Cooler diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

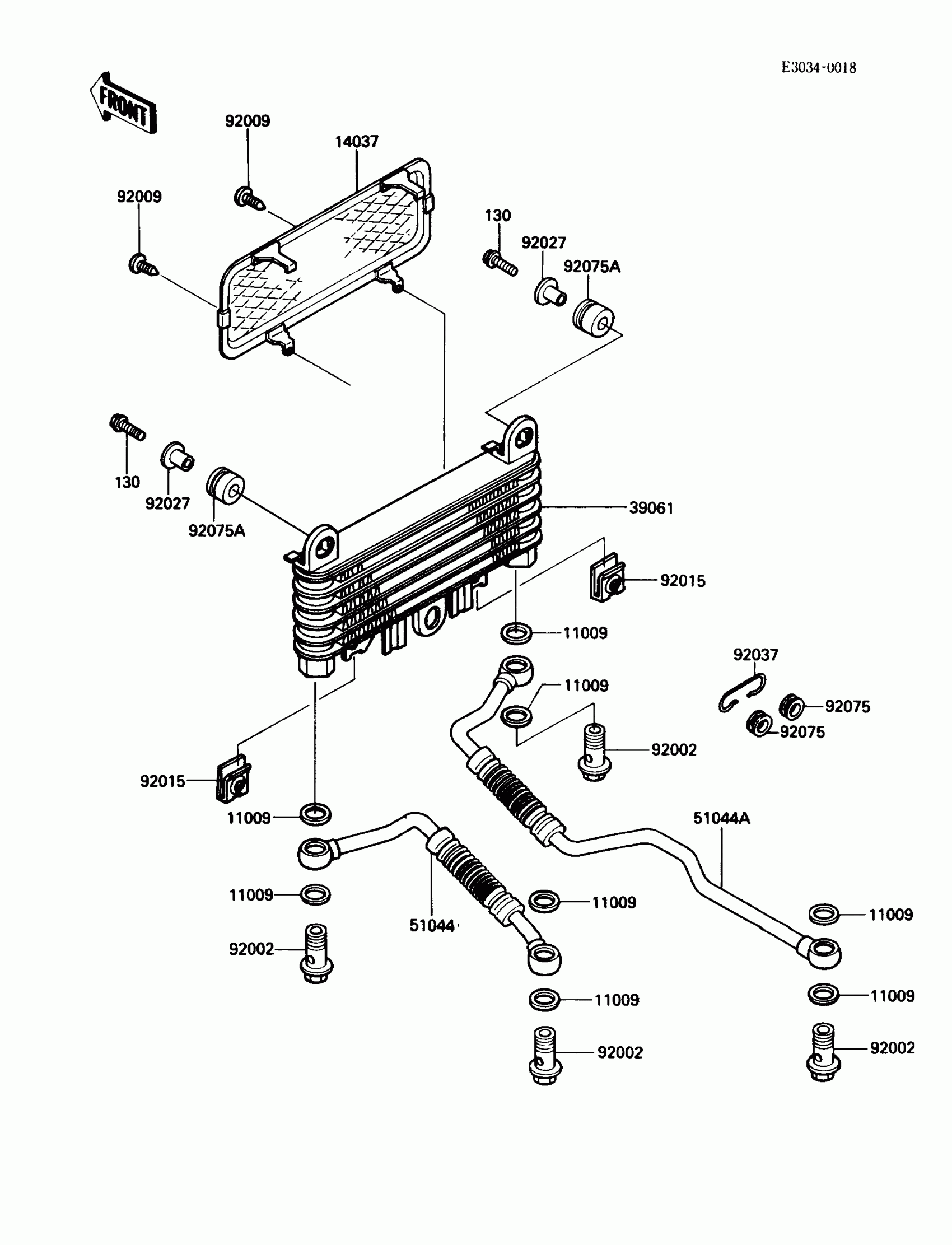

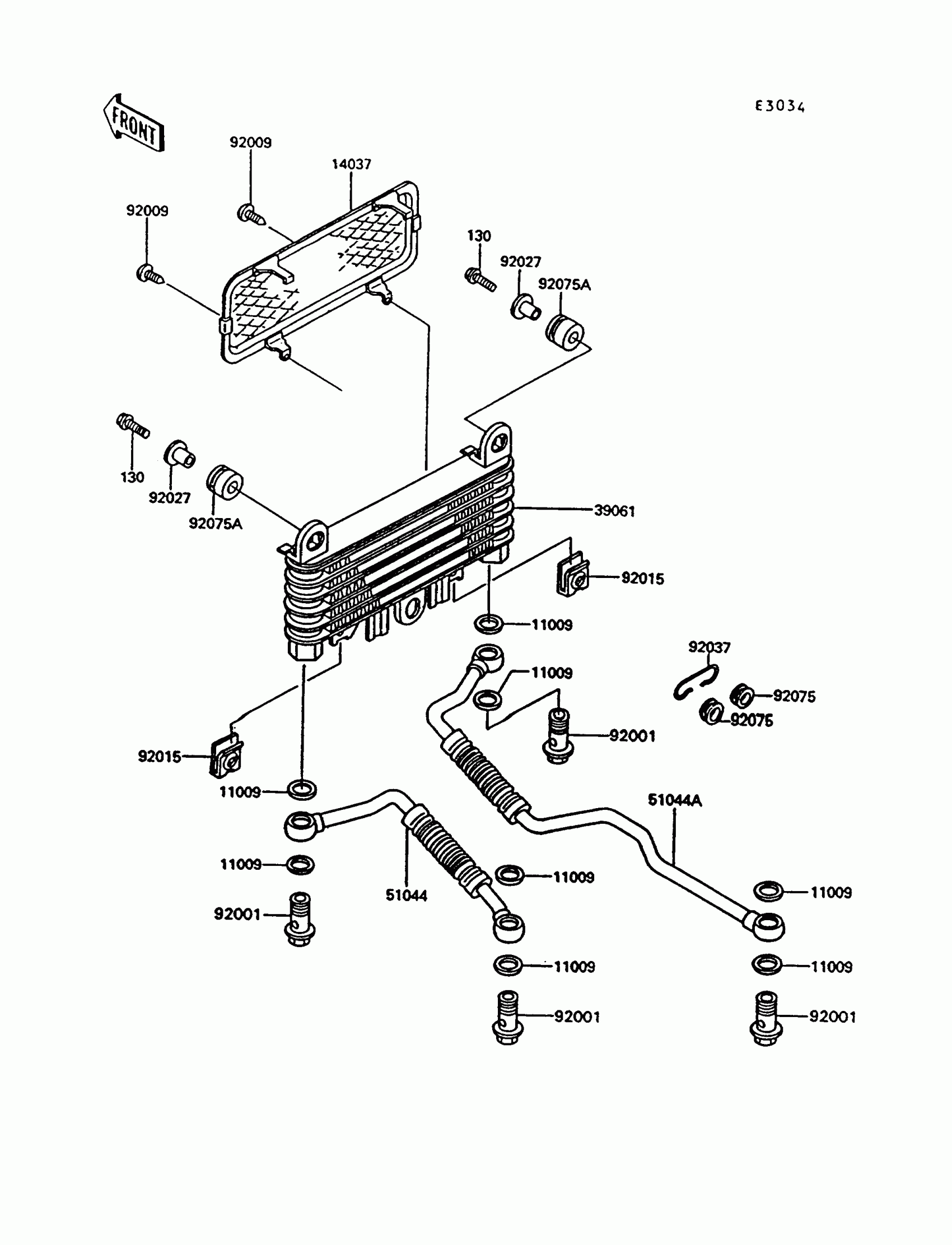

1988 Kawasaki Concours Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,14X19.5X1.4

11009-1461

1

$4.23

In stock

14037

SCREEN,OIL COOLER

14037-1073

1

$75.69

In stock

39061

OIL COOLER

39061-1117

1

$723.01

In stock

51044

1

$283.64

In stock

51044A

1

$283.64

In stock

92002

BOLT,14X28.5

92001-1930

1

$9.59

In stock

92009

SCREW,TAPPING,6MM

92009-1261

1
Out of stock

92015

NUT,6MM

92015-1582

1

$5.45

In stock

92027

1

$4.37

In stock

92037

CLAMP,OIL COOLER

92037-1905

1

$5.75

In stock

92075

DAMPER,OIL COOLER

92075-1942

1
Out of stock

92075A

DAMPER

92075-277

1

$2.20

In stock

130

BOLT-FLANGED

130J0620

1
Out of stock
