1991 Kawasaki Concours Camshaft/tensioner Diagram

← All diagrams

Find the part on the Camshaft/tensioner diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

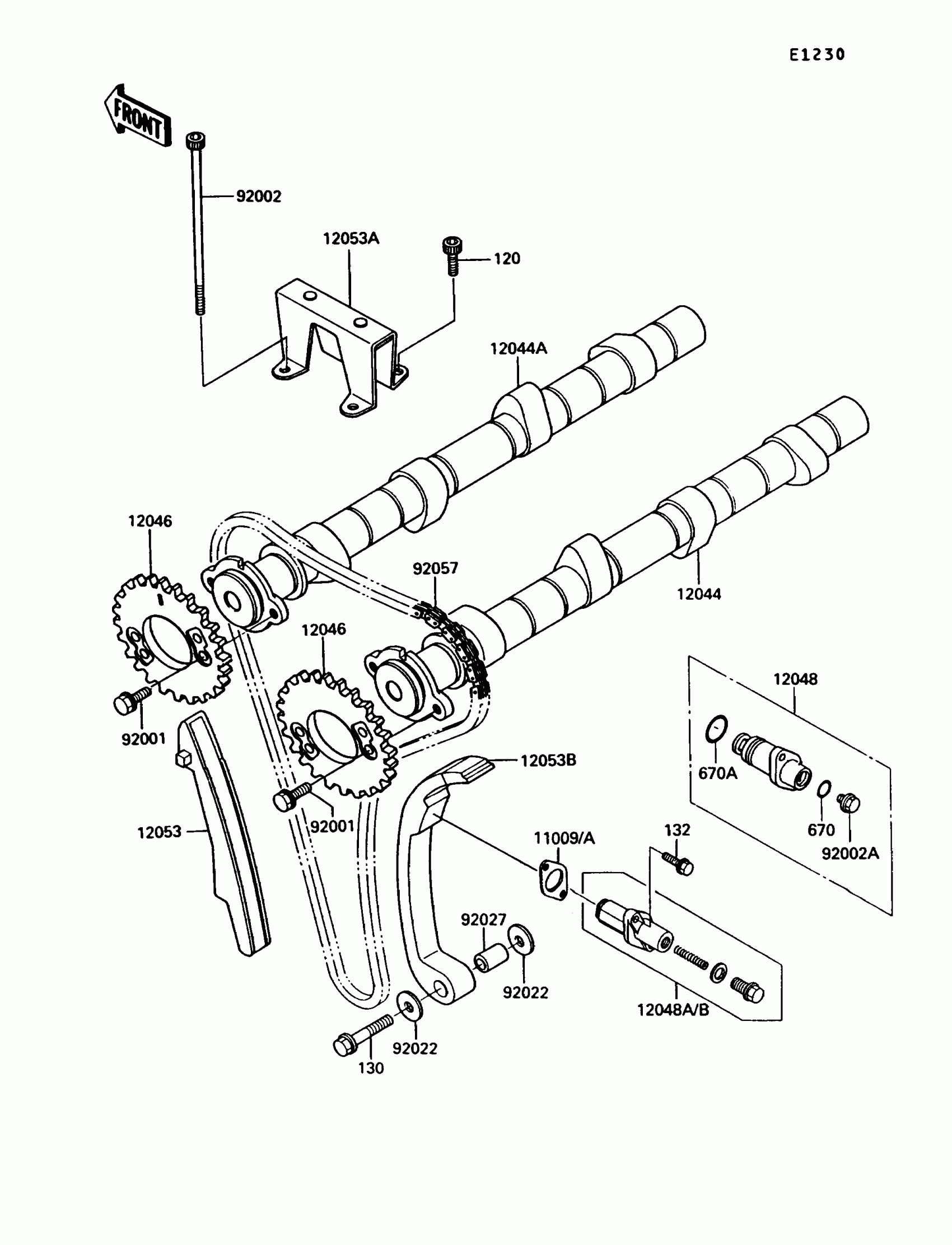

1991 Kawasaki Concours Camshaft/tensioner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TENSIONER

11009-1858

1
Out of stock

12044

CAMSHAFT-VALVE,INTAKE

12044-1151

1
Out of stock

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1152

1
Out of stock

12046

SPROCKET,CAMSHAFT,34T

12046-1082

1
Out of stock

12048A

TENSIONER-ASSY

12048-1089

1
Out of stock

12053

GUIDE-CHAIN,FR

12053-1114

1
Out of stock

12053A

GUIDE-CHAIN,UPP

12053-1115

1
Out of stock

12053B

GUIDE-CHAIN,RR

12053-1239

1
Out of stock

92001

BOLT,FLANGED,6X11

92003-208

1
Out of stock

92002

BOLT,6X118

92001-1904

1
Out of stock

92022

WASHER,8.2X19X2

92022-1533

1
Out of stock

92027

COLLAR,8.2X10.5X15.6

92027-1763

1
Out of stock

92057

CHAIN,CAMSHAFT

92057-1160

1
Out of stock

120

BOLT-SOCKET,6X14

120P0614

1
Out of stock

130

BOLT-FLANGED,8X35

130G0835

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock
