1988 Kawasaki Concours Cylinder Head Diagram

← All diagrams

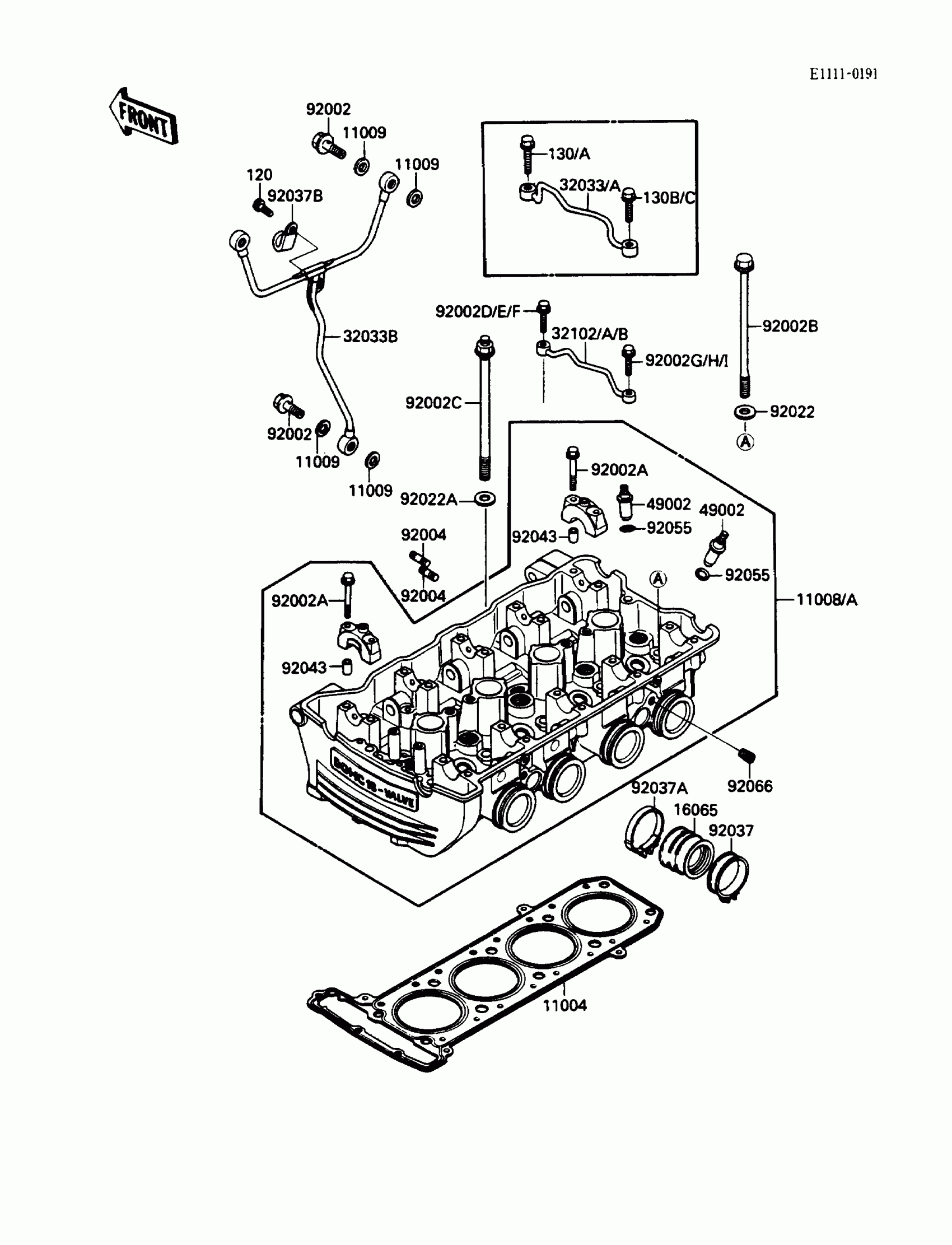

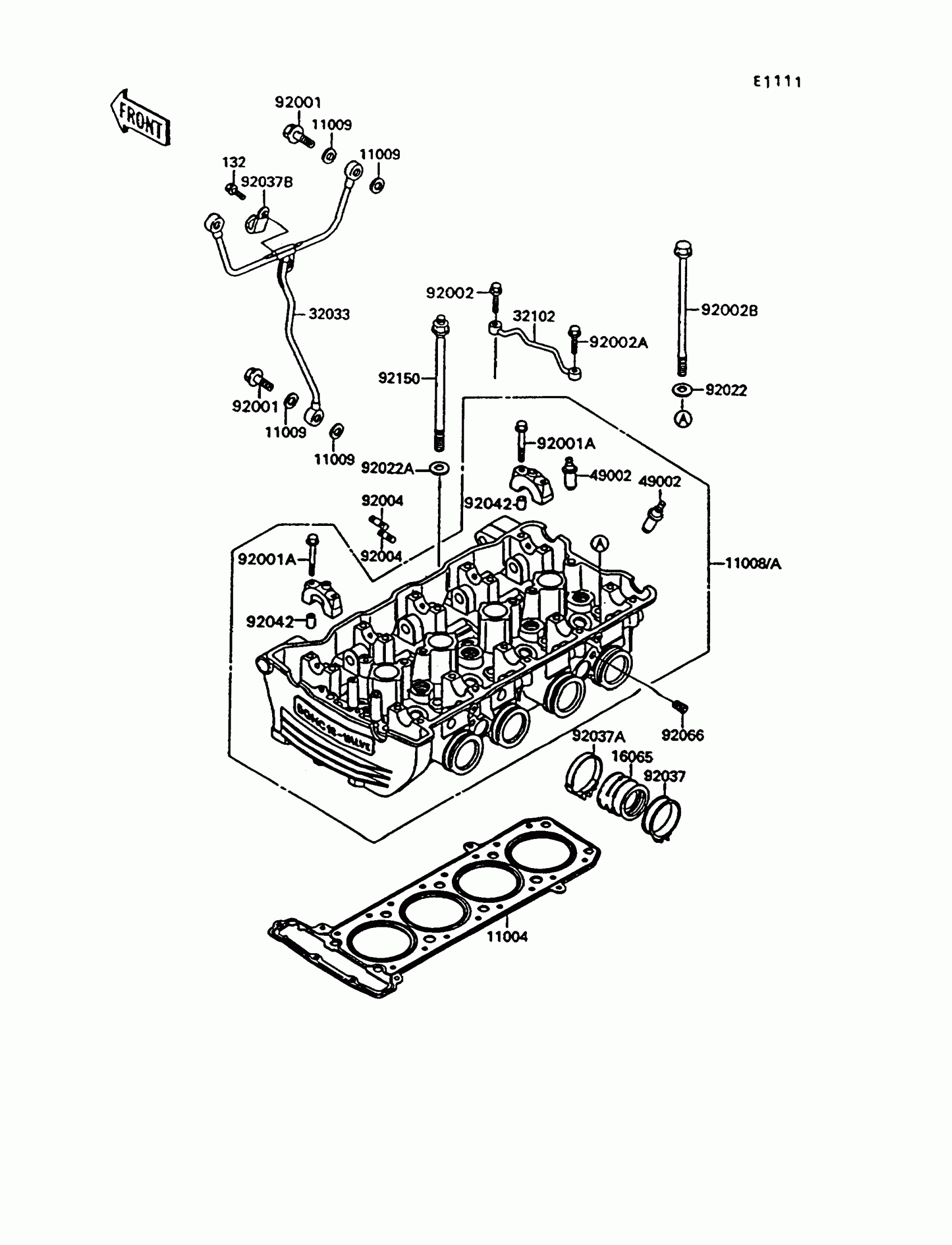

Find the part on the Cylinder Head diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Concours Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1148

1

$135.97

In stock

11008

HEAD-COMP-CYLINDER

11008-1177

1

$2,385.46

In stock

11008A

HEAD-COMP-CYLINDER

11008-1178

1
Out of stock

11009

GASKET,12.5X18X1.5

11009-1376

1

$1.56

In stock

16065

HOLDER-CARBURETOR

16065-1112

1

$26.56

In stock

32033B

PIPE,OIL PAN-HEAD

32033-1850

1

$115.69

In stock

32102

PIPE,CYLINDER HEAD

32102-1423

1

$43.71

In stock

49002

GUIDE-VALVE

49002-1052

1

$38.92

In stock

92002

BOLT,BANJO,12X23

92001-1871

1

$16.05

In stock

92002A

BOLT,6X50

92002-1872

1
Out of stock

92002B

BOLT,10X164

92001-1886

1

$14.49

In stock

92002C

BOLT,11X164

92002-1486

1

$18.51

In stock

92002D

BOLT,6X31.6

92002-1911

1
Out of stock

92002G

BOLT,6X26.6

92002-1912

1
Out of stock

92004

STUD,8X28

92004-1110

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1

$3.88

In stock

92022A

1

$3.43

In stock

92037

CLAMP,ID=53,BLACK

92037-1304

1

$8.16

In stock

92037A

CLAMP

92037-1523

1

$9.78

In stock

92037B

CLAMP,L=45

92037-1539

1

$4.42

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92066

PLUG,PT1/8X7

92066-1201

1

$5.32

In stock

120

BOLT-SOCKET,6X10

120S0610

1
Out of stock
