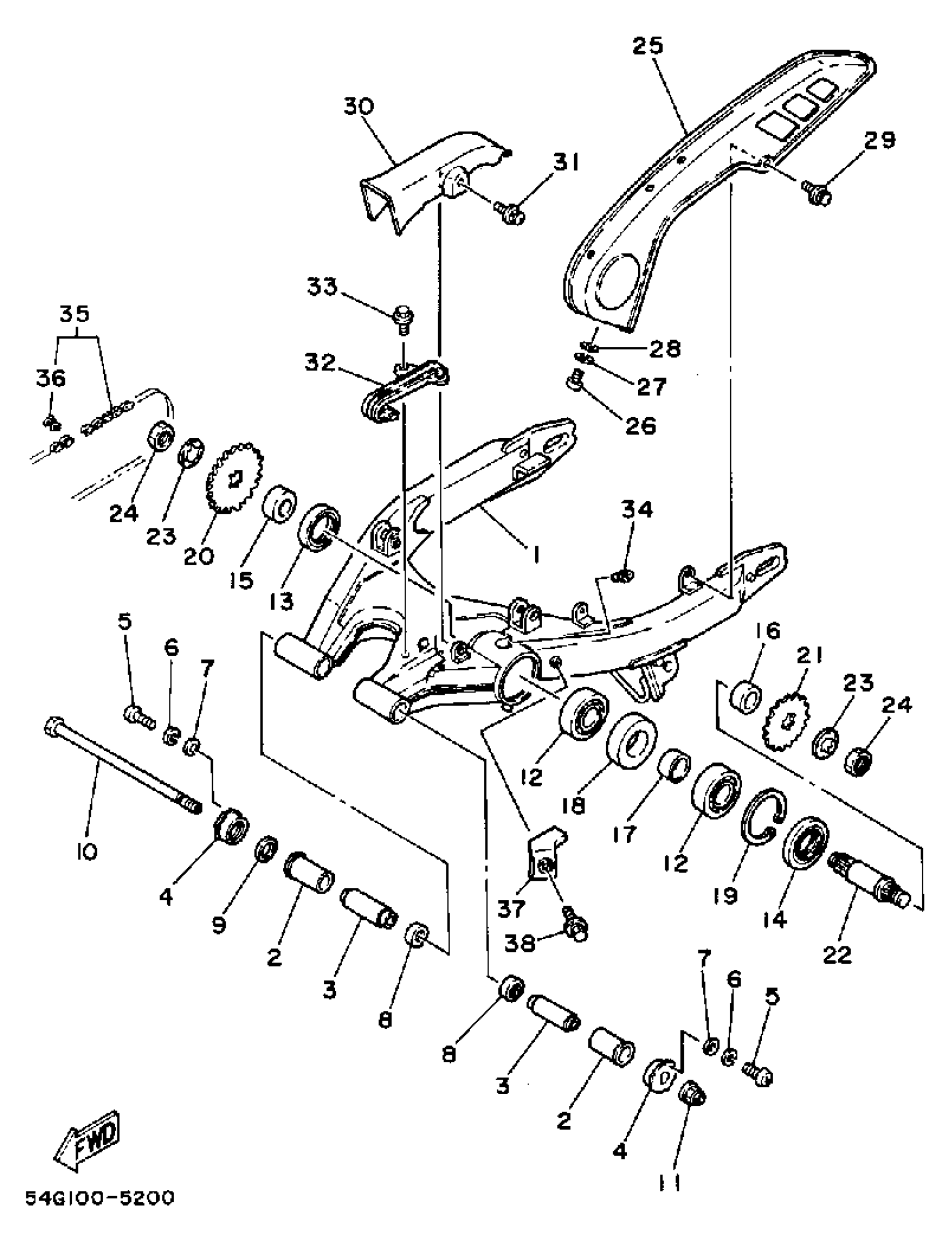

Find the part on the Swing Arm diagram for your 1985 Yamaha Big Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Big Wheel (BW200N) Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

54G-22110-01-FH

1
Out of stock

2

BUSH, SOLID 54G

90381-21058-00

1
Out of stock

3

COLLAR, DISTANCE

54G-22126-00-00

1
Out of stock

4

COVER, THRUST 1

54G-22128-00-00

1
Out of stock

5

SCREW, PAN

98517-06012-00

1

$3.14

In stock

6

WASHER, SPRING

92907-06100-00

1
Out of stock

7

1

$6.58

In stock

8

OIL SEAL

93109-20076-00

1
Out of stock

9

SHIM

54G-22127-00-00

1
Out of stock

10

SHAFT, PIVOT

1E2-22141-00-00

1
Out of stock

11

NUT, SELF LOCKING (1M1)

90185-12072-00

1

$8.31

In stock

12

BEARING (8R9)

93306-30536-00

—

$29.83

In stock

13

OIL SEAL, S-TYPE

93101-42018-00

1
Out of stock

14

OIL SEAL (35X62X6-371)

93102-35109-00

1
Out of stock

15

COLLAR 54G

90387-202L8-00

1
Out of stock

16

COLLAR 54G

90387-202L7-00

1
Out of stock

17

COLLAR

90387-257N4-00

—

$20.52

In stock

18

RUBBER

54G-2212A-00-00

1
Out of stock

19

CIRCLIP(MF1)

99009-62500-00

—

$6.23

In stock

20

SPROCKET,DRIVE 16T(54G1746160)

93852-16107-00

—
Out of stock

21

SPROCKET, DRIVE 14 (1G81746140)

93832-14044-00

1
Out of stock

22

SHAFT, PIVOT 2

54G-2214H-01-00

1
Out of stock

23

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

24

NUT (1L8)

90179-16226-00

—

$7.46

In stock

25

CHAIN CASE ASSY

54G-22310-00-00

—
Out of stock

26

SCREW, PAN

98517-06012-00

1

$3.14

In stock

27

WASHER, SPRING

92907-06100-00

1
Out of stock

28

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

29

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

—
Out of stock

30

CASE, CHAIN 2

54G-22312-00-00

1
Out of stock

31

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

—
Out of stock

32

SEAL, GUARD

54G-22151-00-00

1
Out of stock

33

BOLT, WITH WASHER

90119-06242-00

—

$5.86

In stock

34

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

35

CHAIN(1RL)

94581-34042-00

—
Out of stock

36

. JOINT, CHAIN

94681-34011-00

1
Out of stock

37

PROTECTOR, CHAIN

54G-22147-00-00

1
Out of stock

38

BOLT, WITH WASHER (10V)

90119-06063-00

—

$6.29

In stock
