1985 Yamaha BIG Wheel (BW200N) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1985 Yamaha BIG Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

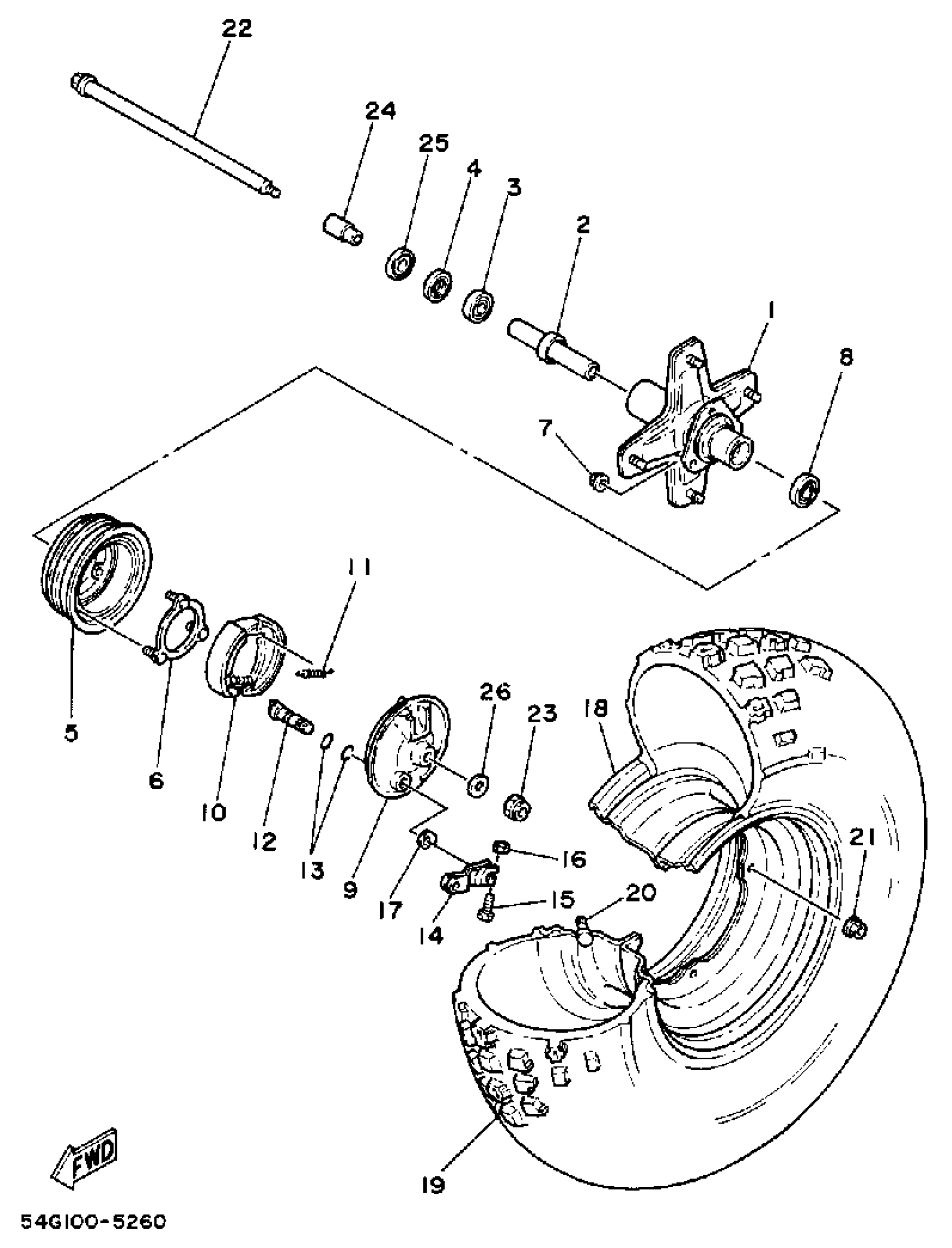

1985 Yamaha BIG Wheel (BW200N) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

54G-25111-00-91

1
Out of stock

2

SPACER, BEARING

29U-25117-00-00

1
Out of stock

3

1

$31.64

In stock

4

OIL SEAL (5V6)

93102-23252-00

1

$12.17

In stock

5

DRUM, BRAKE

5V7-2511E-00-35

—

$219.32

In stock

6

RING 1

54G-25185-00-00

—

$23.06

In stock

7

NUT (22U)

90179-08410-00

1

$4.86

In stock

8

1

$31.64

In stock

9

PLATE, BRAKE SHOE

5V7-25121-00-98

1
Out of stock

10

BRAKE SHOE KIT

4BE-W253E-00-00

1

$22.27

In stock

11

SPRING, TENSION

90506-15260-00

1

$5.75

In stock

12

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

13

O-RING (26H)

93210-14579-00

1

$5.69

In stock

14

LEVER, CAMSHAFT 1

21V-25155-00-00

1
Out of stock

15

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

PLATE, INDICATOR

5V7-2513A-00-00

1
Out of stock

18

WHEEL, FRONT

(38W-25180-00-HM)

1
Out of stock

19

DUN 25X8-12 KT646M

94108-121R4-00

1
Out of stock

20

VALVE, RIM(2GH)

93900-00030-00

—

$14.46

In stock

21

NUT (22U)

90179-08410-00

1

$4.86

In stock

22

AXLE, WHEEL

54G-25181-01-00

1
Out of stock

23

NUT, SELF-LOCKING (1J7)

90185-14070-00

—

$10.45

In stock

24

COLLAR 54G

90387-172L6-00

1
Out of stock

25

COVER, HUB DUST

5V6-25118-00-00

1
Out of stock

26

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock
