1985 Yamaha BIG Wheel (BW200N) Electrical 1 Diagram

← All diagrams

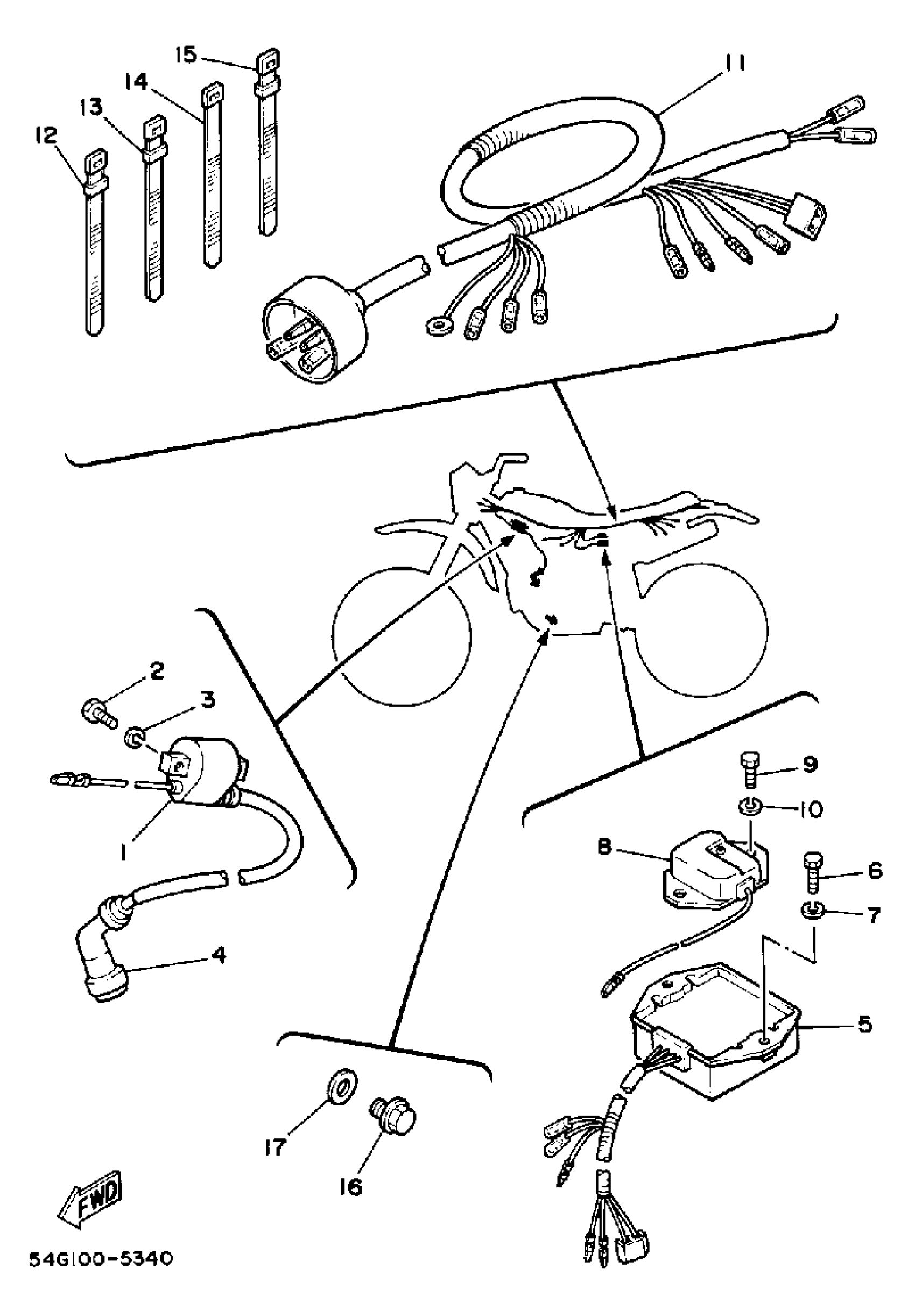

Find the part on the Electrical 1 diagram for your 1985 Yamaha BIG Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha BIG Wheel (BW200N) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

4RP-82310-26-00

1
Out of stock

2

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

PLUG CAP ASSY

3NS-82370-00-00

1

$31.58

In stock

5

CDI UNIT ASSEMBLY

54G-85540-M0-00

1
Out of stock

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

9

BOLT (661)

97013-06012-00

1

$4.71

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

WIRE HARNESS ASSEMBLY

54G-82590-00-00

1
Out of stock

12

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

13

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

14

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

15

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

16

—

$8.44

In stock

17

GASKET (5R6)

90430-10171-00

—

$3.17

In stock
