1985 Yamaha BIG Wheel (BW200N) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1985 Yamaha BIG Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

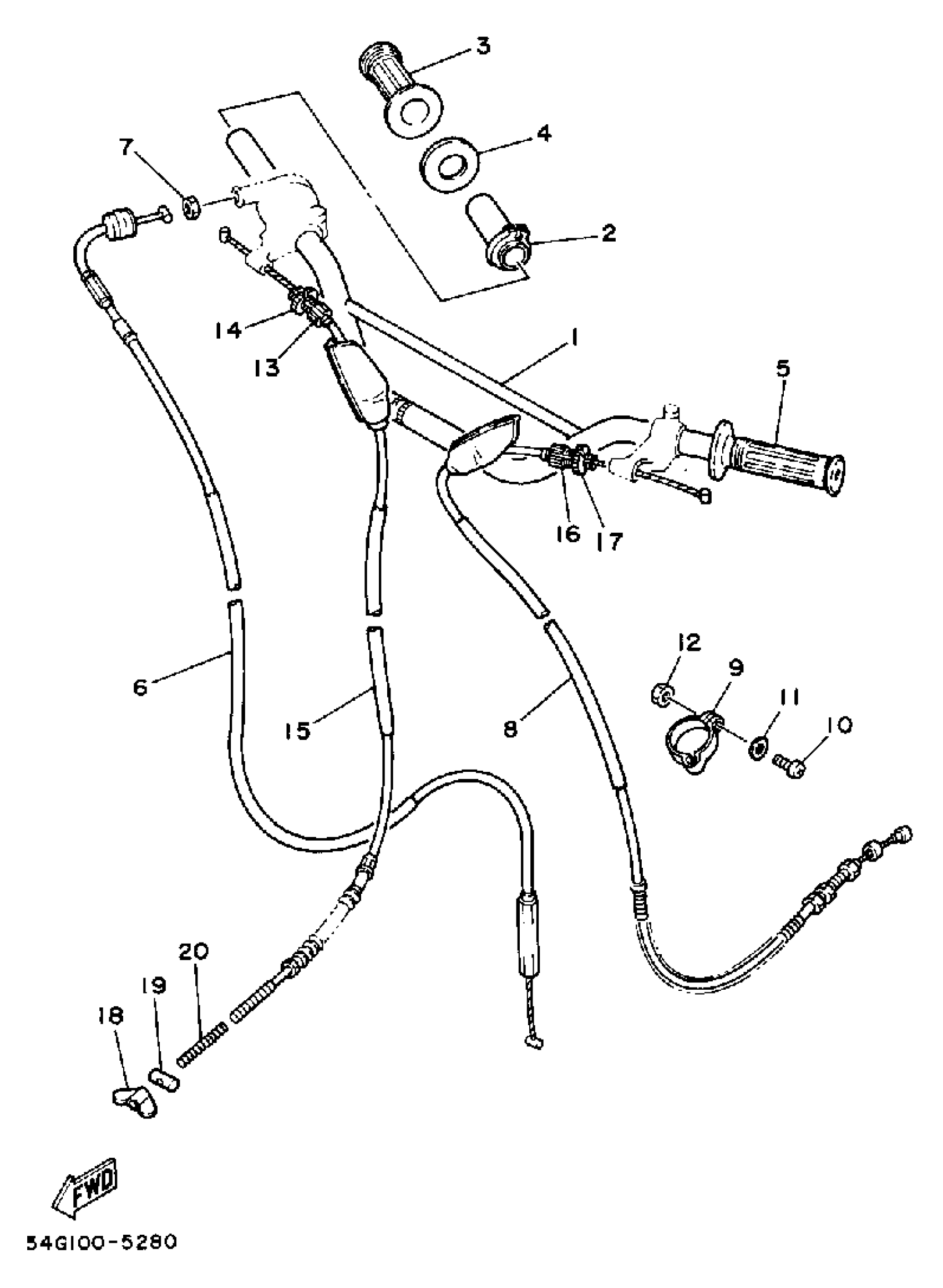

1985 Yamaha BIG Wheel (BW200N) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

1LN-26111-00-00

1
Out of stock

2

TUBE, GUIDE.

434-26243-00-00

1
Out of stock

3

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

4

RING, LEAF

1M1-26249-01-00

1
Out of stock

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

6

CABLE, THROTTLE 1

15A-26311-00-00

—

$67.03

In stock

7

NUT, HEXAGON

90170-10038-00

1
Out of stock

8

CABLE, CLUTCH

1RL-26335-00-00

—

$38.24

In stock

9

BAND

3Y1-26397-00-00

1
Out of stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

11

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

BOLT

90123-08002-00

1

$8.93

In stock

14

NUT

90179-08030-00

1

$3.78

In stock

15

CABLE, BRAKE

54G-26341-00-00

1
Out of stock

16

BOLT

90123-08002-00

1

$8.93

In stock

17

NUT

90179-08030-00

1

$3.78

In stock

18

NUT (25K)

90179-06411-00

—

$5.10

In stock

19

PIN 1562723700

90249-12008-00

—

$4.70

In stock

20

SPRING, COMPRESSION (29U)

90501-10782-00

—
Out of stock
