1985 Yamaha BIG Wheel (BW200N) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1985 Yamaha BIG Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

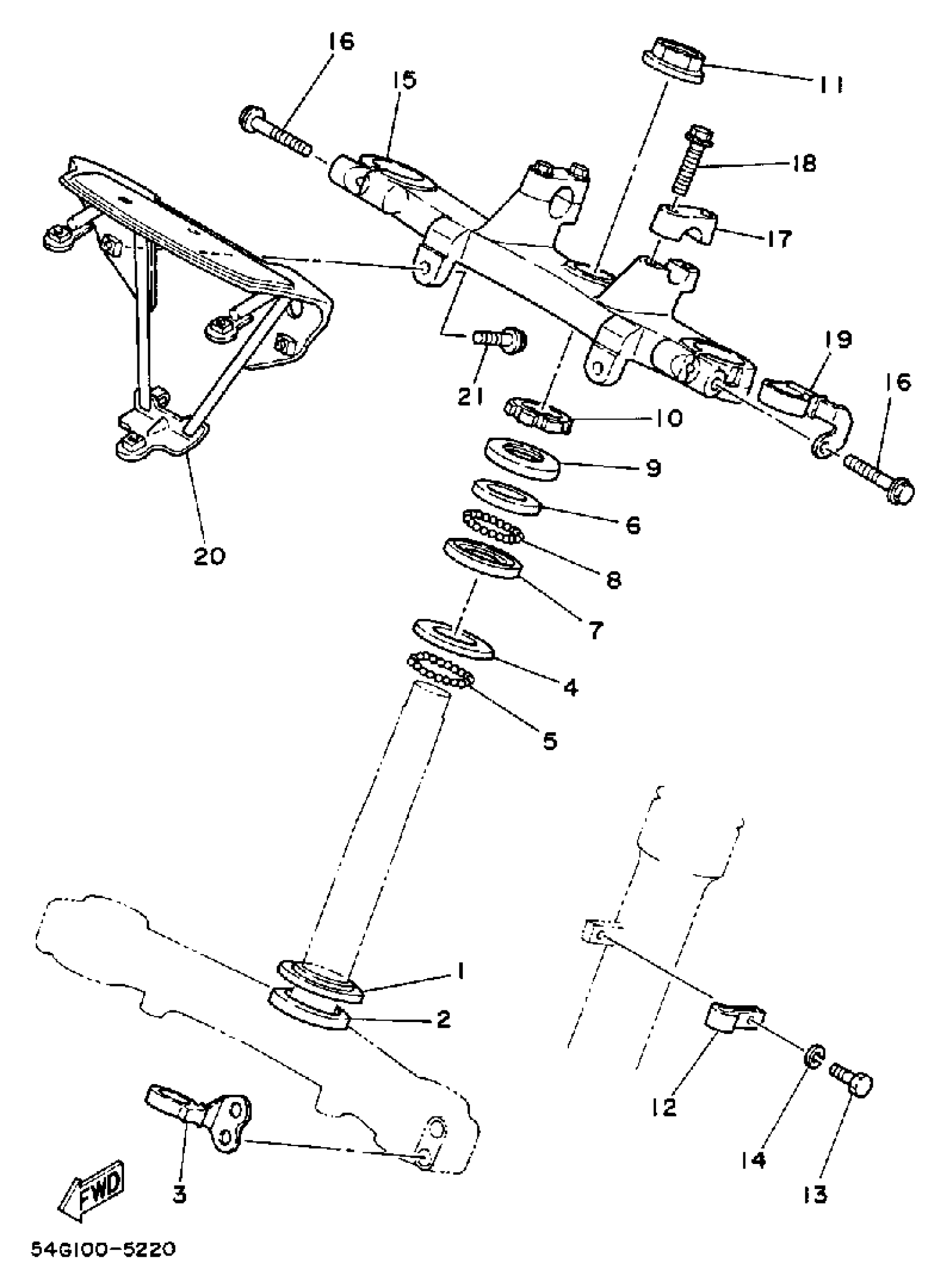

1985 Yamaha BIG Wheel (BW200N) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

3

GUIDE, WIRE

3R4-23389-00-00

1
Out of stock

4

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

5

BALL

93501-04011-00

1
Out of stock

6

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

7

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

8

BALL

93503-16003-00

1

$2.14

In stock

9

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

10

NUT

90179-25004-00

1

$20.78

In stock

11

NUT

90179-22330-00

1
Out of stock

12

HOLDER, CABLE 2

3Y1-23319-00-00

—

$4.42

In stock

13

BOLT, HEXAGON

97017-06012-00

1

$2.62

In stock

14

WASHER, SPRING

92907-06100-00

1
Out of stock

15

CROWN, HANDLE

54G-23435-00-98

1
Out of stock

16

BOLT, FLANGE

95814-08040-00

—

$3.15

In stock

17

HOLDER, HANDLE UPPER

1E6-23441-00-00

—

$22.38

In stock

18

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

19

GUIDE, CABLE

5X4-23389-01-00

1
Out of stock

20

STAY, HEADLIGHT

54G-23174-00-00

1
Out of stock

21

BOLT, FLANGE(8AB)

95817-08020-00

—

$7.00

In stock
