1985 Yamaha BIG Wheel (BW200N) Front Fork Diagram

← All diagrams

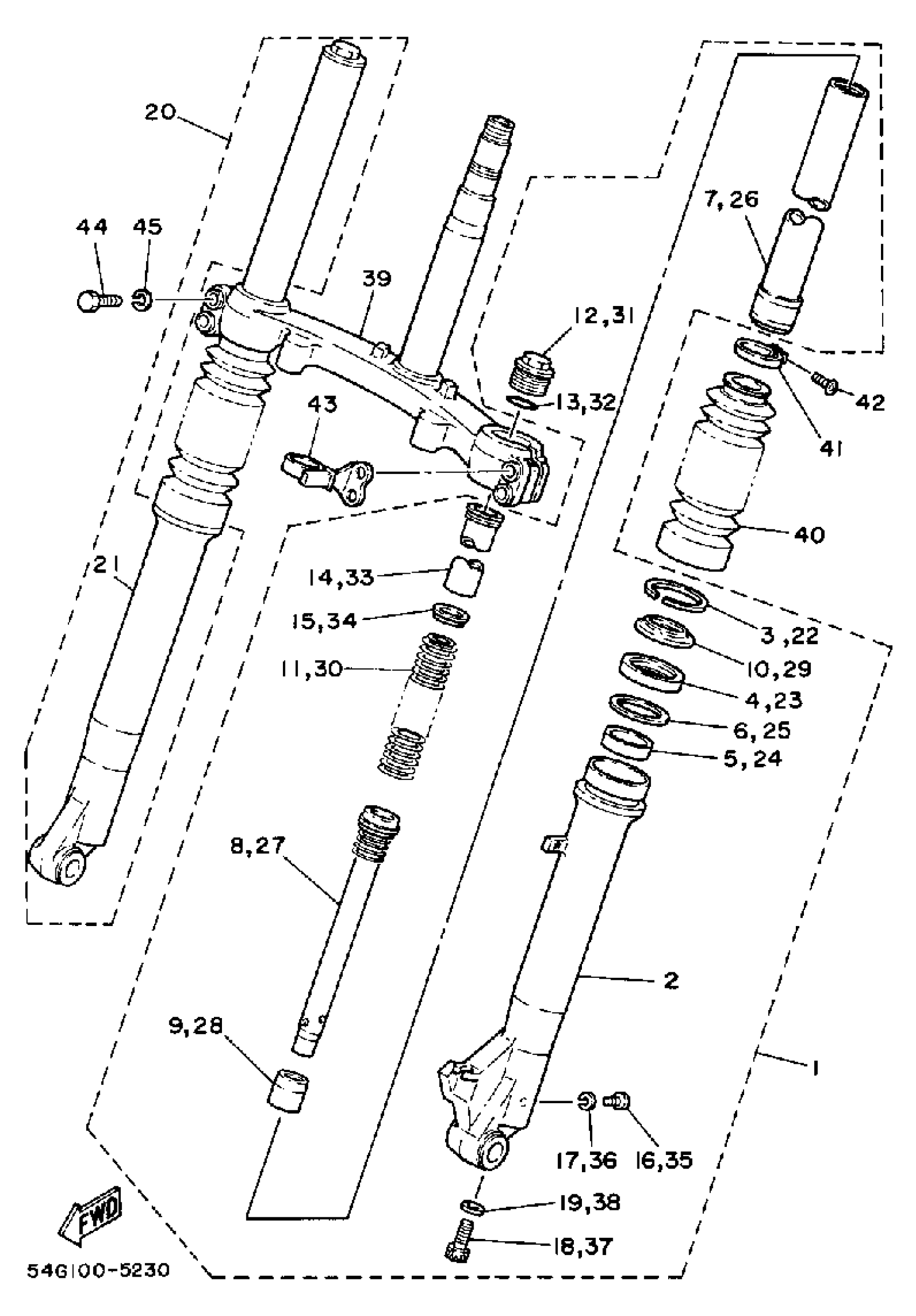

Find the part on the Front Fork diagram for your 1985 Yamaha BIG Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha BIG Wheel (BW200N) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY LH

54G-23102-00-00

1
Out of stock

2

. TUBE, OUTER 1

54G-23126-00-00

1
Out of stock

3

RING, SNAP

22W-23153-L0-00

1

$7.51

In stock

4

OIL SEAL

22W-23145-L0-00

1

$16.94

In stock

5

METAL, SLIDE 1

4HC-23125-20-00

1
Out of stock

6

WASHER, OIL SEAL

22W-23146-L0-00

1
Out of stock

7

. INNER TUBE 1

54G-23110-00-00

1
Out of stock

8

. CYLINDER COMP, FRONT FORK

54G-23170-00-00

1
Out of stock

9

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

10

SEAL, DUST

54G-23144-00-00

1

$13.89

In stock

11

SPRING, FRONT FORK

(54G-23141-00-00)

1
Out of stock

12

BOLT, CAP

(54G-23111-00-00)

1
Out of stock

13

O-RING

3J2-23114-00-00

1

$7.51

In stock

14

SPACER

(36X-23118-00-00)

1
Out of stock

15

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

16

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

17

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

18

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

19

GASKET

509-23158-L0-00

—

$14.34

In stock

20

FRONT FORK ASSEMBLY RH

54G-23103-00-00

1
Out of stock

21

. TUBE, OUTER 2

54G-23136-00-00

1
Out of stock

22

RING, SNAP

22W-23153-L0-00

1

$7.51

In stock

23

OIL SEAL

22W-23145-L0-00

1

$16.94

In stock

24

METAL, SLIDE 1

4HC-23125-20-00

1
Out of stock

25

WASHER, OIL SEAL

22W-23146-L0-00

1
Out of stock

26

. INNER TUBE 1

54G-23110-00-00

1
Out of stock

27

. CYLINDER COMP, FRONT FORK

54G-23170-00-00

1
Out of stock

28

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

29

SEAL, DUST

54G-23144-00-00

1

$13.89

In stock

30

SPRING, FRONT FORK

(54G-23141-00-00)

1
Out of stock

31

BOLT, CAP

(54G-23111-00-00)

1
Out of stock

32

O-RING

3J2-23114-00-00

1

$7.51

In stock

33

SPACER

(36X-23118-00-00)

1
Out of stock

34

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

35

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

36

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

37

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

38

GASKET

509-23158-L0-00

—

$14.34

In stock

39

UNDER BRACKET

54G-23340-00-00

1
Out of stock

40

BOOT

54G-23191-00-00

1
Out of stock

41

BAND, BOOT

2K5-23192-00-00

—

$19.11

In stock

42

SCREW

509-23194-L0-00

—

$4.12

In stock

43

GUIDE, WIRE

3R4-23389-00-00

—
Out of stock

44

BOLT

97013-08035-00

—

$4.80

In stock

45

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
