2001 Yamaha BR250TF 8BD8 Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

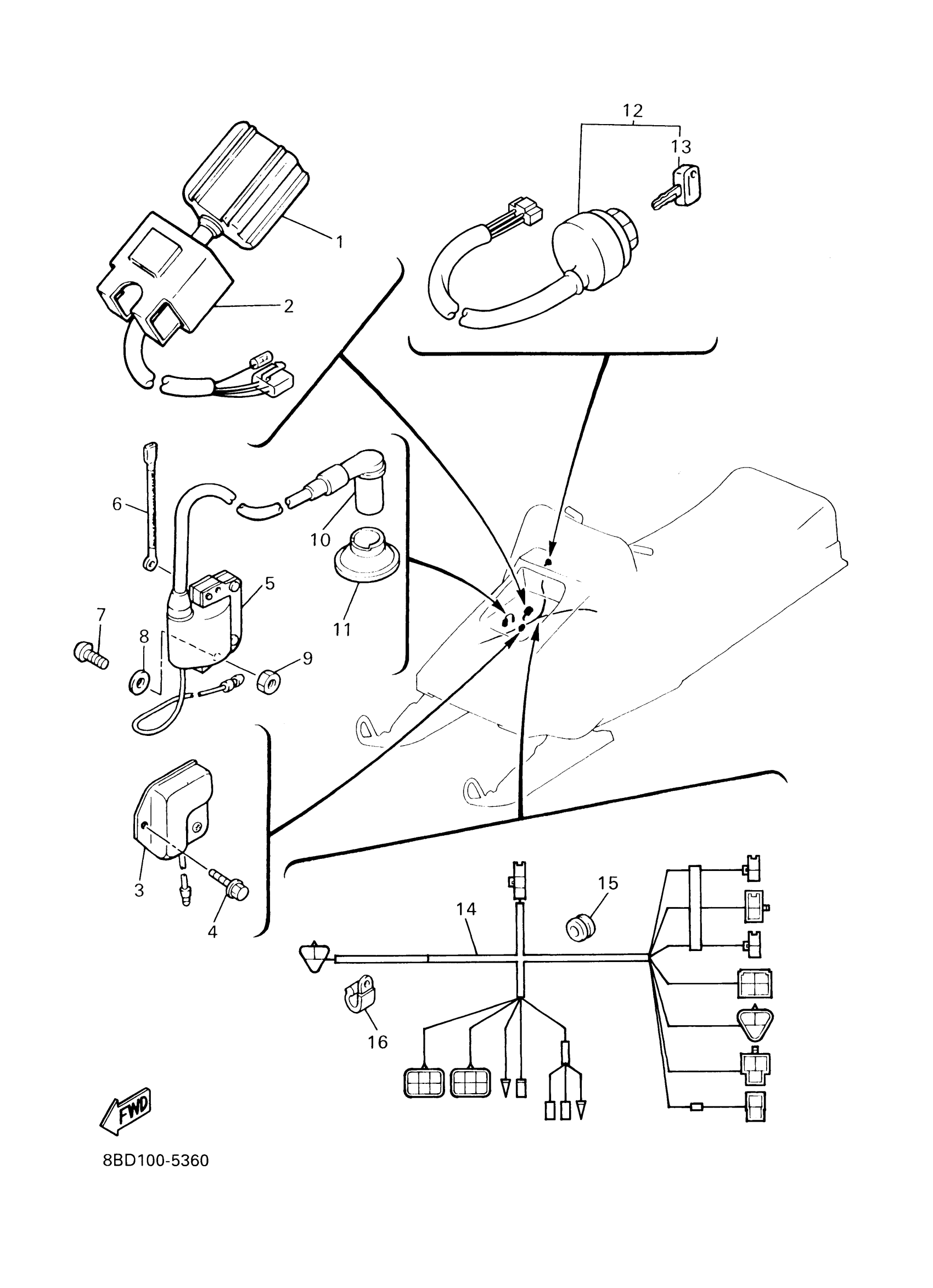

2001 Yamaha BR250TF 8BD8 Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSY

8AU-85540-00-00

1

$192.65

In stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

—
Out of stock

4

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

5

IGNITION COIL ASSY

86B-82310-13-00

1
Out of stock

6

WIRE, SUB-LEAD

83Y-82318-00-00

1
Out of stock

7

SCREW,PAN HEAD

98580-06540-00

1
Out of stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

NUT(6TA)

95317-06600-00

1

$2.69

In stock

10

PLUG CAP ASSY

85G-82370-20-00

1

$28.09

In stock

11

SEAL

8G5-82372-00-00

1

$4.66

In stock

12

MAIN SWITCH ASSY

8R4-82510-20-00

1

$109.02

In stock

13

CAP, KEY

526-82579-00-00

1

$6.72

In stock

14

WIRE HARNESS ASSY

8BD-82590-00-00

1
Out of stock

15

GROMMET (2N3)

90480-16233-00

1

$6.82

In stock

16

CLAMP

90465-08028-00

1

$4.62

In stock
