2001 Yamaha BR250TF 8BD8 Handle Switch. Lever Diagram

← All diagrams

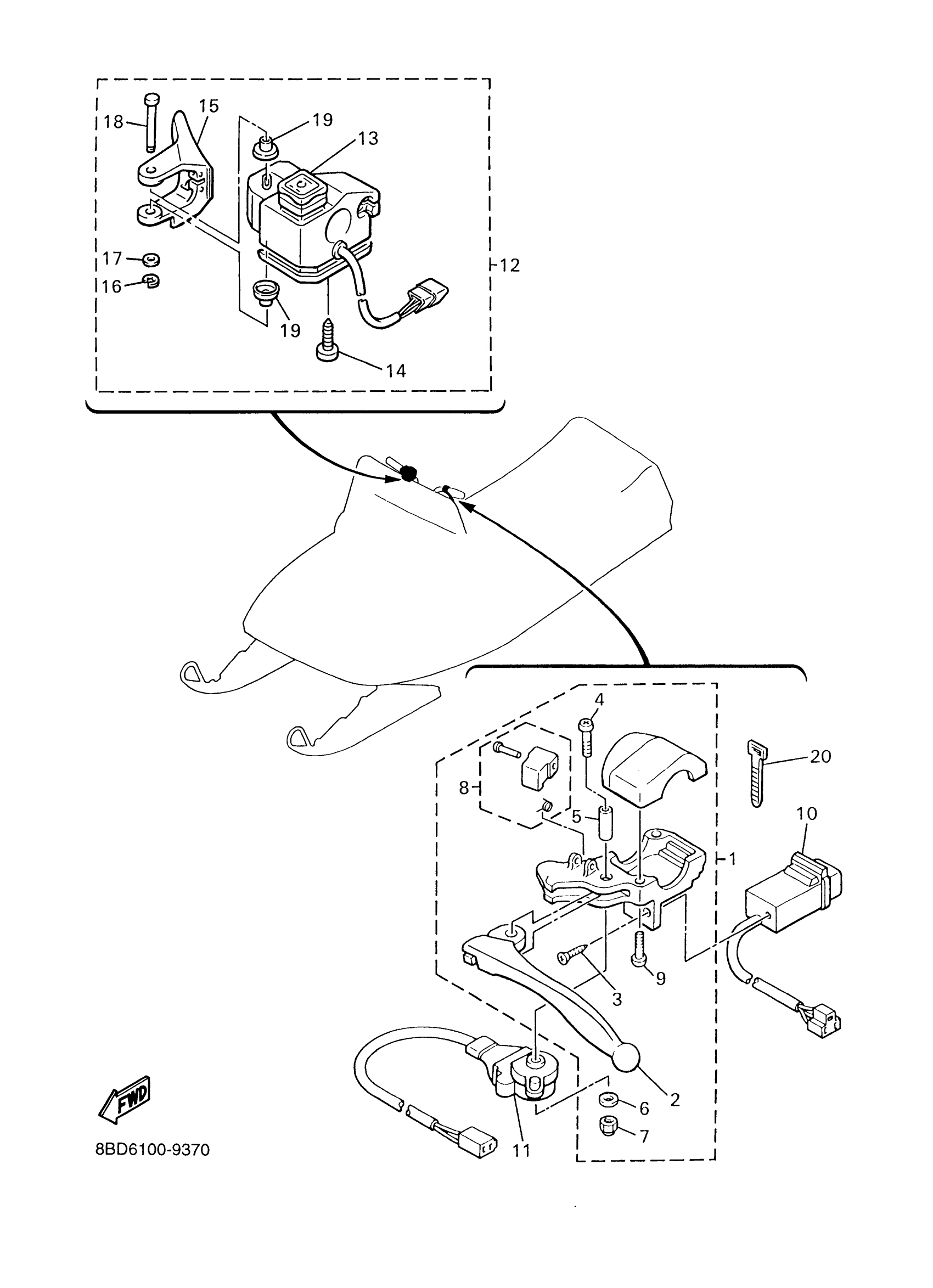

Find the part on the Handle Switch. Lever diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Handle Switch. Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (LEFT)

8R4-W8291-02-00

1
Out of stock

2

LEVER L

803-83912-00-38

1
Out of stock

3

. SCREW, TAPPING

97780-30312-00

1
Out of stock

4

SCREW, PAN HEAD(89B)

90157-05114-00

—

$3.08

In stock

5

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

6

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

7

NUT, NYLON

95707-05300-00

1

$2.74

In stock

8

LEVER LOCK ASSY

8E3-W8393-01-00

1
Out of stock

9

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

10

BEAM SWITCH ASSY

8H8-83950-01-00

1

$68.89

In stock

11

STOP SWITCH ASSY

8R4-82530-00-00

1

$27.65

In stock

12

LEVER HOLDER ASSY (RIGHT)

8AD-82720-00-00

1

$144.91

In stock

13

ENGINE STOP SWITCH ASSY

8AD-82575-09-00

—

$117.92

In stock

14

SCREW, ADJUSTING

8R6-83928-00-00

1

$2.83

In stock

15

LEVER, THROTTLE

8V0-42138-00-00

1

$55.57

In stock

16

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

17

WASHER, SPECIAL

85G-83663-00-00

—

$7.22

In stock

18

SHAFT

8R6-8399F-00-00

—

$10.85

In stock

19

CAP 1

85G-83956-00-00

—

$6.66

In stock

20

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
