2001 Yamaha BR250TF 8BD8 Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

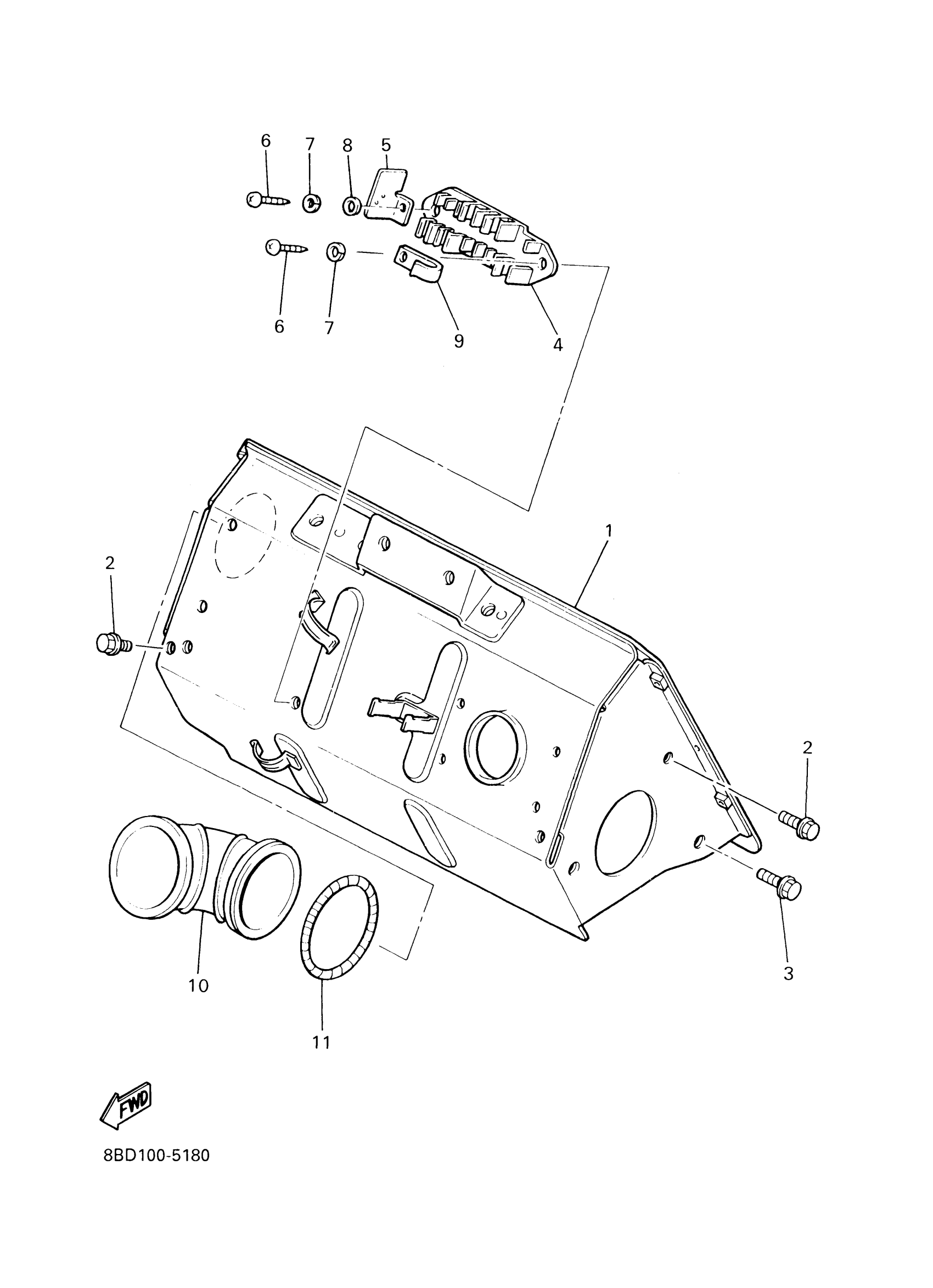

2001 Yamaha BR250TF 8BD8 Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

8BD-23871-00-00

—

$193.46

In stock

2

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

3

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

4

HOLDER, COUPLER

8F3-21794-00-00

—

$7.18

In stock

5

SHIELD, HEAT

8AE-23892-00-00

—

$4.80

In stock

6

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

7

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

8

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

9

CLAMP

90465-08028-00

1

$4.62

In stock

10

PIPE, SUCTION

8A5-14423-00-00

1
Out of stock

11

1

$6.89

In stock
