2001 Yamaha BR250TF 8BD8 Generator Diagram

← All diagrams

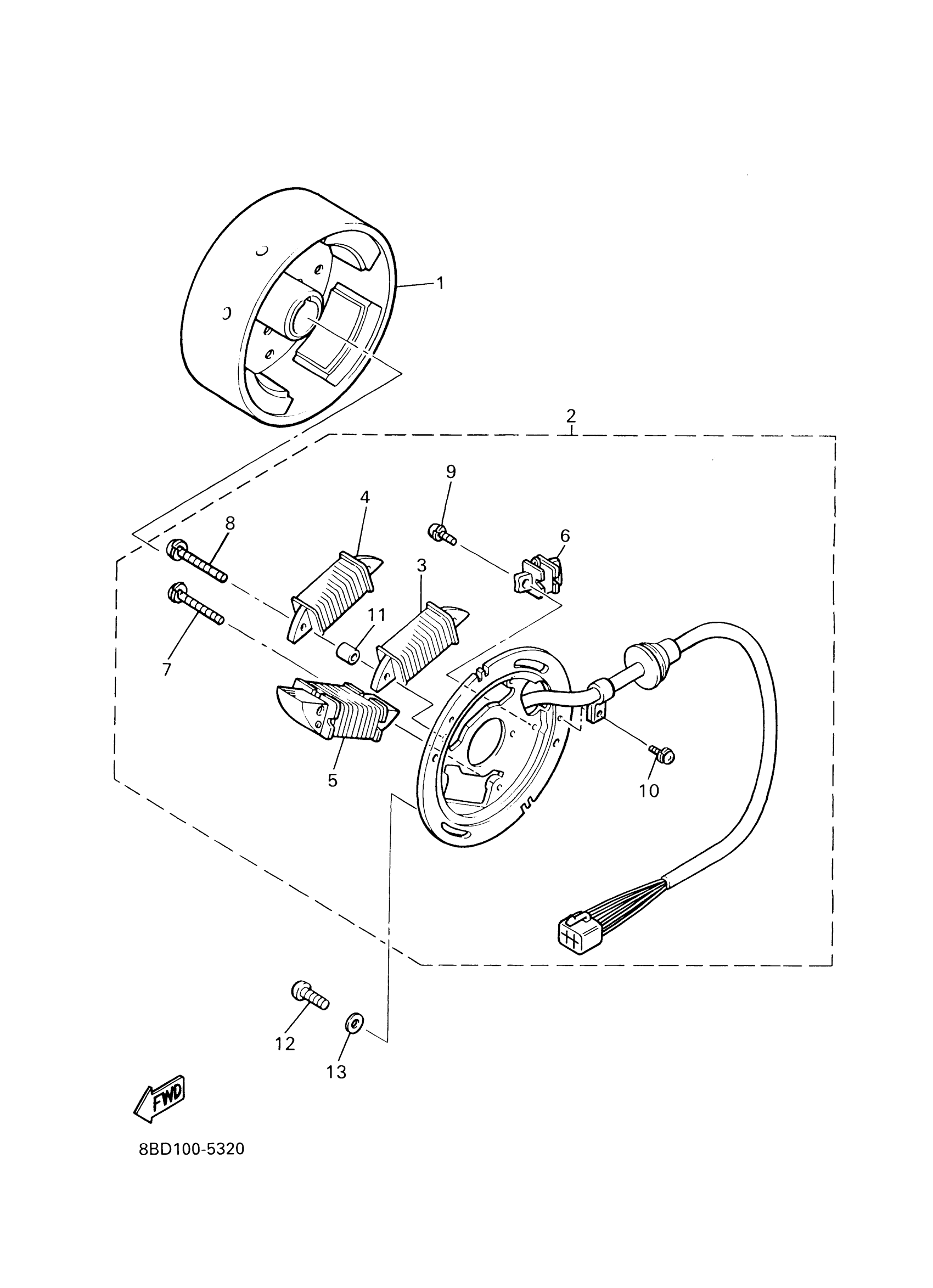

Find the part on the Generator diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

85L-85550-02-00

1

$261.66

In stock

2

BASE ASSY

8BD-85560-01-00

1
Out of stock

3

COIL, CHARGE

81L-85520-M0-00

—

$94.88

In stock

4

COIL, LIGHTING 2

81L-81314-M0-00

—

$95.42

In stock

5

COIL, LIGHTING 1

82H-81313-M0-00

—

$82.72

In stock

6

PULSER ASSY

8R4-85580-M0-00

—

$148.80

In stock

7

SCREW, WITH WASHER(81E)

90159-05129-00

1
Out of stock

8

SCREW, WITH WASHER(81E)

90159-05130-00

1

$1.49

In stock

9

SCREW, PAN HEAD

98517-04012-00

1

$3.28

In stock

10

SCREW, PAN HEAD WITH WASHER

97607-04108-00

1
Out of stock

11

COLLAR (1T2)

90387-07598-00

1

$4.83

In stock

12

SCREW, BIND (705)

98980-06016-00

1
Out of stock

13

WASHER, PLATE 6261117600

90201-06043-00

1
Out of stock
