2001 Yamaha BR250TF 8BD8 Meter Diagram

← All diagrams

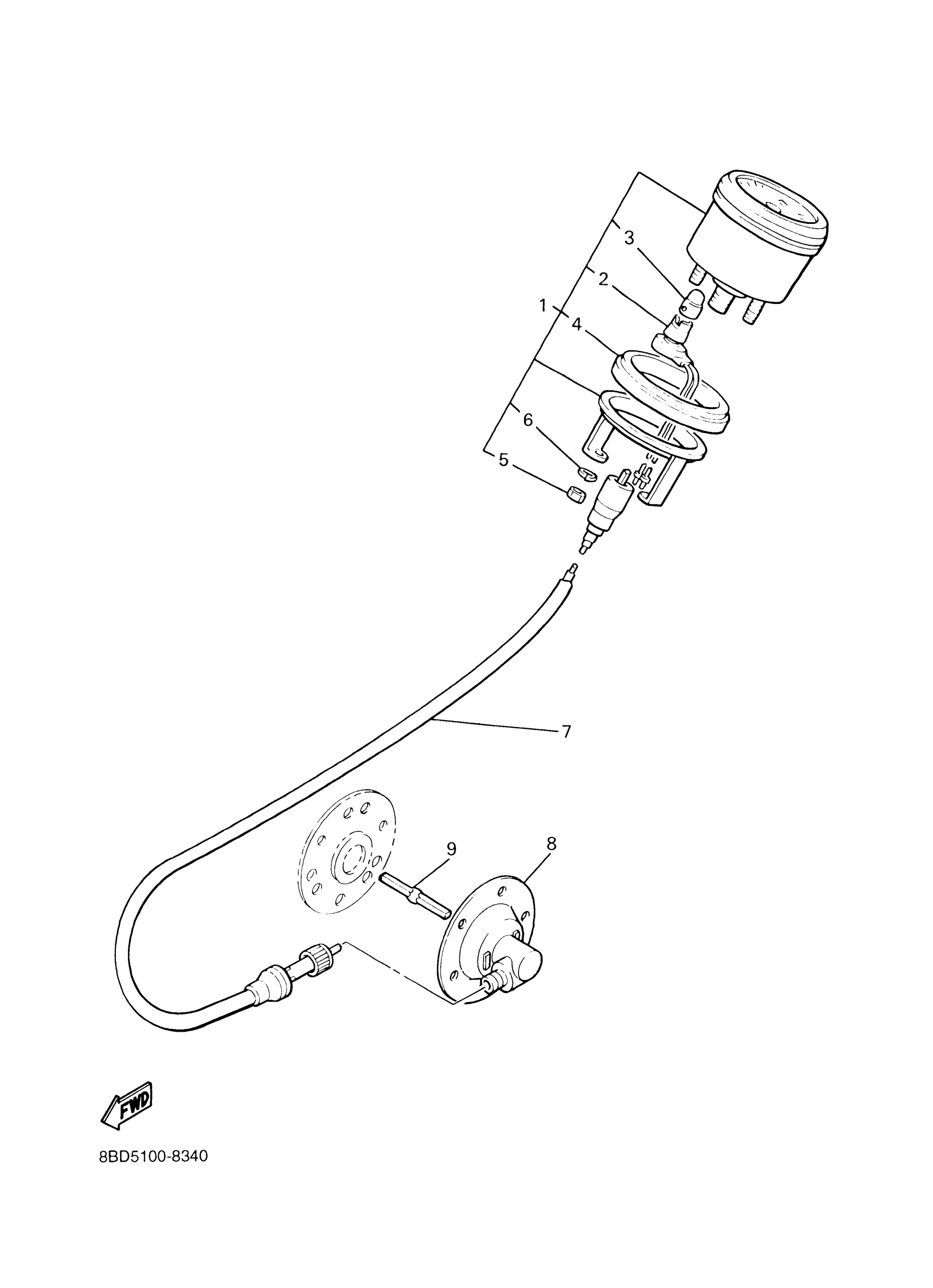

Find the part on the Meter diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. SPEEDOMETER ASSY (MILE/H)

80V-83510-40-00

1
Out of stock

2

. SOCKET, METER

8JX-83536-A0-00

1
Out of stock

3

. BULB (12V-34W T10)

4G1-884744-00-00

1
Out of stock

4

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

5

NUT, HEXAGON

95317-05600-00

1

$1.10

In stock

6

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

7

SPEEDOMETER CABLE ASSY

8Y8-83550-00-00

1

$32.05

In stock

8

METER GEAR HOUSING COMP

8Y1-47700-00-00

1

$64.45

In stock

9

JOINT

8K4-47715-00-00

1

$4.60

In stock
