1996 Kawasaki Bayou 220 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1996 Kawasaki Bayou 220, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

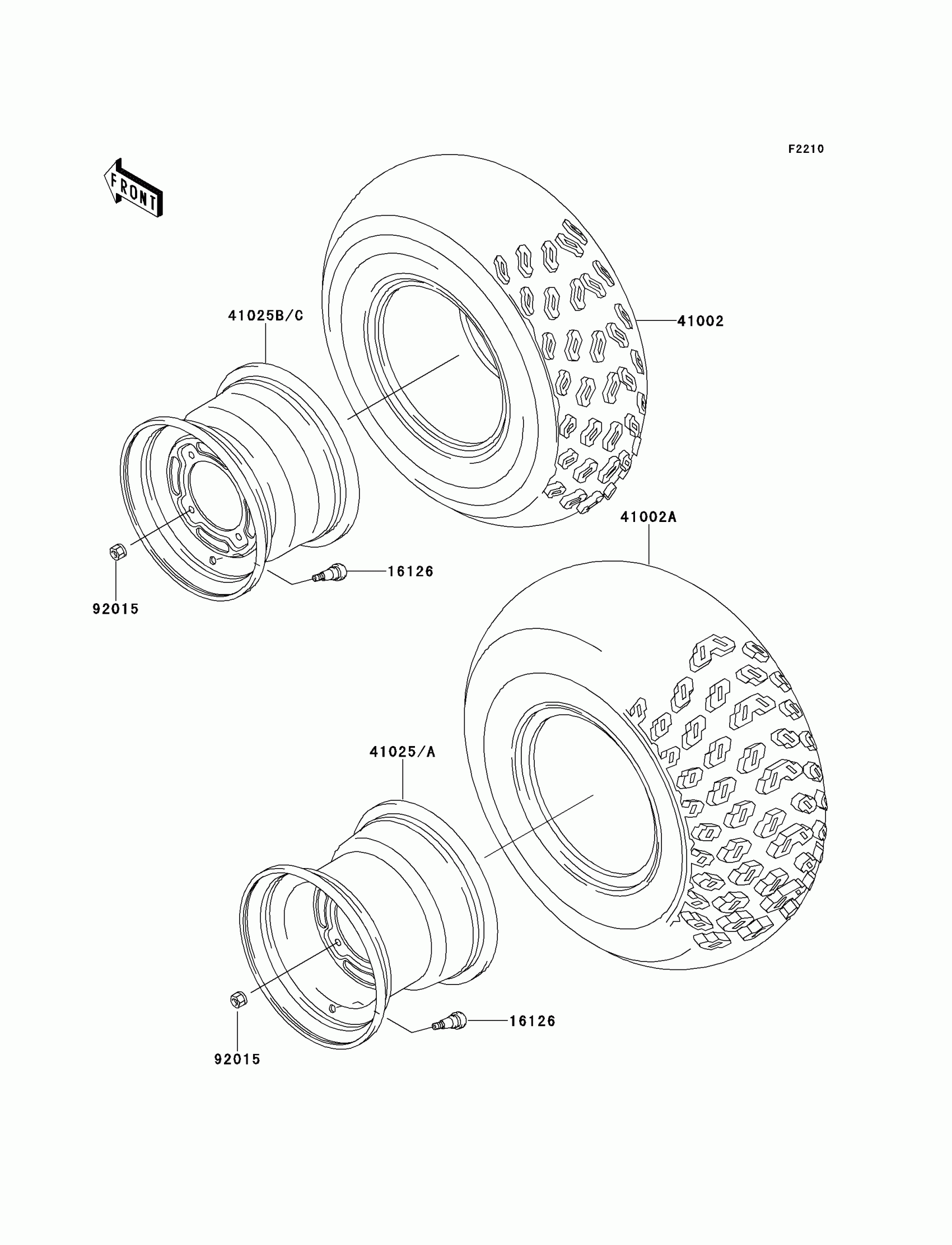

1996 Kawasaki Bayou 220 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE

16126-4001

1
Out of stock

41002

1

$121.92

In stock

41002A

1

$154.74

In stock

41025

RIM,RR,10X8.5,SILVER NO.40

41025-1210-5A

1
Out of stock

41025B

RIM,FR,9X6.0,SILVER NO.40

41025-1211-5A

1
Out of stock

92015

NUT,LOCK,10MM

92015-1808

1
Out of stock
