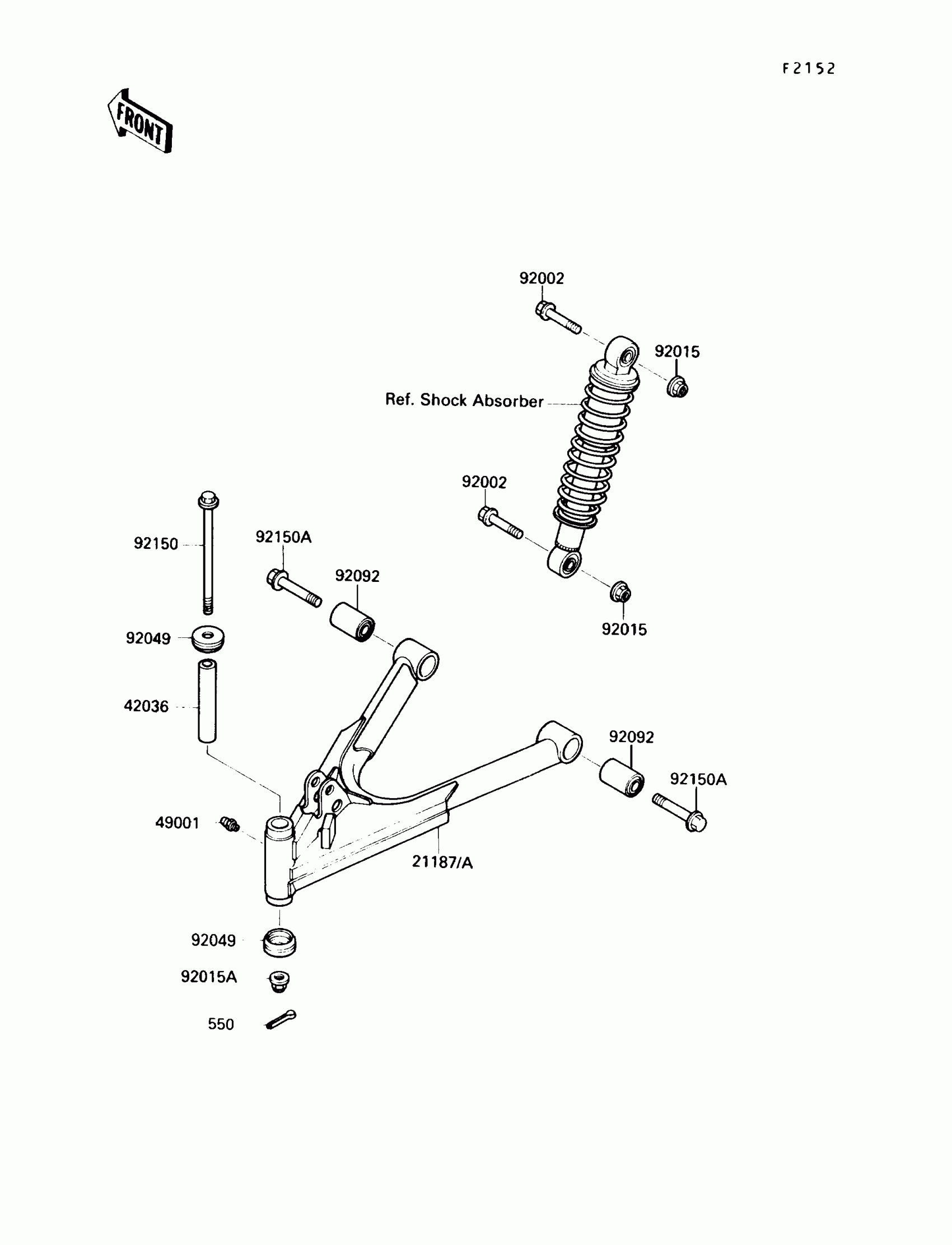

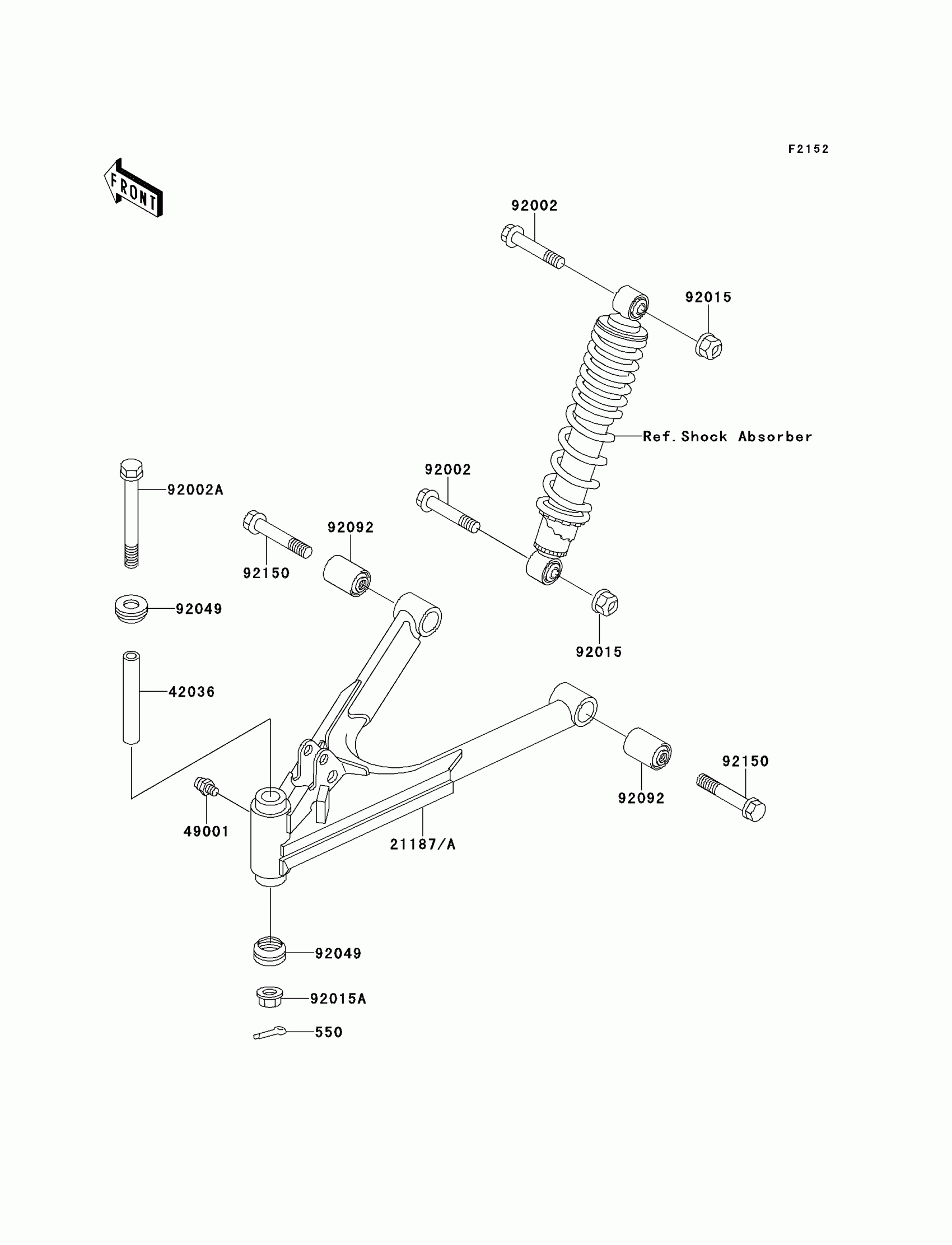

Kawasaki Bayou 220 Front Suspension Diagram

Description

Price

550

PIN COTTER 2.0X15

550D2015

Unavailable

21187

ARM-ASSY,SUSPENSION,FR,LH

21187-1065

$184.65

21187A

ARM-ASSY,SUSPENSION,FR,RH

21187-1066

$188.01

42036

SLEEVE,KNUCKLE,L=99.6

42036-1141

$62.21

49001

NIPPLE-GREASE

49001-1051

$2.11

92002

BOLT,FLANGED,10X42

92002-1545

$8.75

92015

NUT,LOCK,10MM

92015-1597

$4.18

92015A

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92049

SEAL-OIL

92049-1285

$7.56

92092

BUSHING-RUBBER

92092-005

$10.71

92150

BOLT,FLANGED,10X142

92002-1956

$12.17

92150A

BOLT,FLANGED,12X58

92150-1022

Unavailable
