1991 Kawasaki Bayou 220 Rear HUB Diagram

← All diagrams

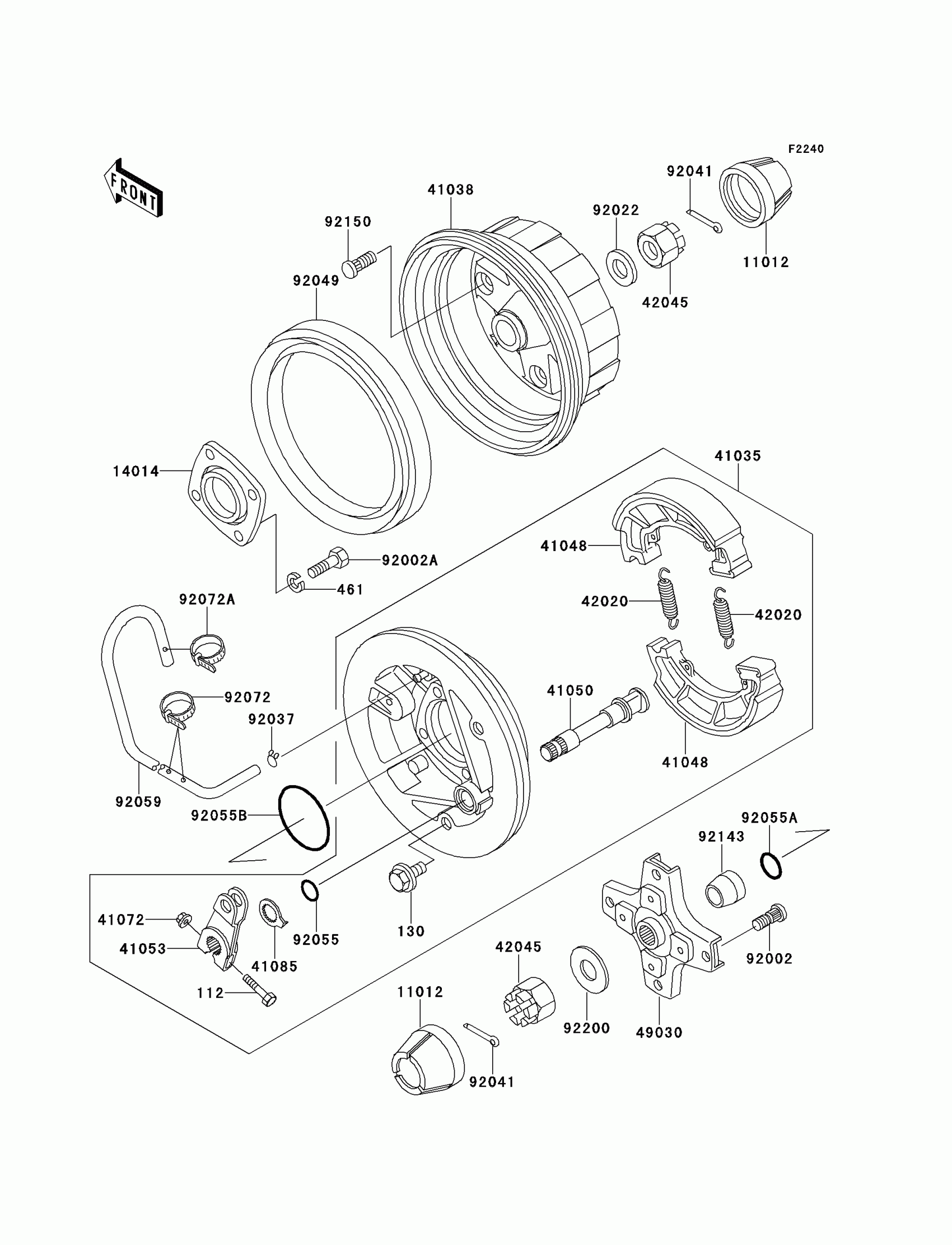

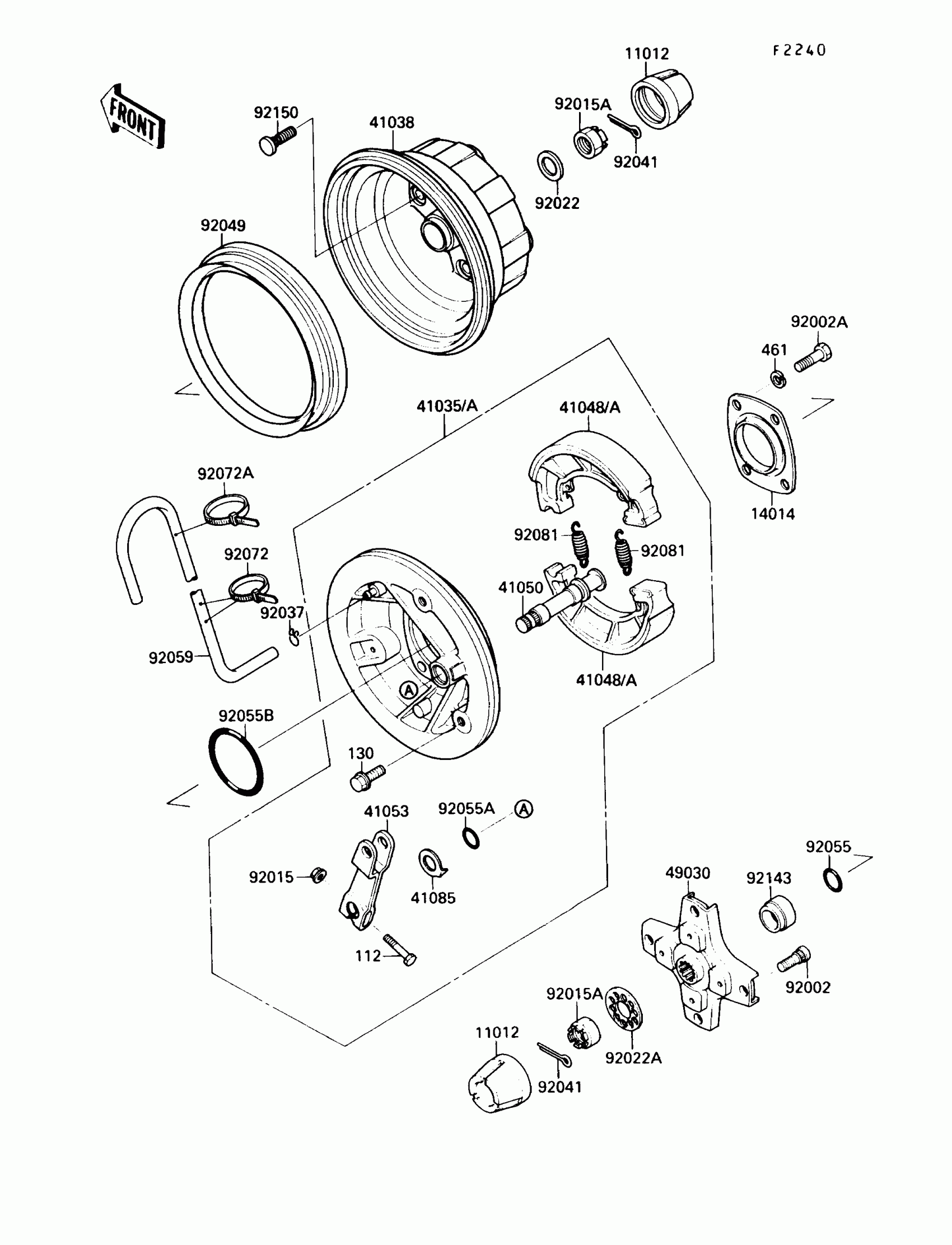

Find the part on the Rear HUB diagram for your 1991 Kawasaki Bayou 220, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Bayou 220 Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET

112H0640

1
Out of stock

130

BOLT-FLANGED,10X16

130B1016

1
Out of stock

461

WASHER SPRING 10MM

461F1000

1
Out of stock

11012

CAP,WHEEL

11012-1519

1
Out of stock

14014

PLATE-POSITION

14014-1072

1

$17.54

In stock

41035A

1

$468.61

In stock

41038

DRUM,RR

41038-1201

1

$335.86

In stock

41048A

SHOE-BRAKE

41048-1069

1

$24.30

In stock

41050

CAM-BRAKE

41050-1074

1

$55.25

In stock

41053

LEVER-BRAKE CAM

41053-1064

1

$50.70

In stock

41085

INDICATOR

41085-1053

1
Out of stock

49030

HUB,RR,LH

49030-1086

1
Out of stock

92002

BOLT,10MM

92002-1459

1
Out of stock

92002A

BOLT,10X30

92002-1918

1
Out of stock

92015

NUT,6MM

41072-007

1
Out of stock

92015A

NUT,CASTLE,18MM

42045-018

1
Out of stock

92022

WASHER,18.3X34X4.5

92022-1658

1
Out of stock

92022A

WASHER,T=4.5

92022-1794

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92041

COTTER,4.0X35

92041-1053

1
Out of stock

92049

SEAL-OIL

92049-1242

1
Out of stock

92055

RING-O,24.7MM

92055-1160

1
Out of stock

92055A

RING-O,ID=16.4

92055-1376

1
Out of stock

92055B

RING-O,59.6X2.4

92055-3018

1
Out of stock

92059

TUBE,4.7X9.5X1240

92059-1968

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=149

92072-031

1
Out of stock

92081

SPRING,BRAKE SHOE

42020-004

1
Out of stock

92143

COLLAR,L=18

92143-1115

1
Out of stock

92150

BOLT,10MM

92150-1110

1
Out of stock
