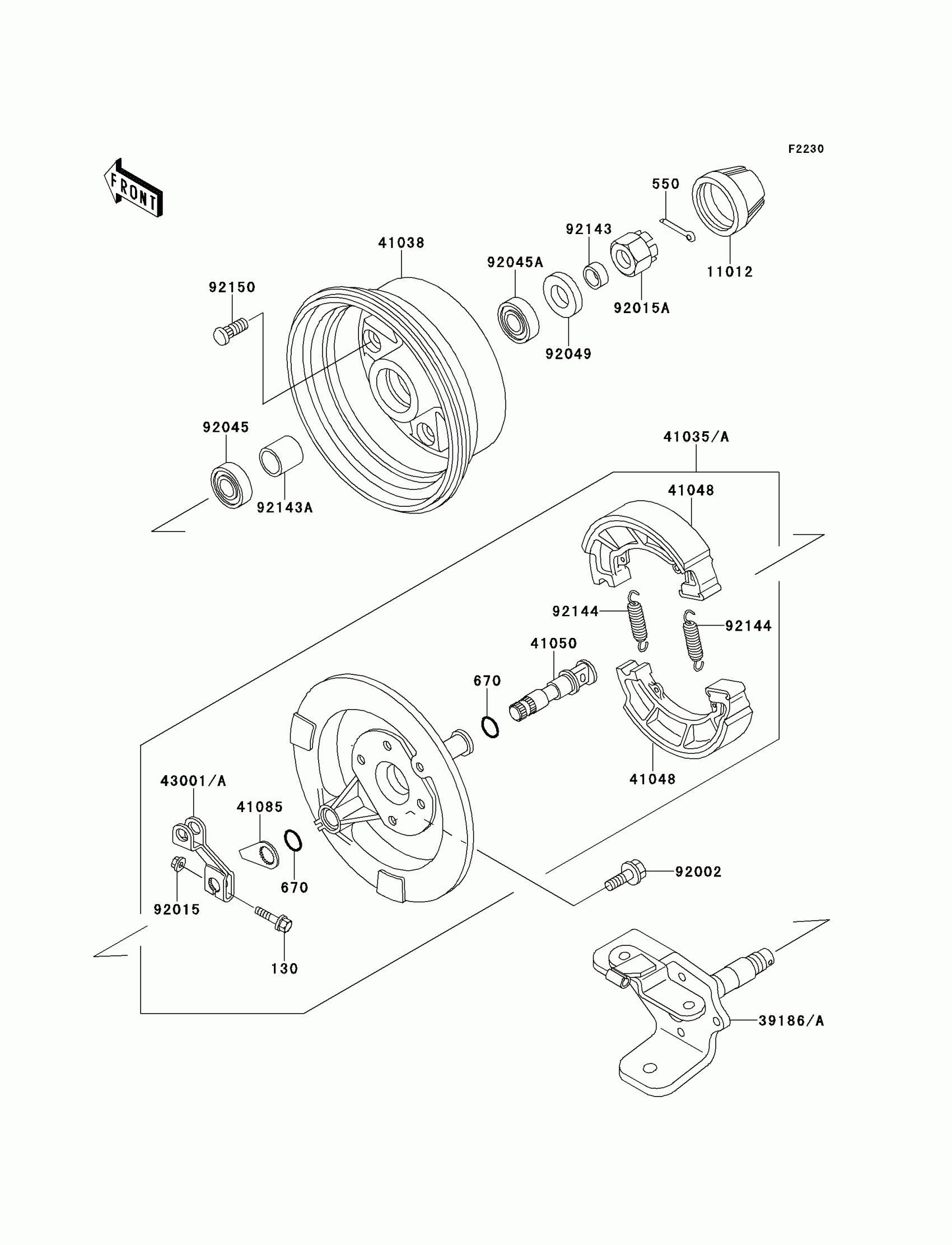

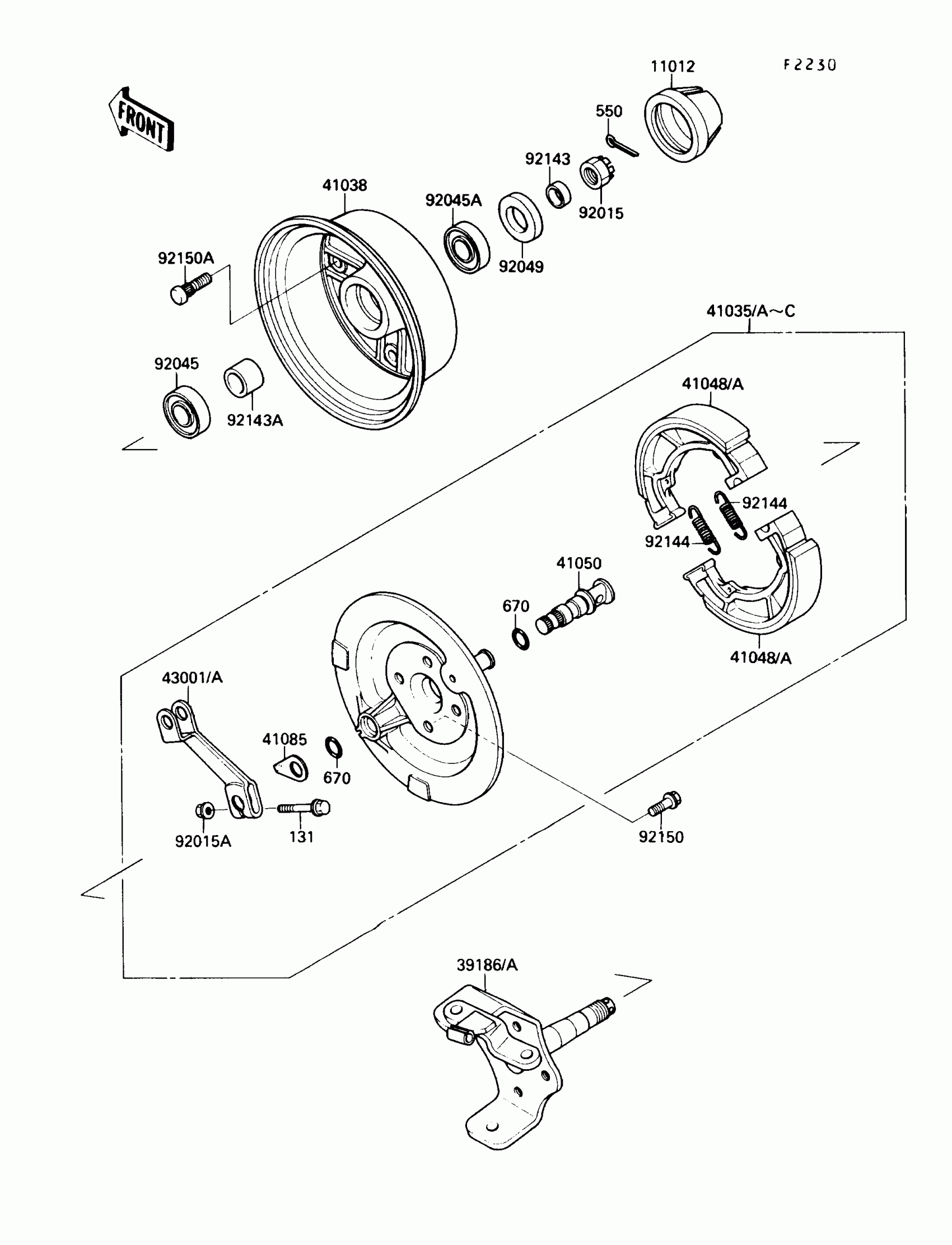

Kawasaki Bayou 220 Front Hub Diagram

#

Description
Price

131

BOLT-FLANGED

131H0635

Unavailable

550

PIN COTTER 4.0X30

550D4030

Unavailable

670

O RING,15MM

670B2015

$1.08

11012

CAP,WHEEL

11012-1519

Unavailable

39186

KNUCKLE,LH

39186-1077

$195.59

39186A

KNUCKLE,RH

39186-1078

$195.59

41035B

PANEL-ASSY-BRAKE,FR,LH

41035-1237

$421.18

41035C

PANEL-ASSY-BRAKE,FR,RH

41035-1238

$421.18

41038

DRUM,FRONT BRAKE

41038-1189

$178.21

41048A

SHOE-BRAKE

41048-1068

$22.11

41050

CAM-BRAKE

41050-1075

$38.15

41085

INDICATOR

41085-1059

$10.08

43001

LEVER-BRAKE,LH

43001-1228

$33.36

43001A

LEVER-BRAKE,RH

43001-1229

$33.36

92015

NUT,CASTLE,16MM

42045-014

$7.54

92015A

NUT,FLANGED,6MM,BLACK

92015-1237

$4.18

92045

BEARING-BALL,60042RD

92045-1198

$28.70

92045A

BEARING-BALL,6203DDU2 AV2S

92045-1228

$17.09

92049

SEAL-OIL

92049-1318

$2.87

92143

COLLAR,16X22X10.5

92143-1117

$10.36

92143A

COLLAR,20X25.4X25

92143-1118

Unavailable

92144

SPRING,BRAKE SHOE

92144-1225

$4.40

92150

BOLT,FLANGED,8X18

92002-1957

$5.14

92150A

BOLT

92150-1289

$4.04
