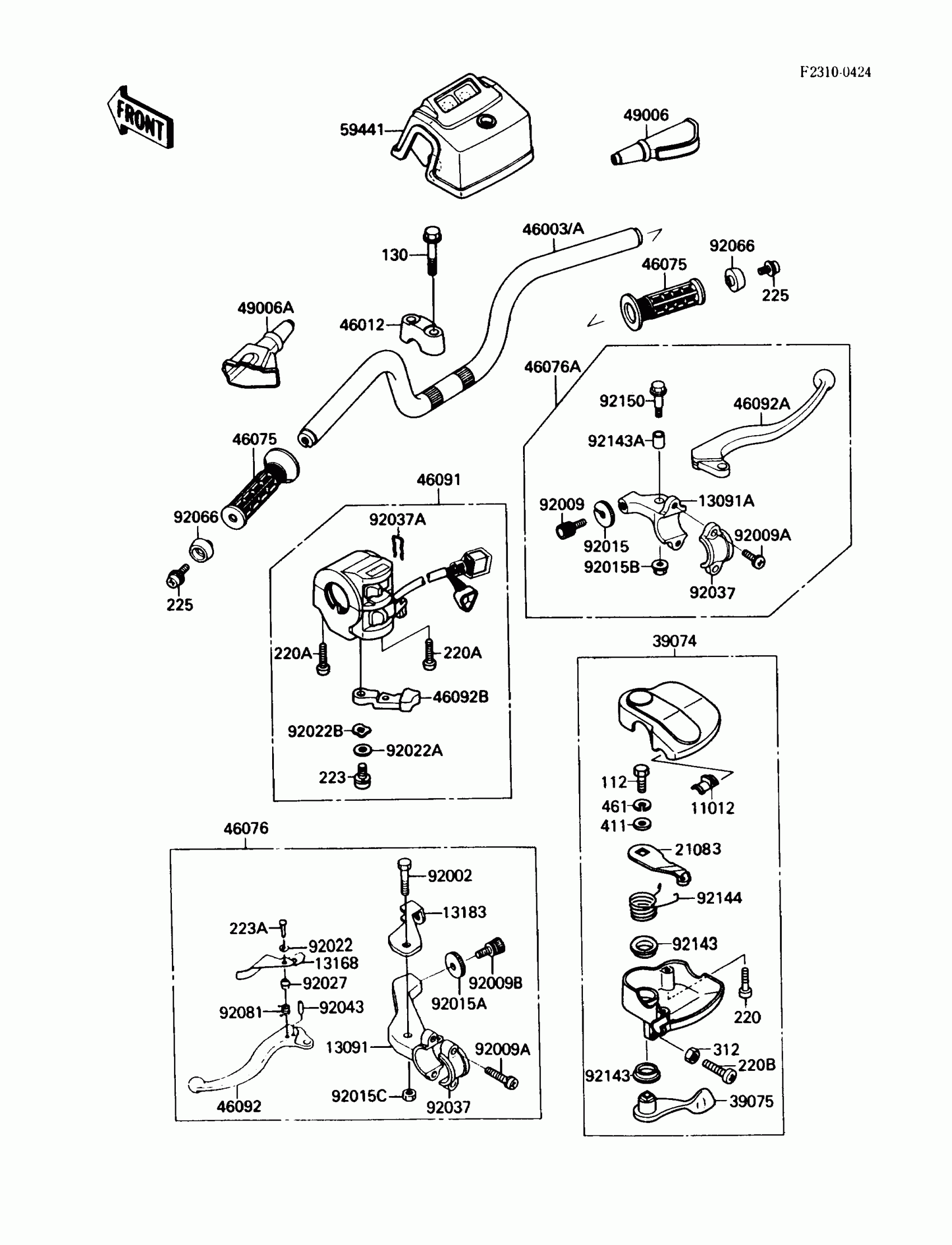

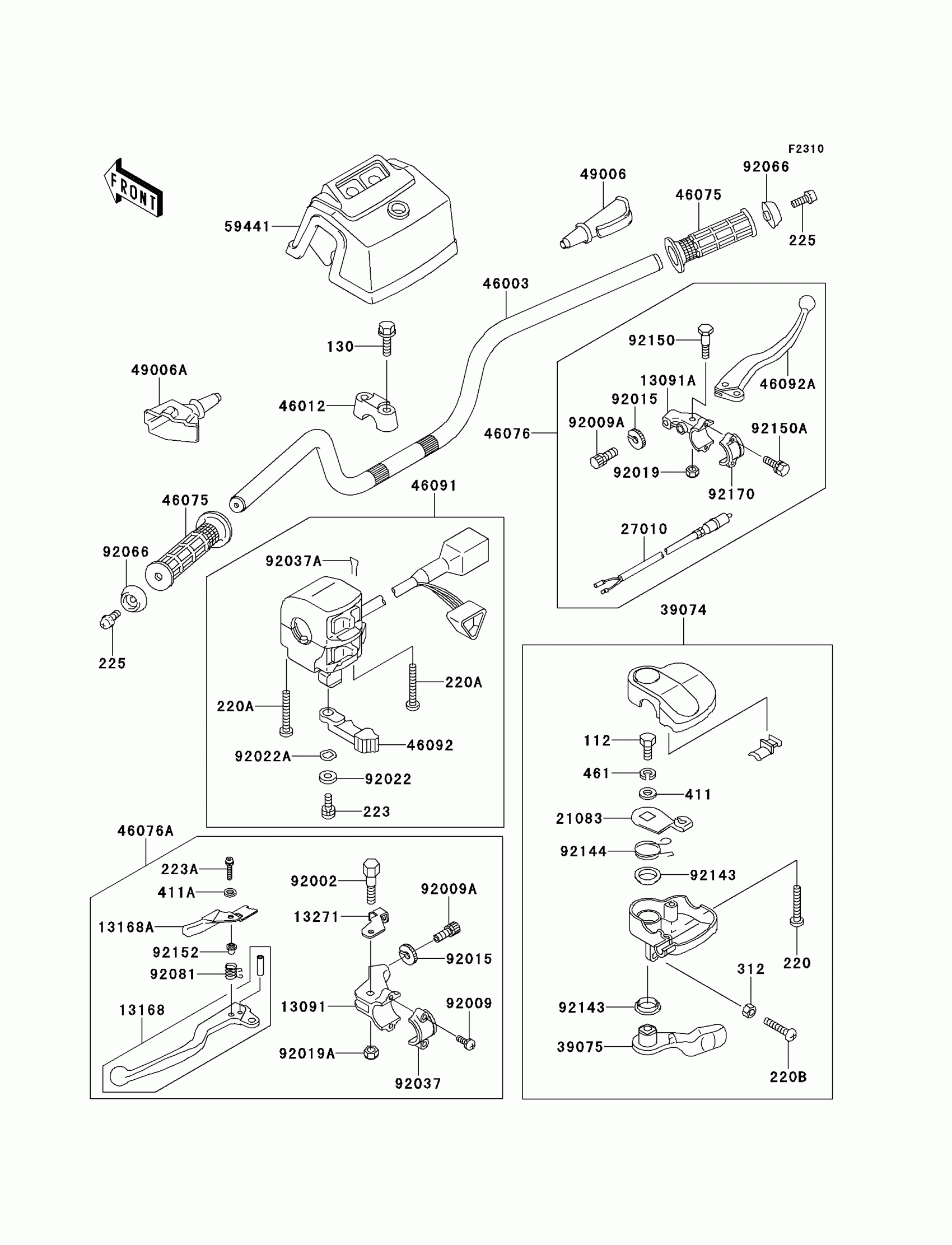

Kawasaki Bayou 220 Handlebar Diagram

#

Description
Price

11012

CAP

11012-1425

Unavailable

13091

HOLDER

13091-1349

$38.50

13091A

HOLDER,BRAKE LEVER,RH

13091-1541

Unavailable

13168

LEVER,LOCK

13168-1346

$19.32

13183

PLATE,LOCK

13183-1076

Unavailable

21083

ARM

21083-1068

$13.29

39074

LEVER-ASSY-THROTTLE

39074-1053

$144.99

39075

LEVER-THROTTLE

39075-1056

$25.12

46003A

HANDLE

46003-1291

$60.44

46012

HOLDER-HANDLE

46012-1168

$15.44

46075

GRIP

46075-4003

$20.92

46076

LEVER-ASSY-GRIP,LH

46076-1143

$44.49

46076A

LEVER-ASSY-GRIP,RH

46076-1157

$53.49

46091

HOUSING-ASSY-CONTROL,LH

46091-1450

Unavailable

46092

LEVER-GRIP

46092-1107

Unavailable

46092A

LEVER-GRIP,FRONT BRAKE

46092-1133

$17.86

46092B

LEVER-GRIP,CHOKE

46092-1149

$4.29

49006

BOOT,LEVER HOLDER

49006-1017

$14.12

49006A

BOOT,CLUTCH LEVER

49006-1057

$20.61

59441

COVER-HANDLE,BLACK

59441-1076-6D

$22.97

92002

BOLT,5MM

92002-1447

$9.59

92009

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

92009A

SCREW,5X18

92009-1367

$4.08

92009B

SCREW,CABLE ADJUST,8MM

92009-1435

$12.40

92015

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

92015A

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92015B

NUT,LOCK,5MM

92015-1719

Unavailable

92015C

NUT,LOCK,5MM

92019-014

$4.00

92022

WASHER,4MM

92022-1647

$3.93

92022A

WASHER,5MM

92022-1837

$2.31

92022B

WASHER,WAVE,5MM

92022-1838

$2.31

92027

COLLAR,RETURN SPRING

92027-1336

$13.56

92037

CLAMP,LEVER HOLDER

92037-1621

$25.61

92037A

CLAMP,CLIP

92037-1836

$4.68

92043

PIN,SPRING,3X16

92043-1268

$9.92

92066

PLUG,HANDLE

92066-1191

Unavailable

92081

SPRING,LOCK RETURN

92081-1358

$4.80

92143

COLLAR

92143-1138

$3.15

92143A

COLLAR

92143-1216

$5.54

112

BOLT-UPSET

112D0614

$0.48

130

BOLT-FLANGED,8X55

130G0855

Unavailable

220

SCREW-PAN-CROS,5X25

220C0525

$2.66

220A

SCREW-PAN-CROS,5X35

220C0535

$1.49

220B

SCREW-PAN HEAD,6X30

220C0630

$1.41

223

SCREW-PAN-WS-CROS,5X12

223C0512

$3.29

223A

SCREW-PAN-WS-CROS,4X20

223D0420

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225C0620

Unavailable

312

NUT-HEX,6MM,BLACK

312C0600

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.03

461

WASHER-SPRING

461L0600

$0.66

92144

SPRING

92144-1176

$144.99

92150

BOLT,LEVER SET

92150-1102

$8.03
