1991 Kawasaki Bayou 220 Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 1991 Kawasaki Bayou 220, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

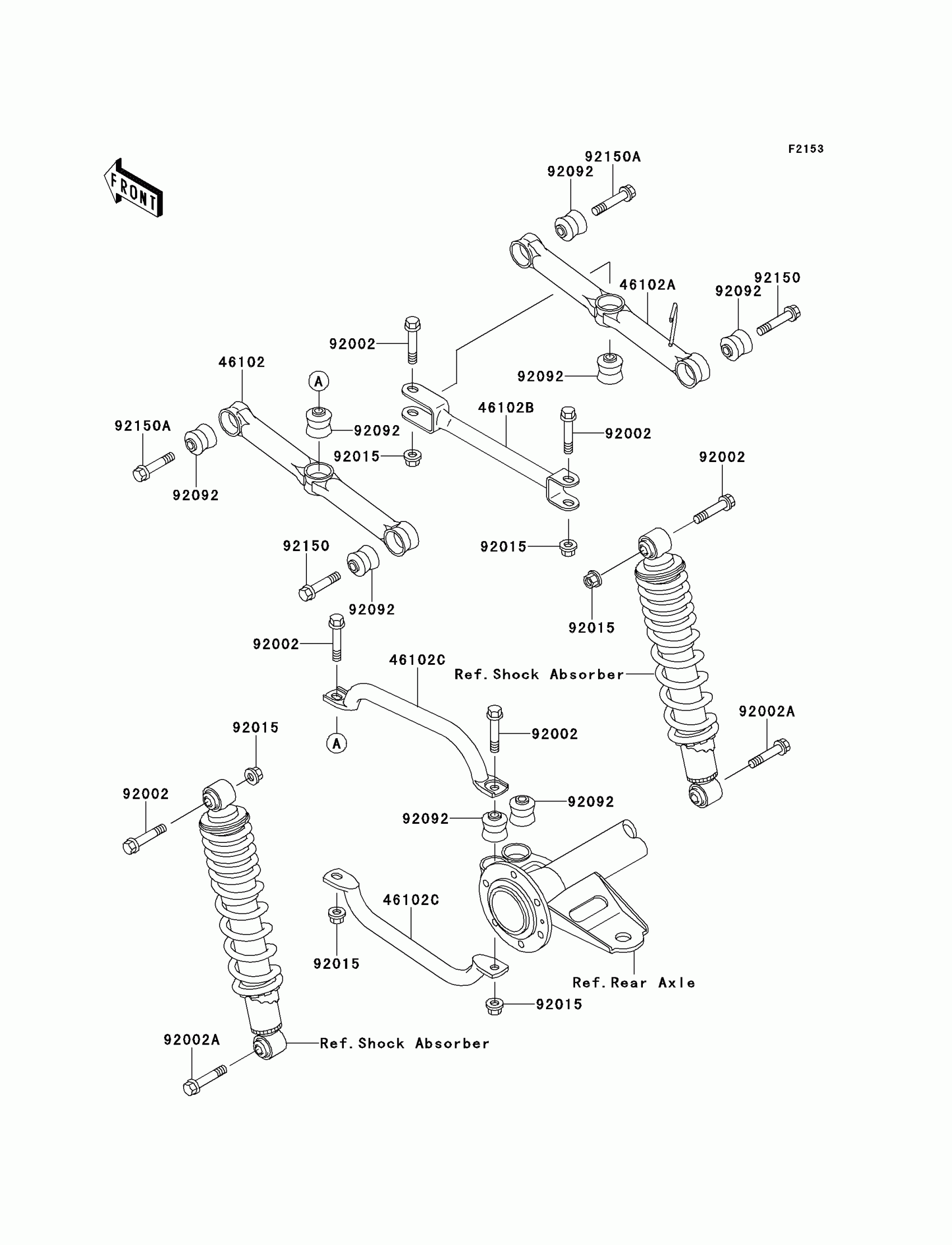

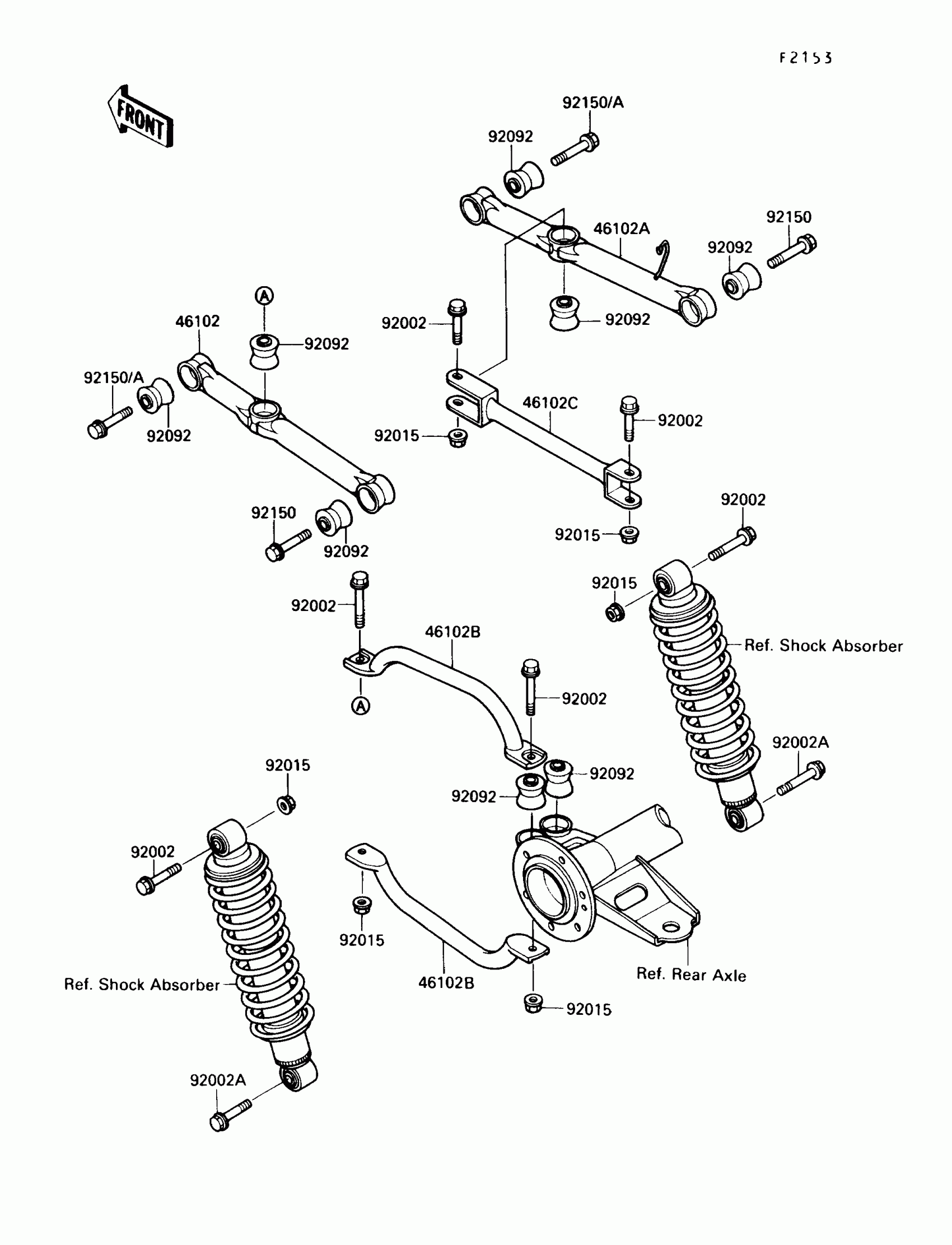

1991 Kawasaki Bayou 220 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

46102

ROD,SUSPENSION,RR,LH

46102-1210

1
Out of stock

46102A

ROD,SUSPENSION,RR,RH

46102-1211

1
Out of stock

46102B

ROD,SUSPENSION,LEFT CROSS

46102-1212

1
Out of stock

46102C

ROD,SUSPENSION,RIGHT CROSS

46102-1213

1
Out of stock

92002

BOLT,FLANGED,10X53.5

92002-1529

1
Out of stock

92002A

BOLT,FLANGED,10X49

92002-1562

1
Out of stock

92015

NUT,LOCK,10MM

92015-1597

1
Out of stock

92092

BUSHING-RUBBER

92092-1064

1
Out of stock

92150

BOLT,FLANGED,10X49

92150-1048

1
Out of stock

92150A

BOLT,FLANGED,10X52

92150-1070

1
Out of stock
