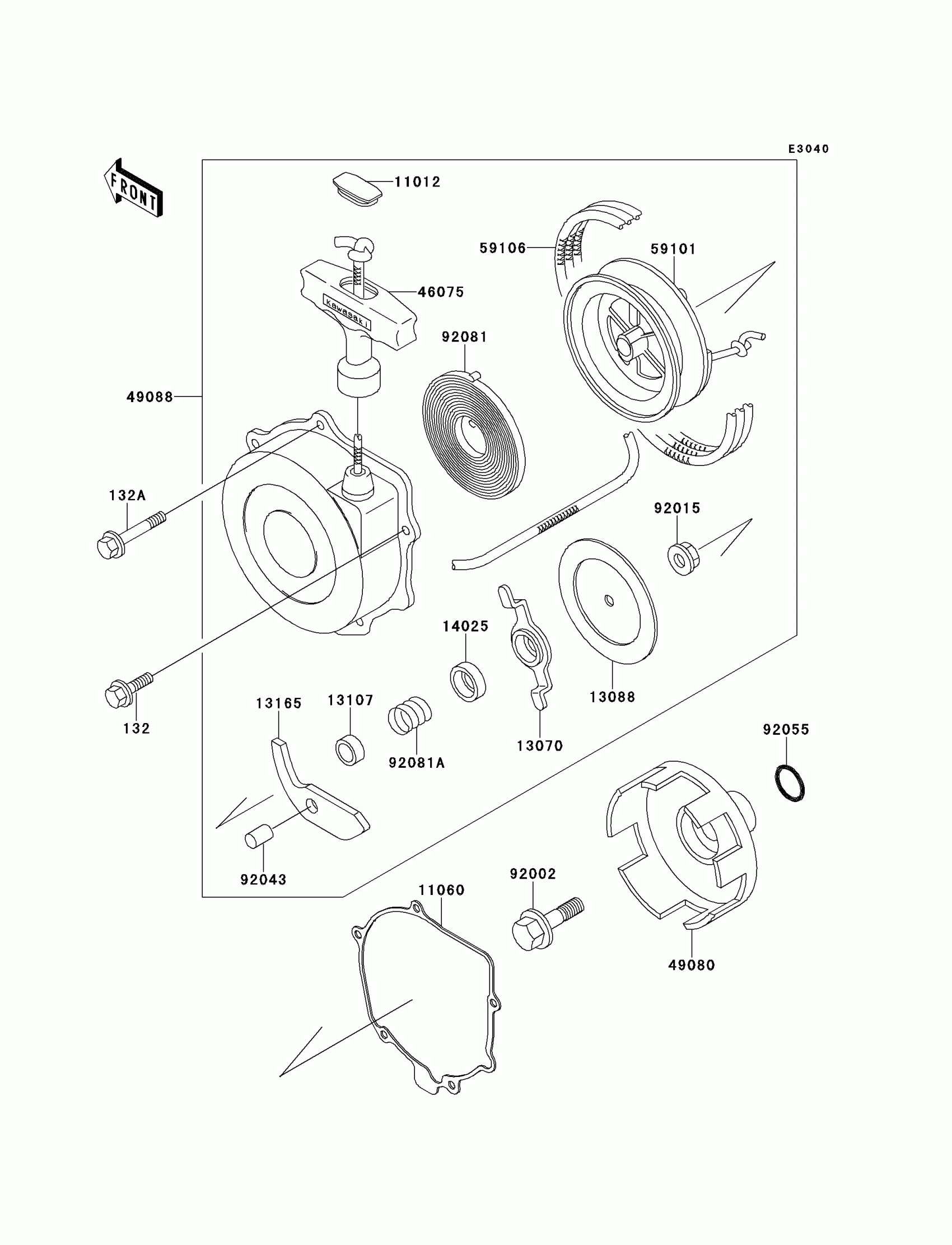

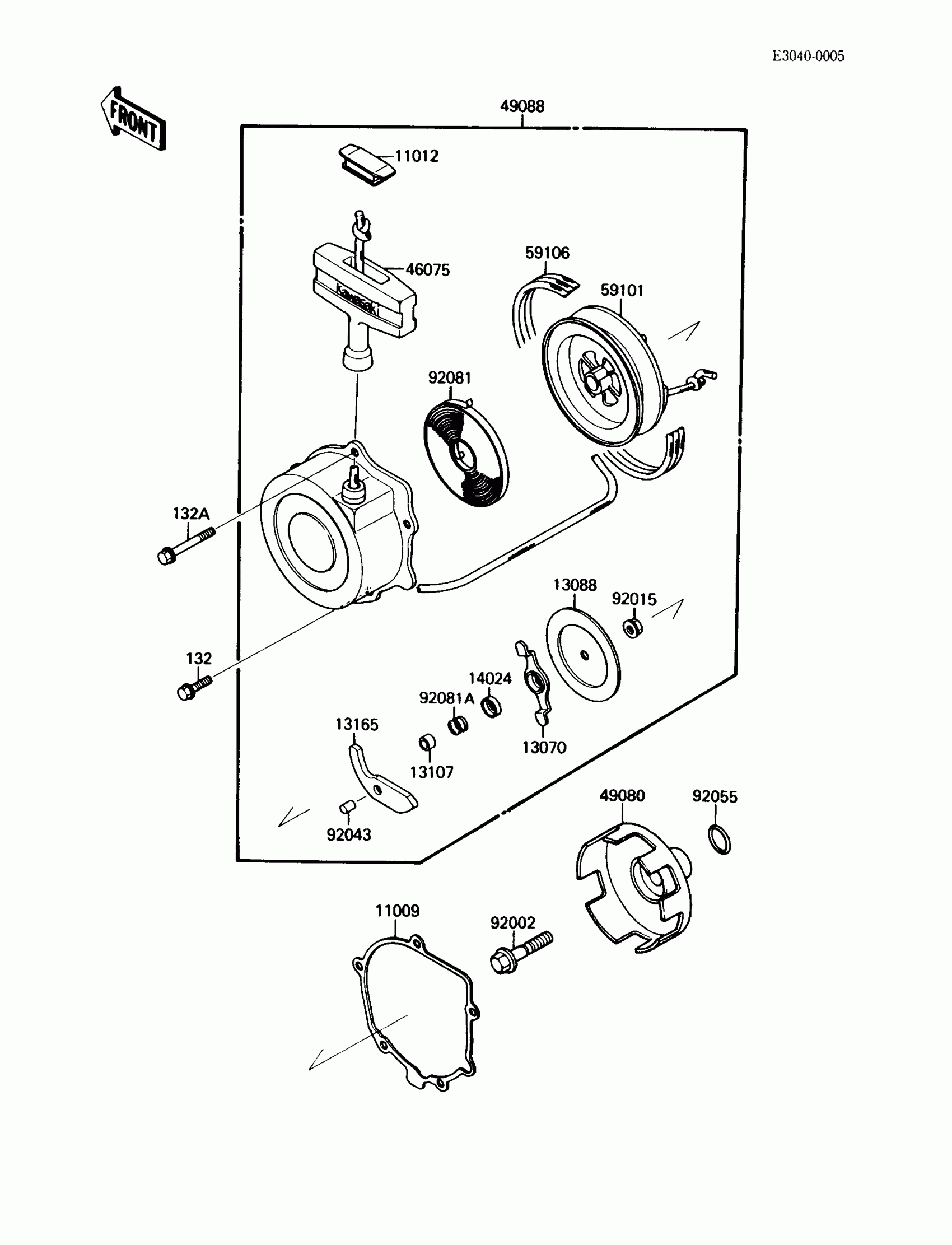

Kawasaki Bayou 220 Recoil Starter Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132J0614

Unavailable

132A

BOLT-FLANGED-SMALL

132J0680

Unavailable

11009

GASKET,RECOIL

11009-1673

Unavailable

11012

CAP,RECOIL GRIP

11012-1420

$5.61

13070

GUIDE,RECOIL

13070-1123

$5.10

13088

PLATE-FRICTION,RECOIL

13088-1059

$10.88

13107

SHAFT,RECOIL

13107-1129

$5.75

13165

PAWL,RECOIL

13165-1110

$18.41

14024

COVER,RECOIL

14025-1966

$4.07

46075

GRIP,RECOIL

46075-1073

$14.37

49080

PULLEY-STARTING

49080-1051

$55.87

49088

STARTER-RECOIL

49088-1054

$356.20

59101

REEL

59101-1105

$80.84

59106

ROPE,RECOIL

59106-1102

$36.51

92002

BOLT,FLANGED,10X40

92002-1296

$8.10

92015

NUT,6MM

92015-1464

$4.34

92043

PIN,RECOIL

92043-1259

$4.68

92055

RING-O,16.8MM

92055-1235

$4.18

92081

SPRING,RECOIL

92081-1772

$72.92

92081A

SPRING

92081-1773

$4.66
