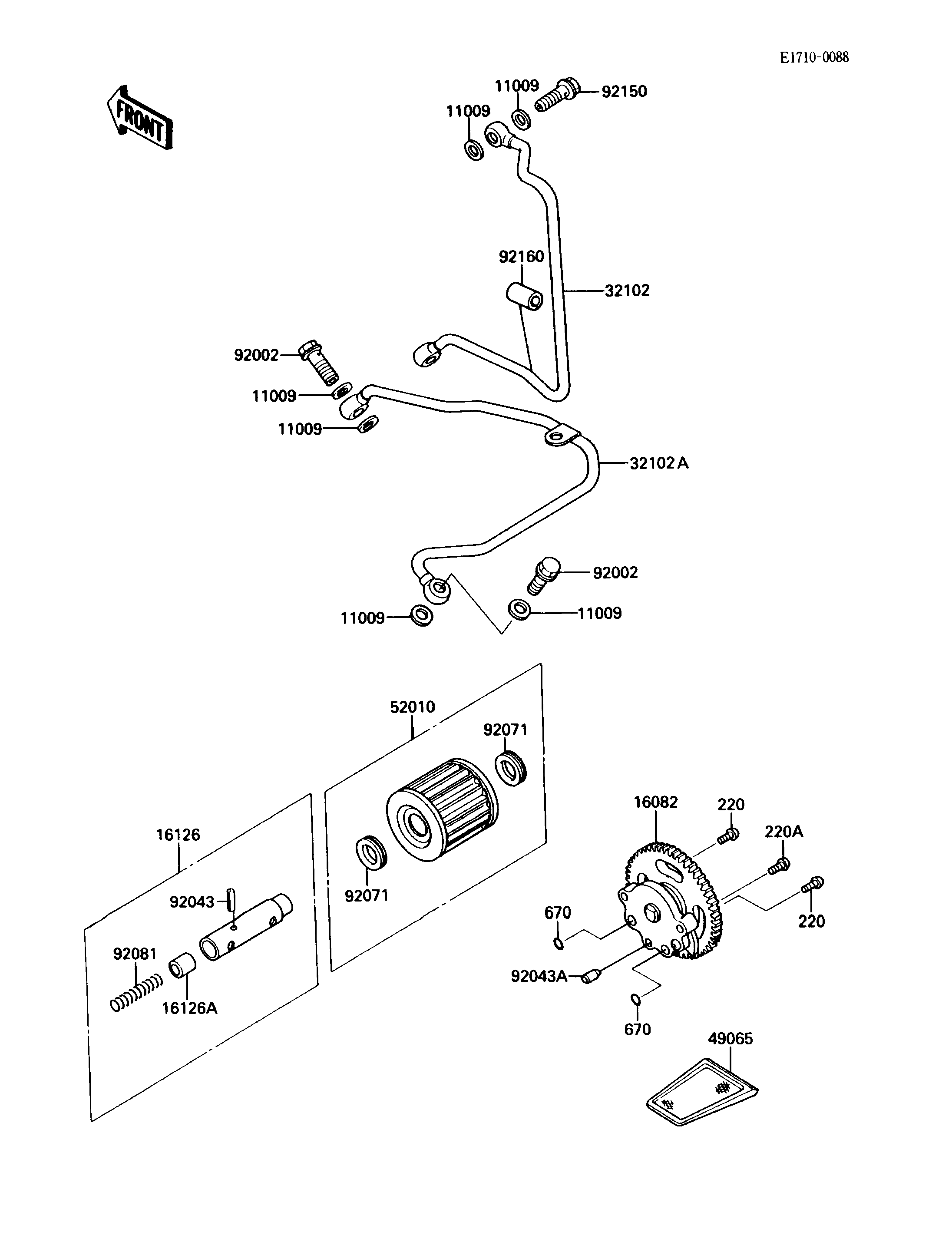

Kawasaki Bayou 220 Oil Pump Diagram

#

Description
Price

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

220A

SCREW PAN HEAD 6X30

220B0630

Unavailable

670

O RING,9.8X1.9

670B1510

$3.29

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

16082

PUMP-ASSY-OIL

16082-1090

$188.47

16126

PISTON-ASSY,VALVE,BY-PASS

16156-002

$18.77

16126A

VALVE

92136-002

$4.14

32102

PIPE,CYLINDER HEAD

32102-1594

$71.39

32102A

PIPE,TRANSMISSION

32102-1595

$57.83

49065

FILTER-OIL

49065-1058

$9.70

52010

ELEMENT-OIL FILTER

16099-004

$7.06

92002

BOLT,BANJO,8X22

92002-1359

$7.71

92043

PIN,SPRING,2.2X13.5

92043-123

$4.17

92043A

PIN,6.2X8X14

92043-1263

$0.46

92071

GROMMET,OIL FILTER

92071-101

$4.14

92081

SPRING,PISTON

92081-043

$4.14

92150

BOLT,BANJO,8X25

92002-1987

$11.68

92160

DAMPER,4.5X11X20

92160-1074

$7.36
