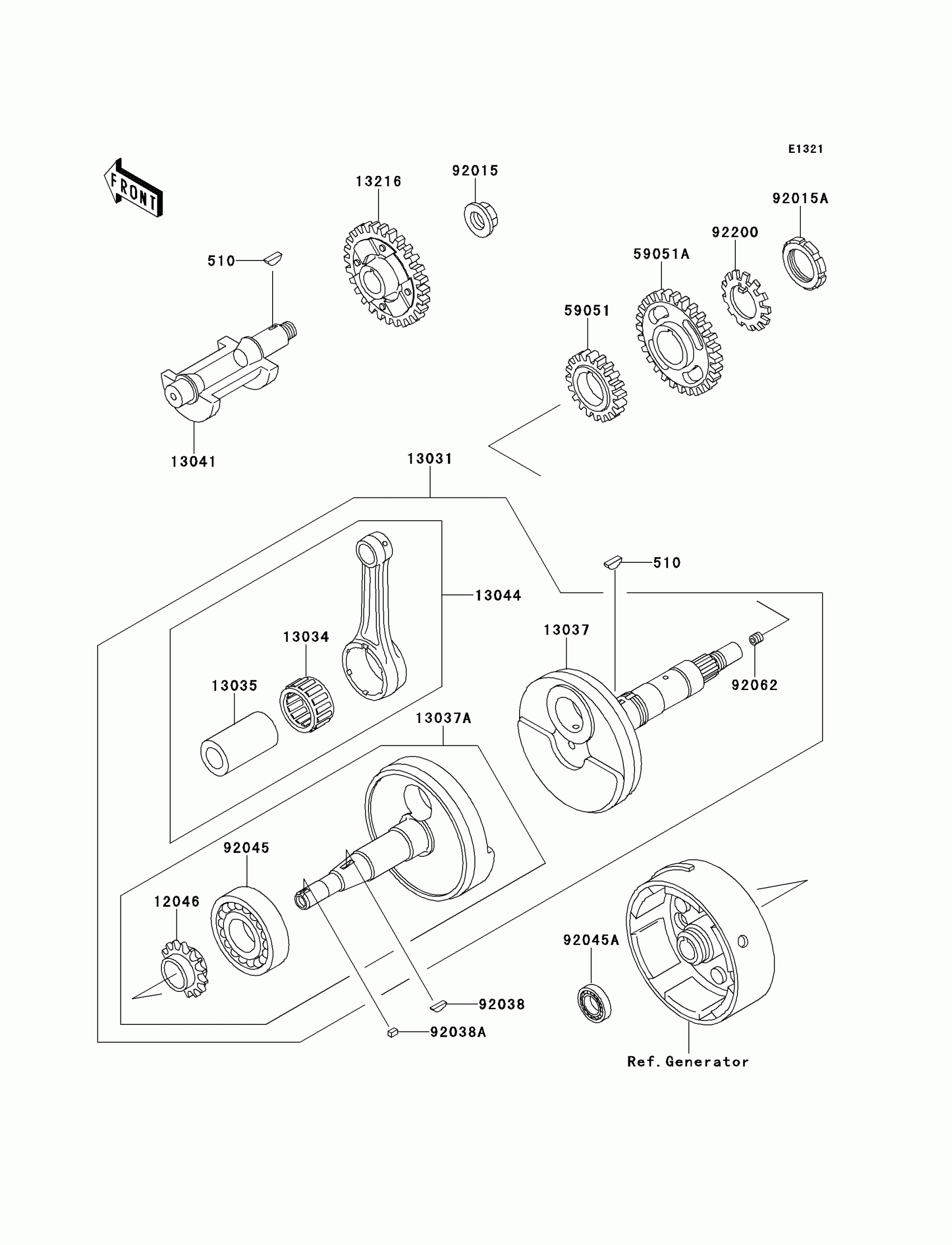

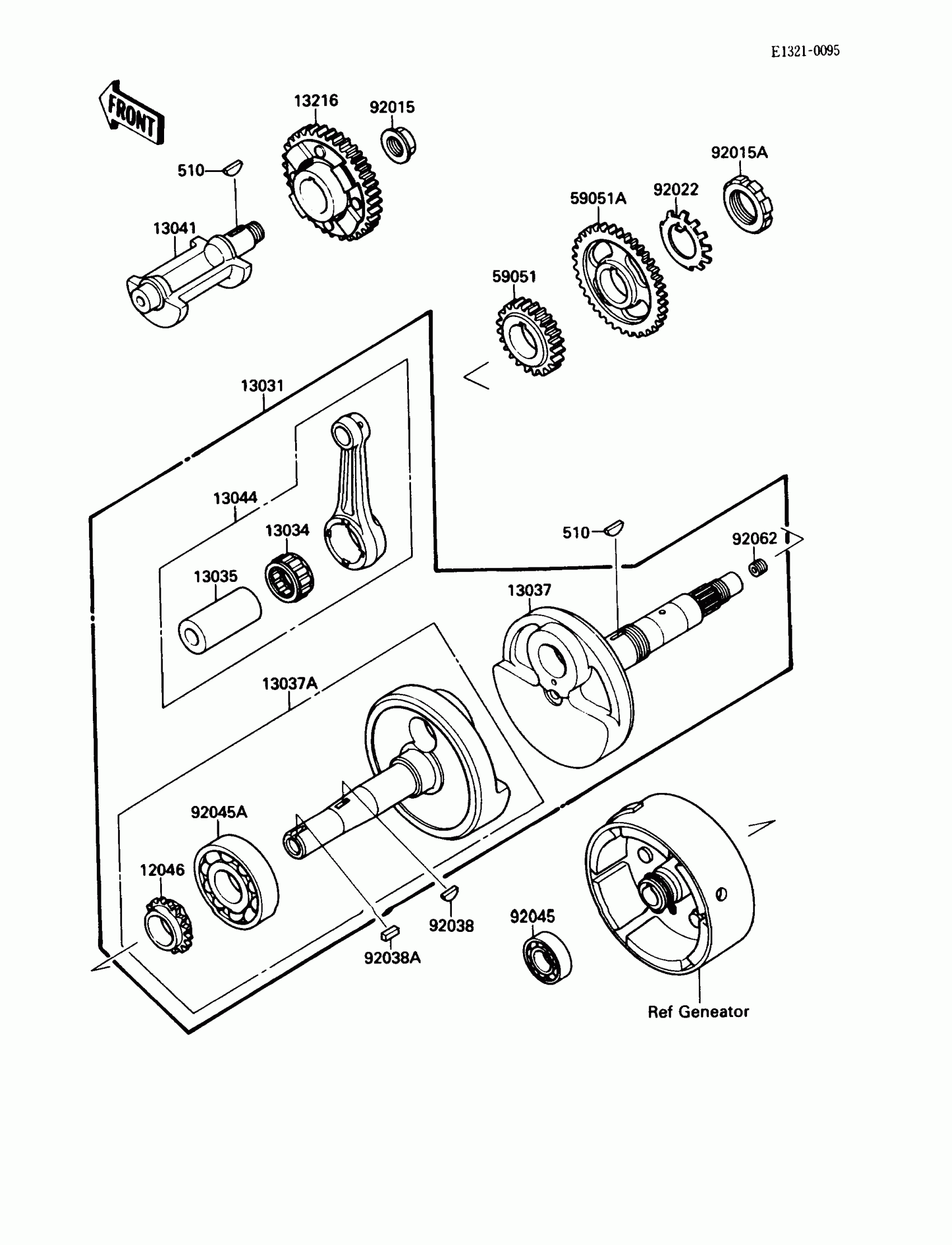

Kawasaki Bayou 220 Crankshaft Diagram

#

Description
Price

510

WOODRUFF KEY

510A5100

$1.87

12046

SPROCKET,CAM CHAIN,19T

12046-1058

Unavailable

13031

CRANKSHAFT-COMP

13031-1250

Unavailable

13034

BEARING-BIG END,KT283817EGC

13034-1080

Unavailable

13035

PIN-CRANK

13035-1063

$70.85

13037

CRANKSHAFT,RH

13037-1312

Unavailable

13037A

CRANKSHAFT,LH

13037-5074

Unavailable

13041

BALANCER

13041-1080

Unavailable

13044

SET-CONNECTING ROD

13044-5070

Unavailable

13216

GEAR-COMP,BALANCER

13216-1112

Unavailable

59051

GEAR,OIL PUMP,30T

59051-1187

$59.92

59051A

GEAR-SPUR,39T

59051-1188

$128.27

92015

NUT,16MM

92015-1465

$14.01

92015A

NUT,PUMP GEAR,30MM

92015-1511

$22.64

92022

WASHER,PUMP GEAR

92022-1682

$4.68

92038

KEY,WOODRUFF

92038-001

$3.78

92038A

KEY,SUNK

92038-1051

$4.33

92045

BEARING-BALL,#6903C3

92045-1131

$20.02

92045A

BEARING-BALL

92045-1172

$49.82

92062

NOZZLE

92062-1068

$4.85
