1991 Kawasaki Bayou 220 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1991 Kawasaki Bayou 220, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

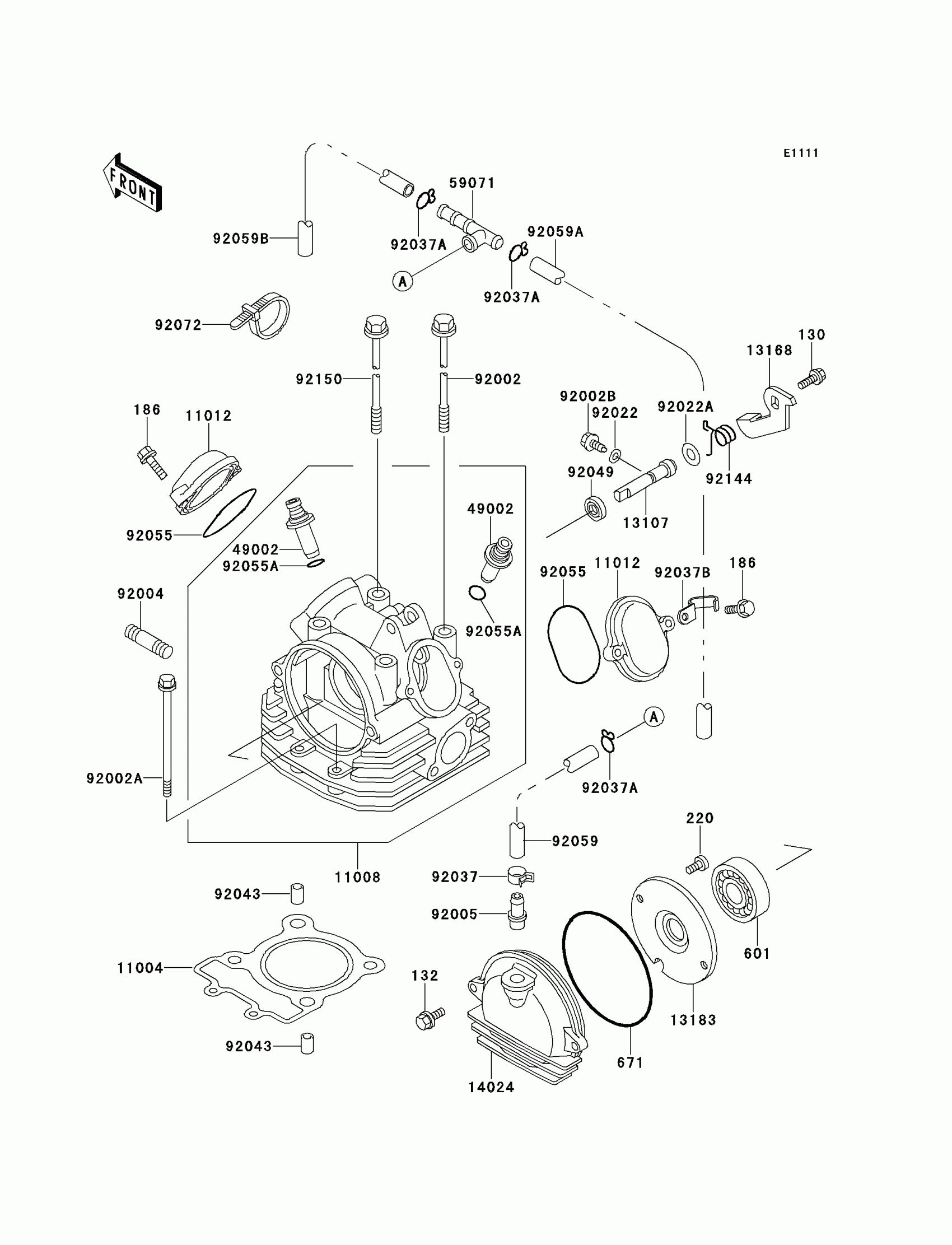

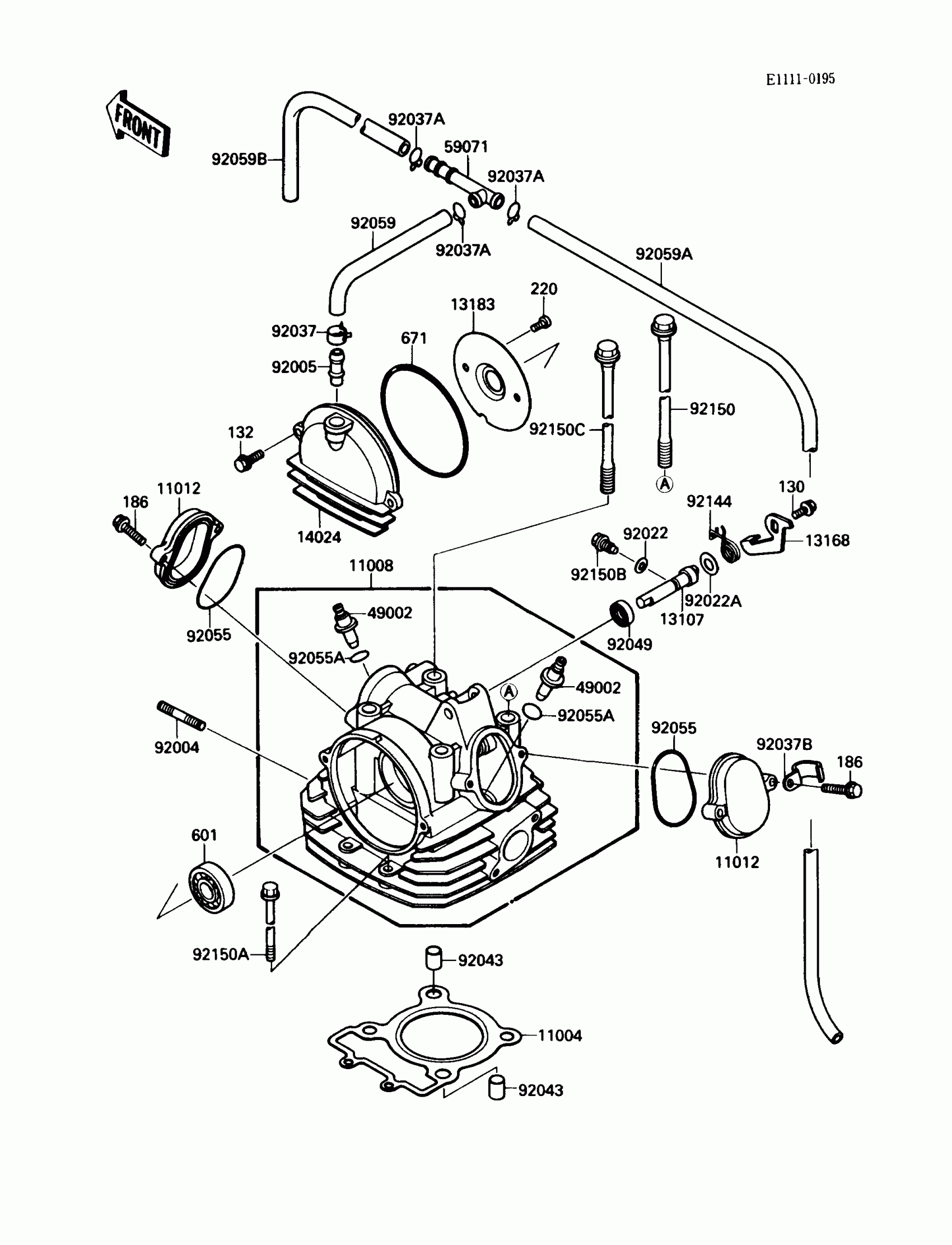

1991 Kawasaki Bayou 220 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130Y0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132Y0616

1
Out of stock

186

BOLT-UPSET-WP

186G0625

1
Out of stock

220

SCREW-PAN-CROS,6X8

220B0608

1
Out of stock

601

BEARING-BALL

601A6004ZZ

1
Out of stock

671

O RING,95MM

671B2595

1
Out of stock

11004

GASKET-HEAD

11004-1167

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1197

1
Out of stock

11012

CAP,ROCKER ARM

11012-1486

1
Out of stock

13107

SHAFT,DECOMPRESSOR

13107-1209

1
Out of stock

13168

LEVER,DECOMPRESSOR

13168-1353

1
Out of stock

13183

PLATE,CAM CHAIN

13183-1139

1
Out of stock

14024

COVER,CAMSHAFT

14024-1485

1

$70.21

In stock

49002

GUIDE-VALVE

49002-1079

1
Out of stock

59071

JOINT

59071-1124

1
Out of stock

92004

STUD,6X30

92004-1128

1
Out of stock

92005

FITTING,BREATHER PIPE

92005-1161

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92022A

WASHER,10.2X20X0.5

92022-1649

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1
Out of stock

92037A

CLAMP,12.5MM

92037-1271

1
Out of stock

92037B

CLAMP

92037-1939

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92049

SEAL-OIL,SD10205-1HS

92049-1286

1
Out of stock

92055

RING-O,53.5X2.6

92055-112

1
Out of stock

92055A

RING-O,VALVE GUIDE

92055-1177

1
Out of stock

92059

TUBE,9X12X148

92059-1848

1
Out of stock

92059A

TUBE,9X12X600

92059-1849

1
Out of stock

92059B

TUBE

92059-1900

1
Out of stock

92144

SPRING,DECOMPRESSOR

92144-1154

1
Out of stock

92150

BOLT,10X228

92002-1960

1
Out of stock

92150A

BOLT,6X113

92002-1961

1
Out of stock

92150B

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

1
Out of stock

92150C

BOLT,FLANGED,10X228

92150-1107

1
Out of stock
