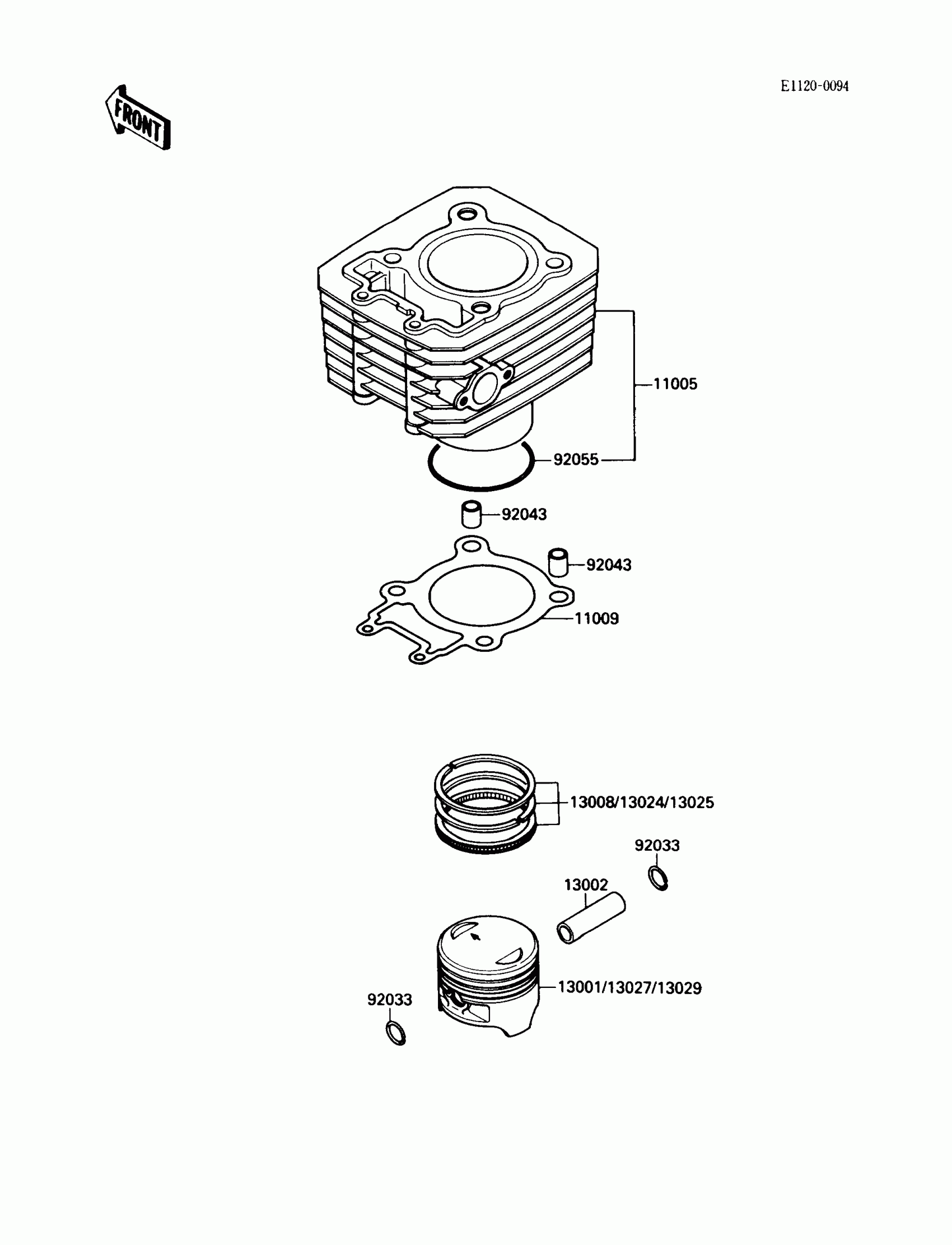

Kawasaki Bayou 220 Cylinder/Piston Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1524

Unavailable

11009

GASKET,CYLINDER BASE

11009-1670

$13.27

13001

PISTON-ENGINE,STD

13001-1282

$99.05

13002

PIN-PISTON

13002-1004

$5.97

13008

RING-SET-PISTON,STD

13008-1090

$84.43

92033

RING-SNAP,PISTON PIN

92033-1161

$3.10

92043

PIN,10.1X12X14

92043-4009

$4.93

92055

RING-O,68.6MM

92055-1178

$9.27

13024

RING-SET-PISTON LL,O/S 1.00

13024-1075

$90.53

13025

RING-SET-PISTON L,O/S 0.50

13025-1085

$73.47

13027

PISTON-ENGINE LL,O/S 1.00

13027-1154

$106.45

13029

PISTON-ENGINE L,O/S 0.50

13029-1177

$125.19
