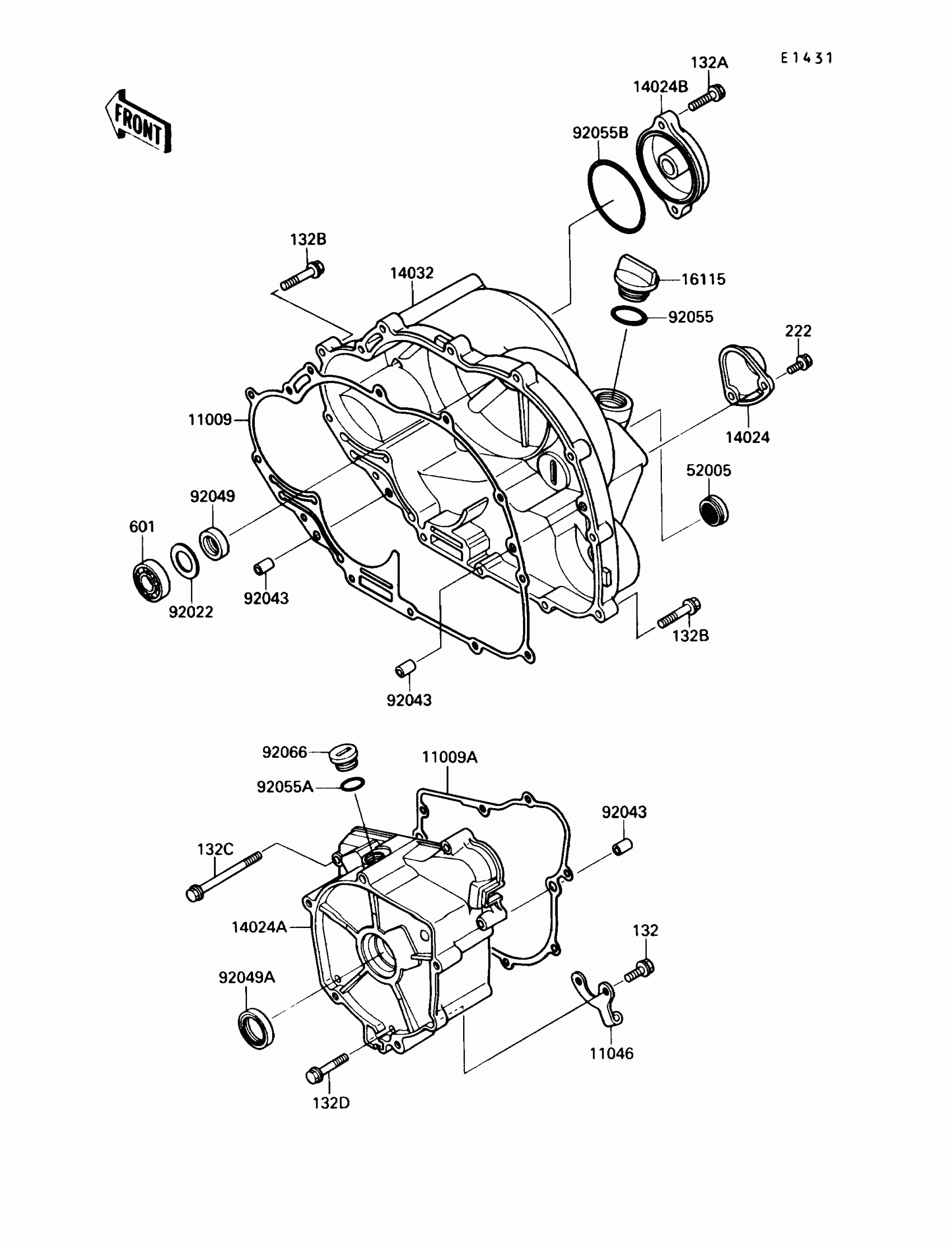

Kawasaki Bayou 220 Engine Cover Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132J0614

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132C

BOLT-FLANGED-SMALL,6X35

132J0635

Unavailable

132D

BOLT-FLANGED-SMALL,6X70

132J0670

Unavailable

222

SCREW-CSK-RD-CROS

222C0512

Unavailable

601

BEARING-BALL,#6002

601A6002

$8.84

11009

GASKET,CLUTCH COVER

11009-1671

Unavailable

11009A

GASKET,GENERATOR

11009-1672

Unavailable

11046

BRACKET

11045-1828

$8.58

14024

COVER

14024-1486

$13.17

14024A

COVER,GENERATOR

14024-1487

Unavailable

14024B

COVER,OIL FILTER

14024-1488

$40.06

14032

COVER-CLUTCH

14032-1236

Unavailable

16115

CAP-OIL FILLER

16115-1009

$10.86

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92022

WASHER,21X31.5X1.0

92022-1624

$4.42

92043

PIN,6.2X8X14

92043-1263

$0.46

92049

SEAL-OIL

92049-1293

$7.56

92049A

SEAL-OIL,TC25356

92049-1317

$10.61

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,20X2

92055-1146

$6.55

92055B

RING-O,63.6X2.4

92055-1433

$7.71

92066

PLUG,COVER

92066-1163

$11.20
