1990 Kawasaki 454 LTD Oil Pump/oil Filter Diagram

← All diagrams

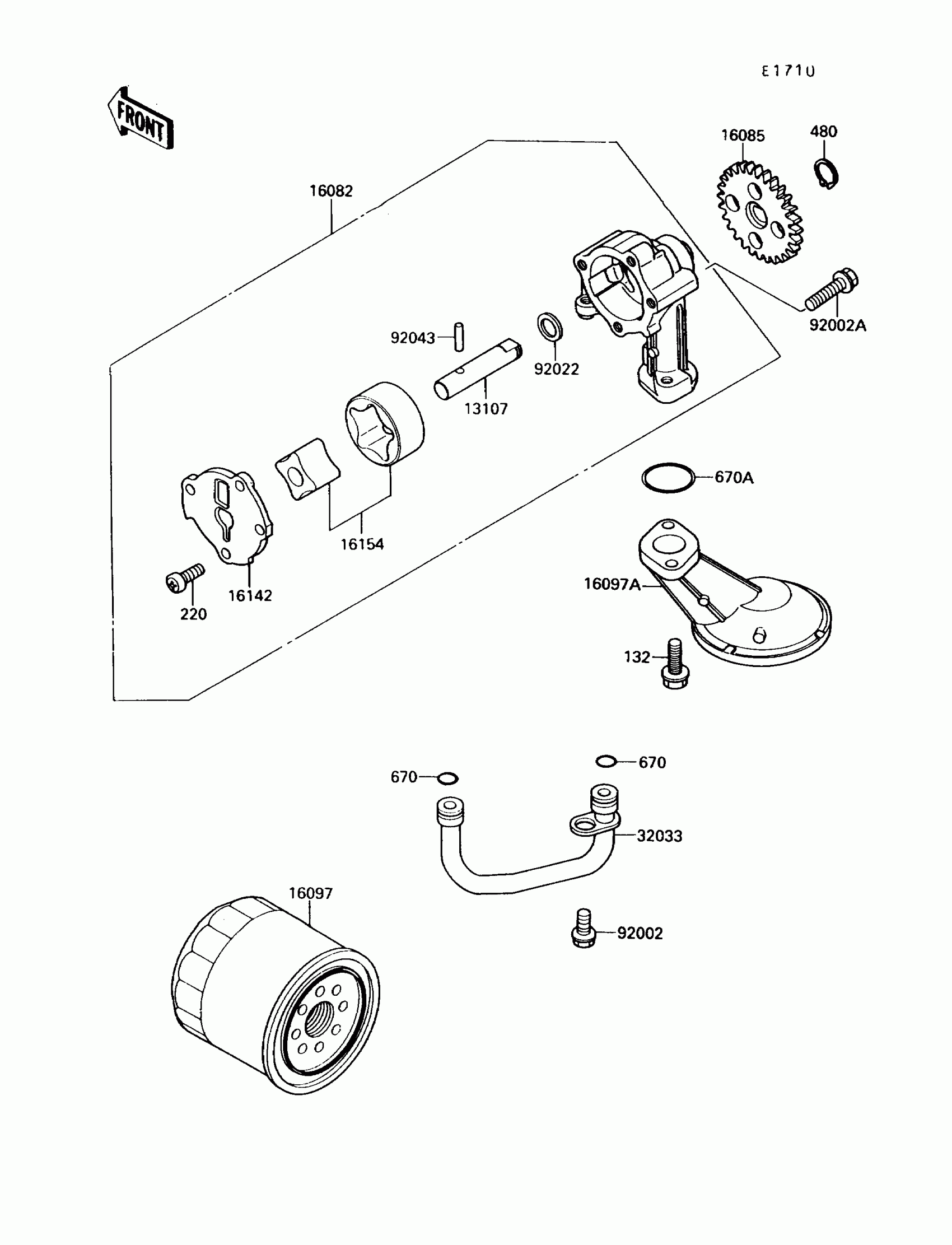

Find the part on the Oil Pump/oil Filter diagram for your 1990 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Kawasaki 454 LTD Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,OIL PUMP

13107-1202

1
Out of stock

16082

PUMP-ASSY-OIL

16082-1085

1
Out of stock

16085

GEAR,OIL PUMP

16085-1143

1
Out of stock

16097

FILTER-ASSY-OIL

16097-1054

1
Out of stock

16097A

FILTER-ASSY-OIL

16097-1056

1
Out of stock

16142

COVER-PUMP,OIL

16142-1077

1
Out of stock

16154

ROTOR-PUMP,OIL

16154-1066

1
Out of stock

32033

PIPE

32033-1540

1
Out of stock

92002

BOLT,6X12

92002-1572

1
Out of stock

92002A

BOLT,6X25

92002-1609

1
Out of stock

92022

WASHER,11.2X15X1

92022-311

1
Out of stock

92043

PIN,DOWEL,4X15.8

92043-1054

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

480

CIRCLIP-TYPE-C,11MM

480J1100

1
Out of stock

670

O RING,10MM

670B2010

1
Out of stock

670A

O RING,22MM

670D2022

1
Out of stock
