1989 Kawasaki 454 LTD Crankcase Diagram

← All diagrams

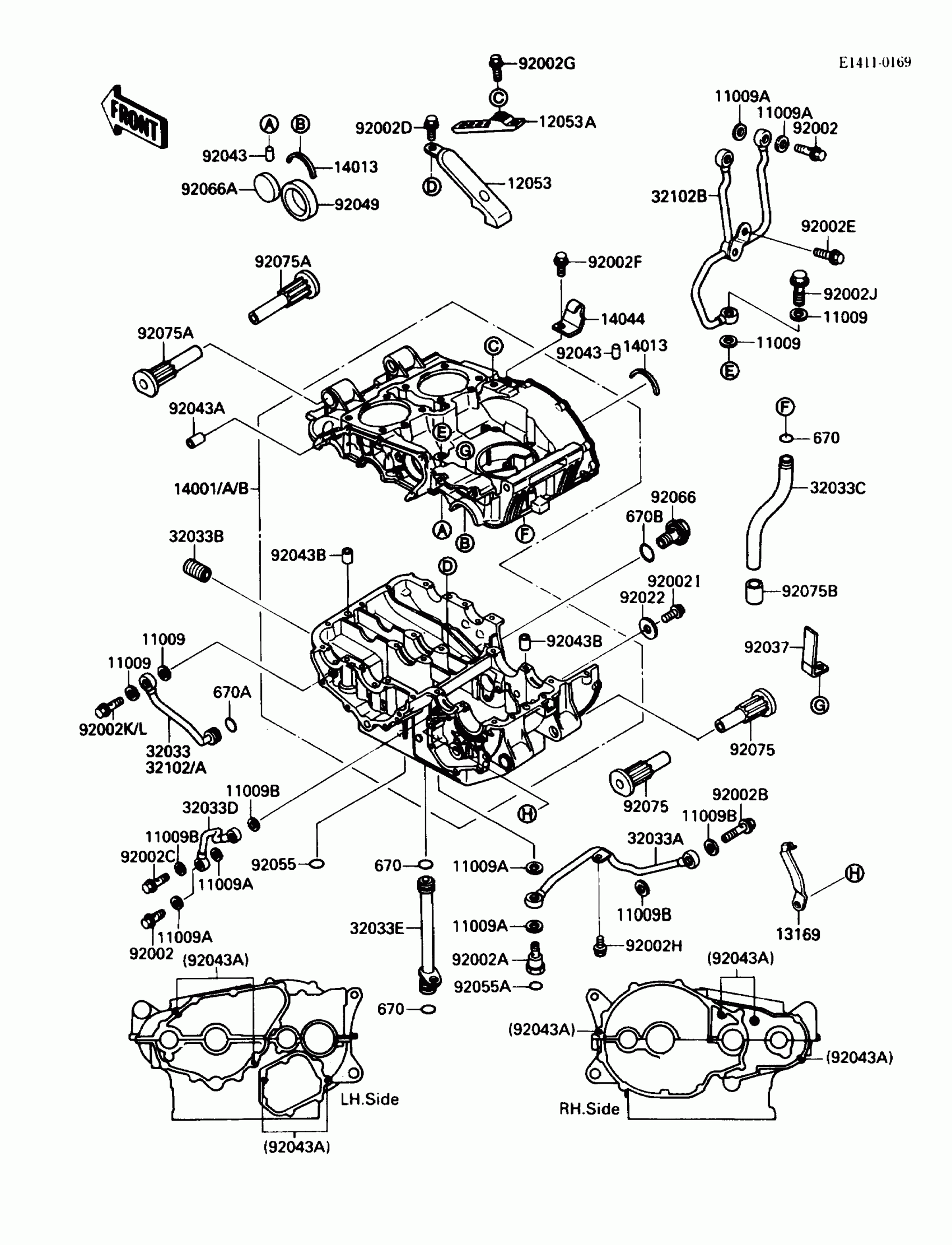

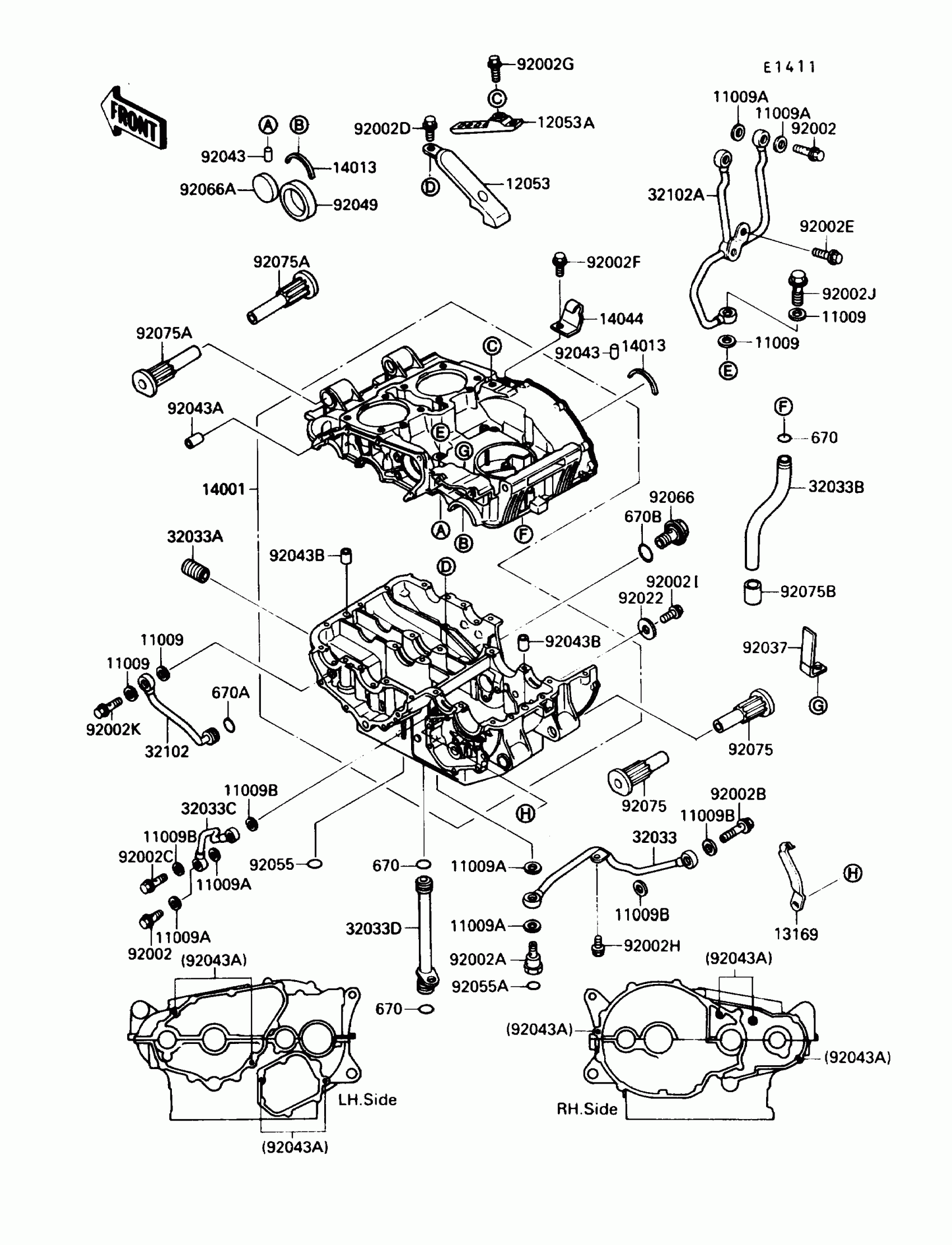

Find the part on the Crankcase diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki 454 LTD Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10X14.5X1.5

11009-1105

1

$5.15

In stock

11009A

GASKET,8.2X14X1.0

11009-1344

1

$2.44

In stock

11009B

GASKET

92065-096

1

$3.69

In stock

12053

GUIDE-CHAIN,CRANKCASE,LWR

12053-1147

1
Out of stock

12053A

GUIDE-CHAIN,CRANKCASE,UPP

12053-1148

1
Out of stock

13169

PLATE

13169-1896

1
Out of stock

14001A

SET-CRANKCASE

14001-5230

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14044

HOLDER-CABLE

14044-1055

1

$9.07

In stock

32033A

PIPE

32033-1530

1

$60.49

In stock

32033B

PIPE,OIL FILTER

32033-1535

1

$10.27

In stock

32033C

PIPE

32033-1538

1

$39.62

In stock

32033D

PIPE

32033-1539

1

$47.02

In stock

32033E

PIPE

32033-1574

1

$62.23

In stock

32102

PIPE

32102-1541

1

$44.48

In stock

32102B

PIPE

32102-1710

1

$123.70

In stock

92002

BOLT,8X20

92002-1429

1

$10.63

In stock

92002A

BOLT

92002-1467

1

$31.44

In stock

92002B

BOLT,BANJO,6X28

92002-1471

1

$18.44

In stock

92002C

BOLT,BANJO,6X19

92002-1473

1

$12.47

In stock

92002D

BOLT,6X12

92002-1563

1
Out of stock

92002E

BOLT,6X12

92002-1569

1
Out of stock

92002F

BOLT,6X16

92002-1570

1
Out of stock

92002G

BOLT,6X16

92002-1571

1
Out of stock

92002H

BOLT,6X12

92002-1572

1
Out of stock

92002I

BOLT,6X14

92002-1656

1
Out of stock

92002J

BOLT,OIL,L=23

92002-1809

1
Out of stock

92002K

BOLT,BANJO,10X30

92002-1941

1
Out of stock

92022

WASHER

42046-008

1

$3.92

In stock

92037

CLAMP

92037-1679

1

$4.37

In stock

92043

PIN,DOWEL,6X16

92042-016

1

$3.97

In stock

92043A

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92043B

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92049

SEAL-OIL,AE2343F0

92049-1070

1
Out of stock

92055

RING-O,OD=18

92055-048

1

$3.81

In stock

92055A

RING-O,OD=13

92055-074

1

$6.82

In stock

92066

PLUG,MAIN GALLERY

92066-1205

1

$27.65

In stock

92066A

PLUG,RCA 345.5

92066-1208

1

$12.64

In stock

92075

DAMPER,L=79.5

92075-1678

1

$53.39

In stock

92075A

DAMPER,L=93

92075-1679

1

$53.39

In stock

92075B

DAMPER

92075-1742

1

$5.37

In stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock

670A

O RING,10MM

670B2010

1

$1.31

In stock

670B

O RING,21MM

670B2021

1

$3.72

In stock
